Industrial control transformer, Type TF, 1 phase, 750VA, 240/416/480/600V primary, 99/120/130V secondary, 50/60Hz

TRFMR CONTROL 750VA MULTIPLE V

SQD9070TF750D50 9070TF750D50 785901069232
1489.39 / EACH
http://schema.org/OutOfStock

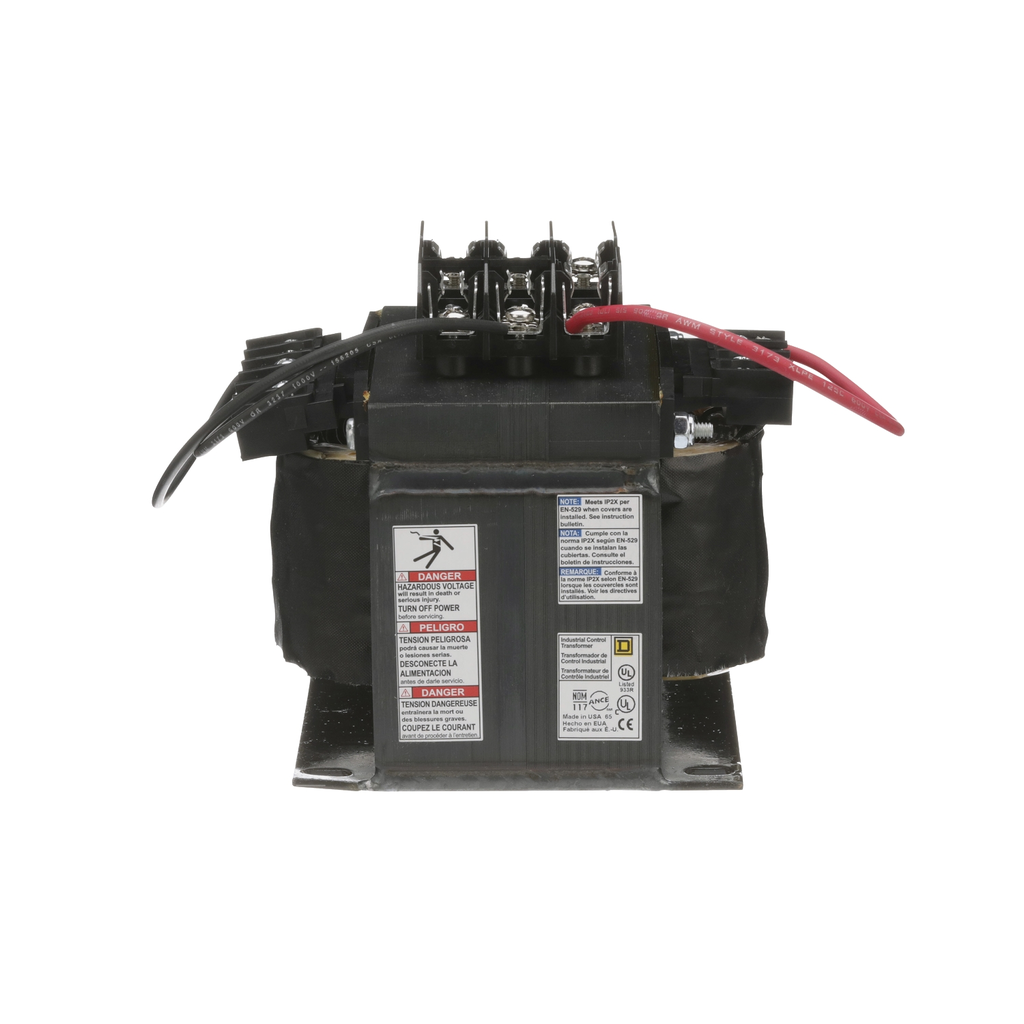

Mayer-DDS-Industrial control transformer, Type TF, 1 phase, 750VA, 240/416/480/600V primary, 99/120/130V secondary, 50/60Hz-2
  • Certifications: CSA File LR37055 Guide 184-N-90, UL Listed File E61239
  • Depth: 6.3 in
  • Fuse Type: 0.41 X 1.50 In CC Top
  • Height: 5.8 in
  • Material: Copper: Winding
  • Number of Phases: 1
  • Voltage: 208/360/416/520 V, 220/380/440/550 V, 230/400/460/575 V, 240/416/480/600 V, 85/100/110 V, 90/110/120 V, 95/115/125 V, 99/120/130 V
  • Warranty Length: 18 mth
  • Width: 5.25 in
QTY
  • Product Description
  • Specifications
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 750VA transformer designed for 240/416/480/600VAC primary with 99/120/130VAC secondary, as well as 230/400/460/575VAC to 95/115/125VAC, 220/380/440/550VAC to 90/110/120VAC, and 208/360/416/520VAC to 85/104/115VAC. It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
  • Environment
    • Product Certifications : CSA file LR37055 guide 184-N-90 || UL listed file E61239
    • Nema Degree Of Protection : not rated (open device)
    • Insulation Temperature : 180 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 5.8 in
    • Fuse Type : 0.41 x 1.50 in CC top
    • Temperature Rise : 115 °C
    • Material : copper: winding
    • Electrical Connection : screw clamp terminals
    • Rated Power In Va : 750 VA UL || 750 VA CSA || 750 VA NOM || 500 VA CE
    • Width : 5.25 in
    • Depth : 6.3 in
    • Product Compatibility : FSC23
    • Primary Voltage : 240/416/480/600 V 99/120/130 V || 230/400/460/575 V 95/115/125 V || 220/380/440/550 V 90/110/120 V || 208/360/416/520 V 85/100/110 V
    • Phase : 1 phase
  • Specifications
    • Range Of Product : TF
    • Product Or Component Type : Industrial Control Transformer
