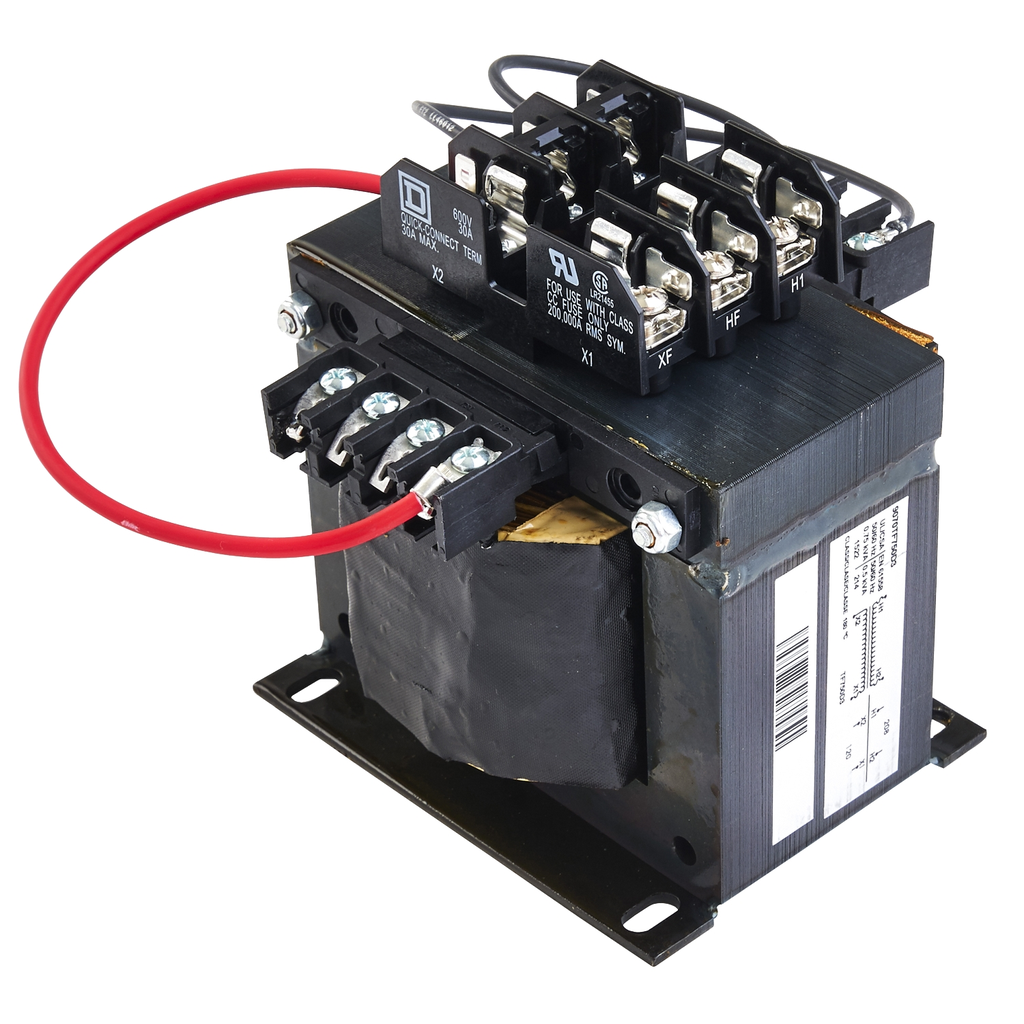

Industrial control transformer, Type TF, 1 phase, 750VA, 208V primary, 120V secondary, 50/60Hz

TRANSFORMER CONTROL 750VA 208V

SQD9070TF750D3 9070TF750D3 785901314516
1399.73 / EACH
http://schema.org/OutOfStock
Industrial control transformer, Type TF, 1 phase, 750VA, 208V primary, 120V secondary, 50/60Hz
  • Country of Origin: USA
  • Depth: 5.61 in
  • Fuse Type: 1.50 in
  • Height: 5.8 in
  • Primary Voltage: 120 V, 208 V
  • Temperature Rise: 115 °C
  • Warranty Length: 18 mth
  • Width: 5.25 in
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 750VA transformer designed for 208VAC primary with a 120VAC secondary. It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 750VA transformer designed for 208VAC primary with a 120VAC secondary. It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL listed file E61239 || CSA file LR37055 guide 184-N-90
    • Nema Degree Of Protection : not rated (open device)
    • Insulation Temperature : 180 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Height : 5.8 in
    • Fuse Type : 0.41 x 1.50 in CC top
    • Temperature Rise : 115 °C
    • Rated Power In Va : 750 VA UL || 750 VA CSA || 750 VA NOM || 500 VA CE
    • Phase : 1 phase
    • Material : copper: winding
    • Electrical Connection : screw clamp terminals
    • Width : 5.25 in
    • Depth : 5.61 in
    • Product Compatibility : FSC2
    • Primary Voltage : 208 V 120 V
  • Specifications
    • Country of Origin : United States
    • Width : 5.25 in
    • Height : 5.8 in
    • Range Of Product : TF
    • Product Or Component Type : Industrial Control Transformer
