We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel bui

• Primary Voltage
• 208/230/460 V 115 V
• Prop 65
• WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Material
• copper: winding
• Accessories
• 9070FSC2
• 9070FP1
• 9070FB3B
• 9070FB2B
• Rated Power In Va
• 500 VA UL
• 500 VA CSA
• 500 VA NOM
• 300 VA CE
• Fuse Type
• 0.41 x 1.50 in CC top
• Product Certifications
• UL listed file E61239
• CSA file LR37055 guide 184-N-90

• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time
• B2B Bullet Point 2 : Provides reliable power using voltage regulation
• B2B Bullet Point 3 : Protects against accidental shocks through the use of touch-safe terminals
• B2B Bullet Point 4 : Conforms to the electrical characteristics in the data sheet by the Underwriters Laboratories (UL)
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• ETIM 10 : EC002486
• Html Descr : TRANSFORMER CONTROL 500VA 208/230/460V-115V
• Manufacturer : Schneider Electric
• Device Type : Transformer - dry
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1905
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Electrical Connection : screw clamp terminals
• Insulation Temperature : 180 °C
• Package Weight Lbs : 8.391 kg
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : TF
• Returnability : Yes
• Sustainable Packaging : No
• Temperature Rise : 115 °C
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : TF
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=454657&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1308008EN
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : not rated (open device)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : FSC2
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico

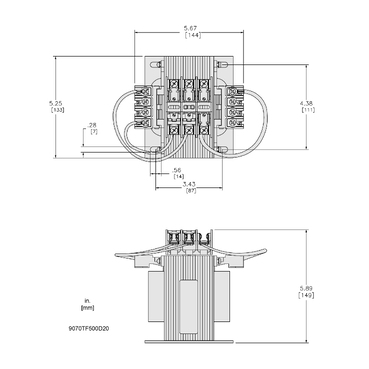

• Height : 5.8 in
• Width : 5.25 in
• Depth : 5.61 in
