SQUARE D

Transformer, Type TF, industrial control, 50VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise

TRFMR CONTROL 50VA 208/230/460

SQD9070TF50D20 9070TF50D20 785901039273
453.84 / EA
http://schema.org/OutOfStock
Mayer-DDS-Transformer, Type TF, industrial control, 50VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise-2
  • Country of Origin: USA
  • Temperature Rise: 55 °C
  • Warranty Length: 18 mth

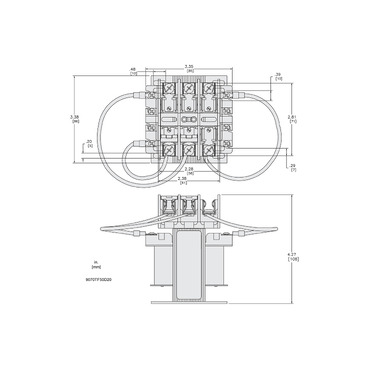

We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 50VA and is 1 phase. This transformer has a 208/230/460V primary voltage and 115V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 4.81 in (H), 3.38 in (W), 3.34 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1.
QTY
  • Product Description
  • Features
  • Specifications
We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 50VA and is 1 phase. This transformer has a 208/230/460V primary voltage and 115V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 4.81 in (H), 3.38 in (W), 3.34 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1.
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=5914&p_File_name=5914.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=5914&p_File_name=5914.dxf
  • Primary Voltage
    • 208/230/460 V 115 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Material
    • copper: winding
  • Accessories
    • 9070FP1
    • 9070FSC1
    • 9070FB3A
    • 9070FB2A
    • 9070SF41A
  • Rated Power In VA
    • 50 VA UL
    • 50 VA CSA
    • 50 VA NOM
    • 50 VA CE
  • Fuse Type
    • 0.41 x 1.50 in CC top
  • Important Information Attributes
    • B2B Bullet Point 1 : Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time
    • B2B Bullet Point 2 : Provides reliable power using voltage regulation
    • B2B Bullet Point 3 : Protects against accidental shocks through the use of touch-safe terminals
    • B2B Bullet Point 4 : Conforms to the electrical characteristics in the data sheet by UL
    • B2B Bullet Point 5 : .
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1905
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Energy Efficiency Optimized : False
    • Insulation Temperature : 105 °C
    • Package Weight Lbs : 1.973 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Rise : 55 °C
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1308008EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=454735&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
