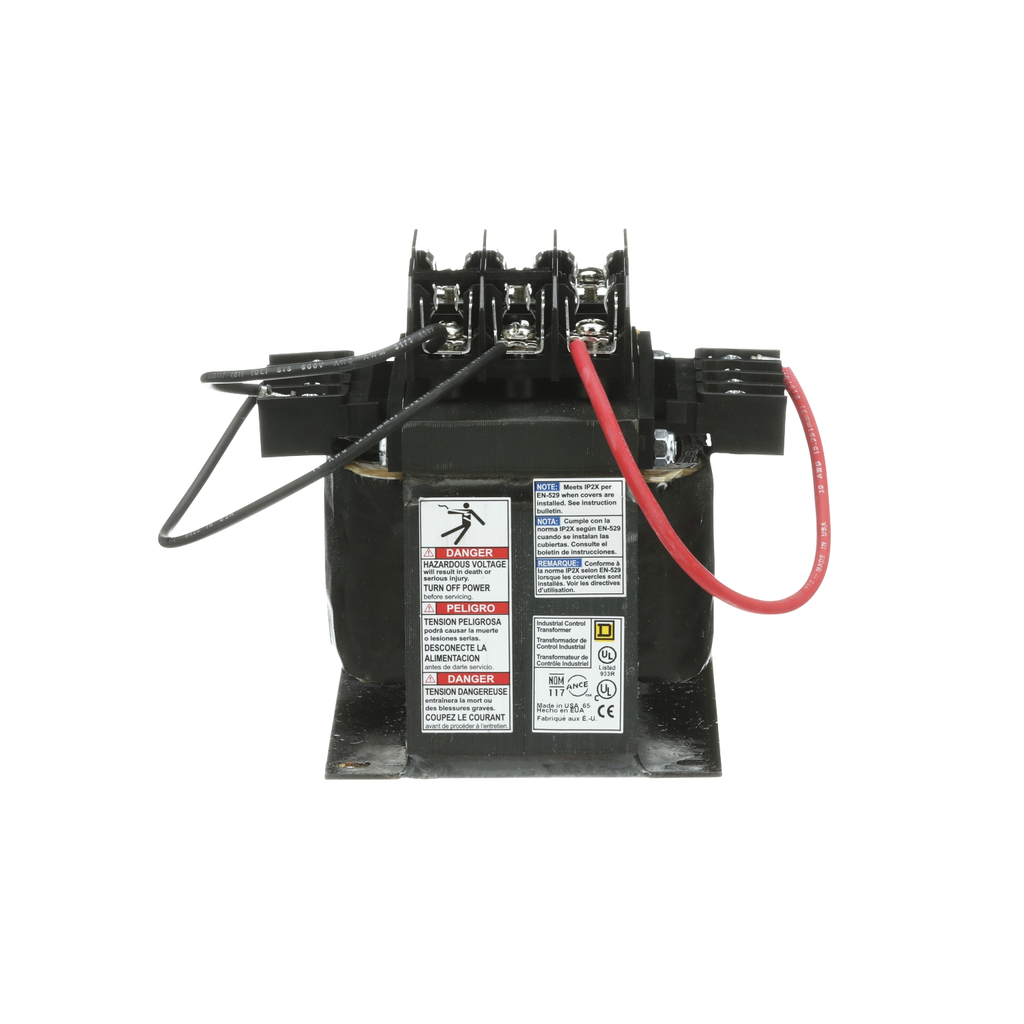

Transformer, Type TF, industrial control, 350VA, 1 phase, 208/230/460V primary, 115V secondary, 80C rise

TRFMR CONTROL 350VA 208/230/46

SQD9070TF350D20 9070TF350D20 785901398035
1114.32 / EA
http://schema.org/OutOfStock
Mayer-DDS-Transformer, Type TF, industrial control, 350VA, 1 phase, 208/230/460V primary, 115V secondary, 80C rise-2
  • Fuse Type: 1.50 in
  • Primary Voltage: 115 V, 208/230/460 V
  • Temperature Rise: 80 °C
  • Warranty Length: 18 mth
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 350VA transformer designed for 208/230/460VAC primary with a 115VAC secondary. It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 350VA transformer designed for 208/230/460VAC primary with a 115VAC secondary. It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In VA : 350 VA UL, 350 VA UL, 350 VA CSA, 350 VA CSA, 350 VA NOM, 350 VA NOM, 250 VA CE, 250 VA CE
  • Important Information Attributes
    • Fuse Type : 0.41 x 1.50 in CC top, 0.41 x 1.50 in CC top, 0.41 x 1.50 in CC top
    • Material : copper: winding, copper: winding
    • Primary Voltage : 208/230/460 V 115 V, 208/230/460 V 115 V
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Energy Efficiency Optimized : False
    • Insulation Temperature : 130 °C
    • Package Weight Lbs : 5.398 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
    • Returnability : No
    • Sustainable Packaging : No
    • Temperature Rise : 80 °C
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1308008EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • General Attributes
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
