Transformer, Type TF, industrial control, 300VA, 1 phase, 600V primary, 120V secondary, 80C rise

TRANSFORMER CONTROL 300VA 600V

SQD9070TF300D5 9070TF300D5 785901314448
811.12 / EA
http://schema.org/OutOfStock
Mayer-DDS-Transformer, Type TF, industrial control, 300VA, 1 phase, 600V primary, 120V secondary, 80C rise-2
  • Fuse Type: 38 mm
  • Primary Voltage: 110 V, 115 V, 120 V, 550 V, 575 V, 600 V
  • Warranty Length: 18 mth

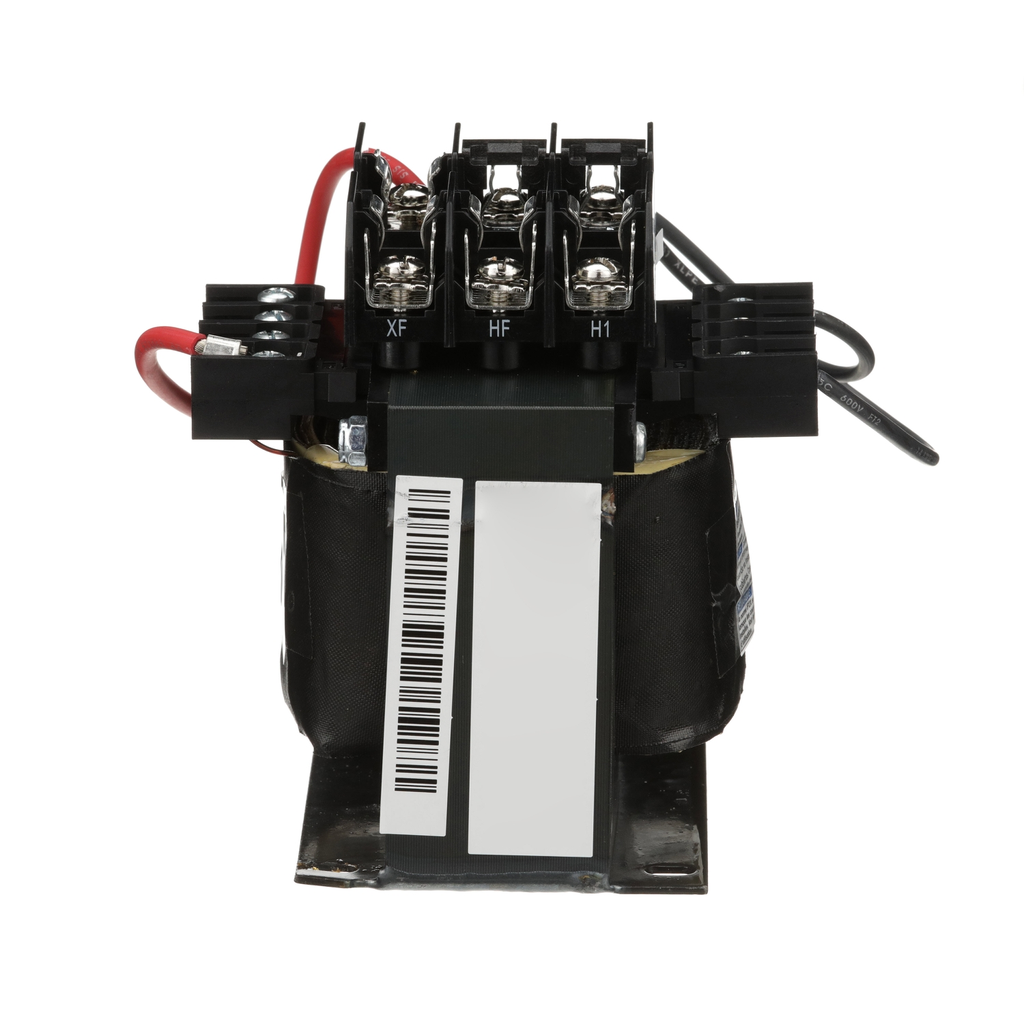

Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF transformers have the same footprint as the Type T. This design frees up space normally used for separate fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. This Industrial Control Transformer is 1 phase, and has a rated power of 300 VA. This transformer has a primary voltages such as 600 V and a secondary voltage of 120 V with a temperature rise of 80 °C. The dimensions for this product are 5.13 in (H), 4.5 in (W), 4.74 in (D). This product is compatable with FSC2. This product complys to UL, CSA & NOM standards.
QTY
  • Product Description
  • Features
  • Specifications
Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF transformers have the same footprint as the Type T. This design frees up space normally used for separate fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. This Industrial Control Transformer is 1 phase, and has a rated power of 300 VA. This transformer has a primary voltages such as 600 V and a secondary voltage of 120 V with a temperature rise of 80 °C. The dimensions for this product are 5.13 in (H), 4.5 in (W), 4.74 in (D). This product is compatable with FSC2. This product complys to UL, CSA & NOM standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In VA : 300 VA UL, 300 VA CSA, 300 VA NOM, 200 VA CE
  • Important Information Attributes
    • Primary Voltage : 600 V 120 V, 575 V 115 V, 550 V 110 V
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Energy Efficiency Optimized : False
    • Fuse Type : 10.3 x 38 mm CC top
    • Insulation Temperature : 130 °C
    • Material : copper: winding
    • Package Weight Lbs : 3.946 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Rise : 80 °C
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1308008EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • General Attributes
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
