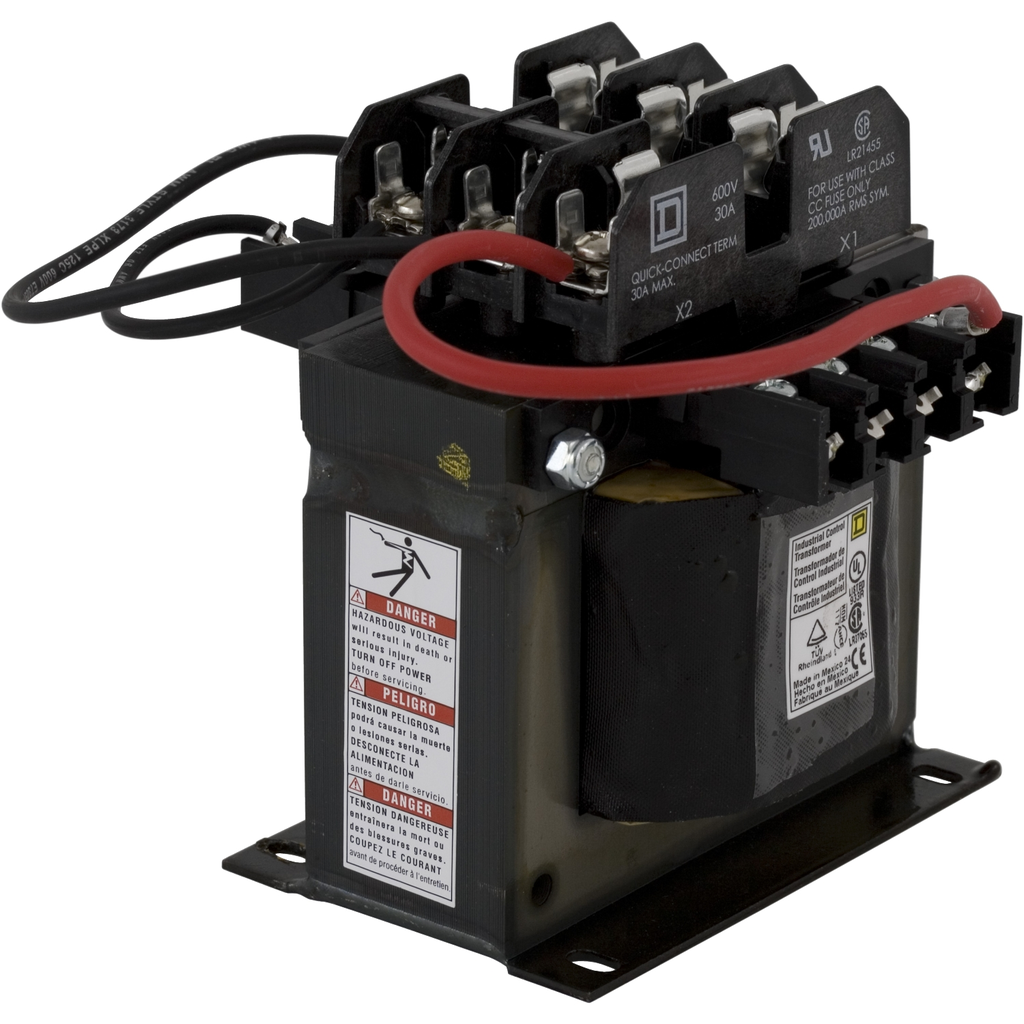

We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 300VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 5.13 in (H), 4.5 in (W), 4.74 in (D). This transformer has screw clamp terminals connections. T The material used for this product is copper used in the winding. This product has a compatability for FSC2.
- Environment
- Product Certifications : CSA file LR37055 guide 184-N-90 || UL listed file E61239
- Nema Degree Of Protection : not rated (open device)
- Insulation Temperature : 130 °C
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1308008EN
- Sustainable Offer Status : Green Premium product
- Pvc Free : Yes
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile : N/A
- Eu Rohs Directive : Compliant with Exemptions
- Complementary
- Height : 5.13 in
- Fuse Type : 0.41 x 1.50 in CC top
- Temperature Rise : 80 °C
- Rated Power In Va : 300 VA UL || 300 VA CSA || 300 VA NOM || 200 VA CE
- Phase : 1 phase
- Material : copper: winding
- Electrical Connection : screw clamp terminals
- Width : 4.5 in
- Depth : 4.74 in
- Product Compatibility : FSC2
- Primary Voltage : 240 x 480 V 120 V || 230 x 460 V 115 V || 220 x 440 V 110 V
- Specifications
- Range Of Product : TF
- Product Or Component Type : Industrial Control Transformer
