The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providi

• Primary Voltage
• 208/230/460 V 115 V
• Prop 65
• WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Material
• copper: winding
• Accessories
• 9070FSC2
• 9070FP1
• 9070FB3B
• 9070FB2B
• Rated Power In Va
• 300 VA UL
• 300 VA CSA
• 300 VA NOM
• 200 VA CE
• Fuse Type
• 0.41 x 1.50 in CC top
• Product Certifications
• CSA file LR37055 guide 184-N-90
• UL listed file E61239

• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Type TF's ability to handle high inrush current makes it reliable for contactors, starters, solenoids, and relays
• B2B Bullet Point 2 : A stacked fuse block maintains Type T's small footprint and features while providing overcurrent protection
• B2B Bullet Point 3 : MultiTap™ primary transformers allow flexibility to produce needed secondary outputs
• B2B Bullet Point 4 : This Type TF single phase 300VA transformer is designed for 208/230/460VAC primary with a 115VAC secondary
• B2B Bullet Point 5 : These transformers carry the cUL and UL labels
• B2B Bullet Point 6 : Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• ETIM 10 : EC002486
• Device Type : Transformer - dry
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1905
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Electrical Connection : screw clamp terminals
• Insulation Temperature : 130 °C
• Package Weight Lbs : 4.717 kg
• Phase : 1 phase
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : TF
• Returnability : No
• Sustainable Packaging : No
• Temperature Rise : 80 °C
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : TF
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=454555&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1308008EN
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : not rated (open device)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : FSC2
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States

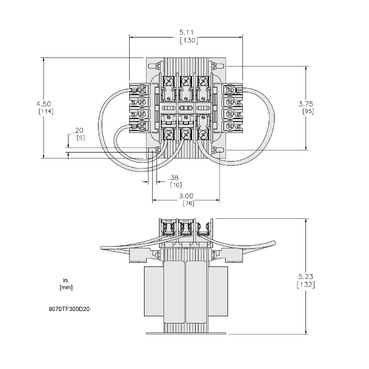

• Height : 5.13 in
• Width : 4.5 in
• Depth : 5.11 in
