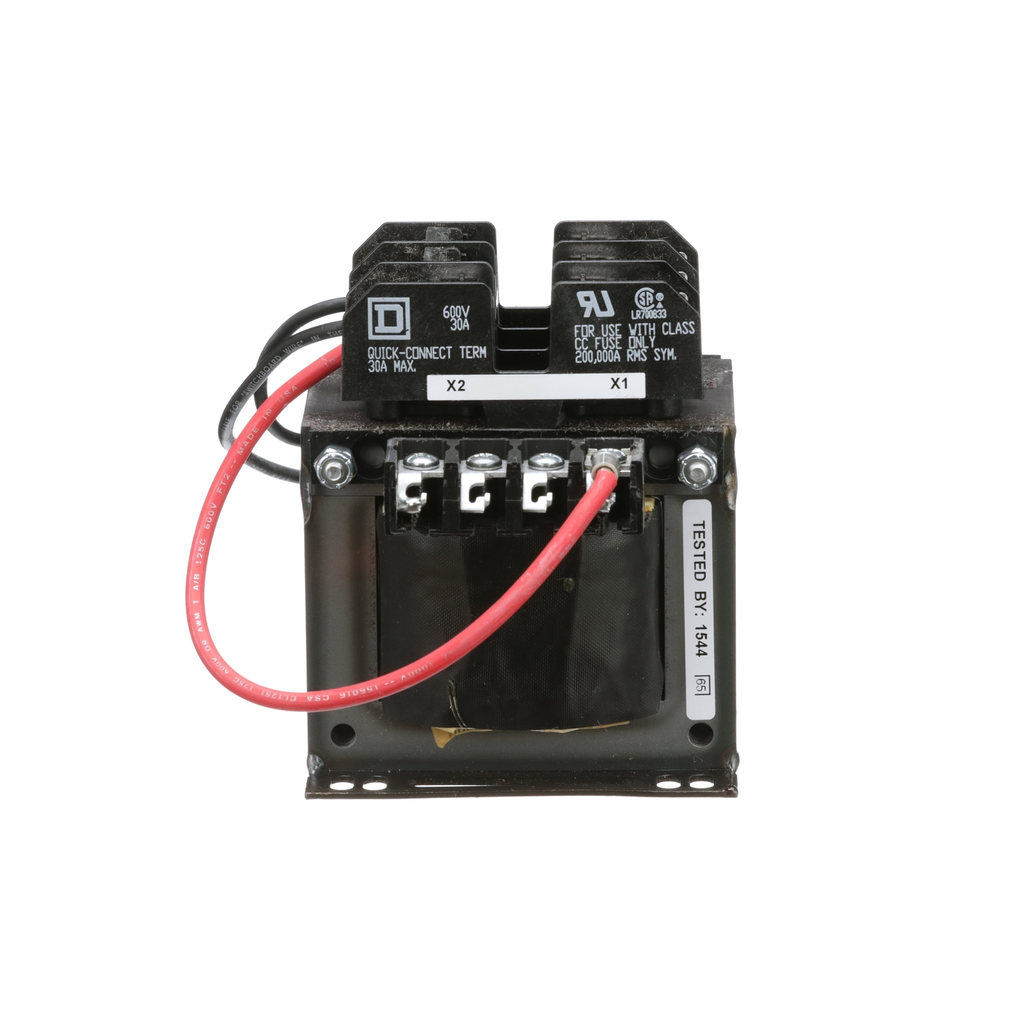

Transformer, Type TF, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise

TRFMR CONTROL 250VA 600V-120V

SQD9070TF250D5 9070TF250D5 785901307068
1084.14 / EA
http://schema.org/OutOfStock
Mayer-DDS-Transformer, Type TF, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise-2
  • Country of Origin: USA
  • Temperature Rise: 80 °C
  • Warranty Length: 18 mth
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 250VA transformer designed for 600VAC primary with a 120VAC secondary. (The unit also supports 575VAC to 115VAC and 550VAC to 110VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 250VA transformer designed for 600VAC primary with a 120VAC secondary. (The unit also supports 575VAC to 115VAC and 550VAC to 110VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=5928&p_File_name=5928.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=5928&p_File_name=5928.dxf
  • Primary Voltage
    • 600 V 120 V
    • 575 V 115 V
    • 550 V 110 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Material
    • copper: winding
  • Accessories
    • 9070FSC2
    • 9070FP1
    • 9070FB3B
    • 9070FB2B
  • Rated Power In VA
    • 250 VA UL
    • 250 VA CSA
    • 250 VA NOM
    • 160 VA CE
  • Fuse Type
    • 0.41 x 1.50 in CC top
  • Important Information Attributes
    • B2B Bullet Point 1 : Type TF's ability to handle high inrush current makes it reliable for contactors, starters, solenoids, and relays
    • B2B Bullet Point 2 : A stacked fuse block maintains Type T's small footprint and features while providing overcurrent protection
    • B2B Bullet Point 3 : This Type TF single phase 250VA transformer is designed for 600VAC primary with a 120VAC secondary
    • B2B Bullet Point 4 : These transformers carry the cUL and UL labels
    • B2B Bullet Point 5 : Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1905
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Energy Efficiency Optimized : False
    • Insulation Temperature : 130 °C
    • Package Weight Lbs : 3.493 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Returnability : No
    • Sustainable Packaging : No
    • Temperature Rise : 80 °C
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1308008EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=454527&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • Specifications
    • Country of Origin : United States
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
