Industrial control transformer, Type TF, 1 phase, 250VA, 240x480V primary, 120V secondary, 50/60Hz

250VA CONTROL TRANSFOMER

SQD9070TF250D1 9070TF250D1 785901904861
413.59 / EACH
http://schema.org/OutOfStock
  • Certifications: CSA File LR37055 Guide 184-N-90, UL Listed File E61239

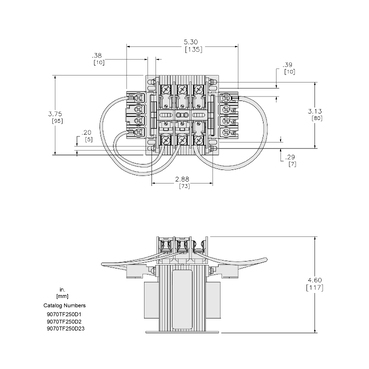

  • Depth: 5.3 in
  • Fuse Type: 0.41 X 1.50 In CC Top
  • Height: 4.5 in
  • Material: Copper: Winding
  • Number of Phases: 1
  • Voltage: 110 V, 115 V, 120 V, 440 V, 460 V, 480 V
  • Warranty Length: 18 mth
  • Width: 3.75 in
Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. They are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This industrial control transformer has a power rating, of 250VA and is 1 phase (UL). With a primary voltage of 240 x 480V and a secondary voltage of 120V. This transformer complies to UL, CSA, CE standards. The fuse type for this transformer is CC with a fuse size of 0.41 x 1.50 in and will be mounted on the top of the unit. The temperature rise is rated at 80 °C. Dimensions for the unit are 4.5 in (H)3.75 in (W)5.3 in (D) The winding material is copper. This design frees up space normally used for separate fuse blocks
QTY
  • Product Description
  • Specifications
Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. They are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This industrial control transformer has a power rating, of 250VA and is 1 phase (UL). With a primary voltage of 240 x 480V and a secondary voltage of 120V. This transformer complies to UL, CSA, CE standards. The fuse type for this transformer is CC with a fuse size of 0.41 x 1.50 in and will be mounted on the top of the unit. The temperature rise is rated at 80 °C. Dimensions for the unit are 4.5 in (H)3.75 in (W)5.3 in (D) The winding material is copper. This design frees up space normally used for separate fuse blocks
  • Environment
    • Product Certifications : CSA file LR37055 guide 184-N-90 || UL listed file E61239
    • Nema Degree Of Protection : not rated (open device)
    • Insulation Temperature : 130 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 4.5 in
    • Fuse Type : 0.41 x 1.50 in CC top
    • Temperature Rise : 80 °C
    • Rated Power In Va : 250 VA UL || 250 VA CSA || 250 VA NOM || 160 VA CE
    • Phase : 1 phase
    • Material : copper: winding
    • Electrical Connection : screw clamp terminals
    • Width : 3.75 in
    • Depth : 5.3 in
    • Product Compatibility : FSC2
    • Primary Voltage : 240 x 480 V 120 V || 230 x 460 V 115 V || 220 x 440 V 110 V
  • Specifications
    • Range Of Product : TF
    • Product Or Component Type : Industrial Control Transformer
