Industrial control transformer, Type TF, 1 phase, 200VA, 600V primary, 120V secondary, 50/60Hz

TRFMR CONTROL 200VA 600V-120V

SQD9070TF200D5 9070TF200D5 785901414308
493.07 / EA
http://schema.org/OutOfStock

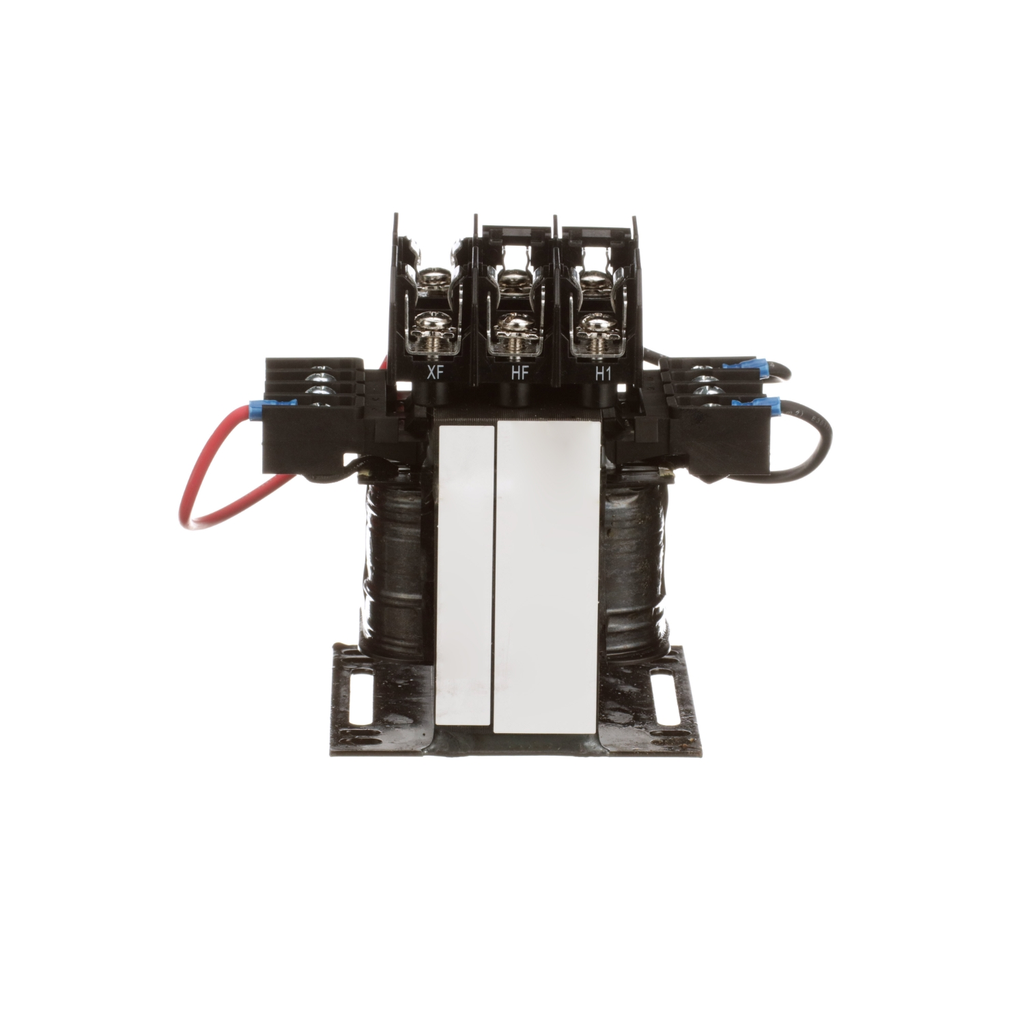

Mayer-DDS-Industrial control transformer, Type TF, 1 phase, 200VA, 600V primary, 120V secondary, 50/60Hz-1
  • Depth: 3.59 in
  • Fuse Type: 38 mm
  • Primary Voltage: 110 V, 115 V, 120 V, 550 V, 575 V, 600 V
  • Temperature Rise: 80 °C
  • Warranty Length: 18 mth
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. They have been verified to adhere to the datasheet by the Underwriters Laboratories (UL).
QTY
  • Product Description
  • Features
  • Specifications
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. They have been verified to adhere to the datasheet by the Underwriters Laboratories (UL).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=5925&p_File_name=5925.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=5925&p_File_name=5925.dxf
  • Conformance Attributes
    • Product Certifications : CSA, UL Listed
  • Complementary Attributes
    • Rated Power In Va : 200 VA UL, 200 VA CSA, 200 VA NOM, 200 VA CE
  • Important Information Attributes
    • Primary Voltage : 600 V 120 V, 575 V 115 V, 550 V 110 V
    • Medium Desc : Industrial control transformer, Type TF, 1 phase, 200VA, 600V primary, 120V secondary, 50/60Hz
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : In
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Electrical Connection : screw clamp terminals
    • Energy Efficiency Optimized : False
    • Fuse Type : 10.3 x 38 mm CC top
    • Insulation Temperature : 130 °C
    • Material : copper: winding
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Rise : 80 °C
    • Pep Code : ENVPEP1308008EN
    • Height Nominal : 4.5 in
    • Width Nominal : 3.75 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : not rated (open device)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : FSC1
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
  • ETIM
    • ETIM 8 : EC002486
    • ETIM 9 : EC002486
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 3.59 in
