Industrial control transformer, Type TF, 1 phase, 1500VA, 208V primary, 120V secondary, 50/60Hz

TRFMR CONTROL FUSED 1500VA 208

SQD9070TF1500D3 9070TF1500D3 785901142218
2143.33 / EA
http://schema.org/OutOfStock

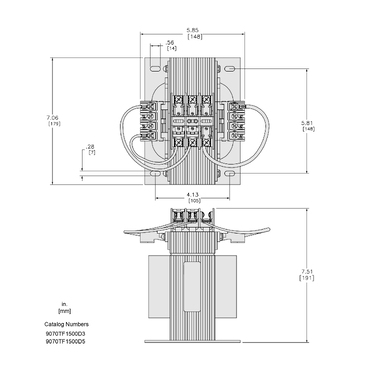

Mayer-DDS-Industrial control transformer, Type TF, 1 phase, 1500VA, 208V primary, 120V secondary, 50/60Hz-1
  • Country of Origin: USA
  • Depth: 5.92 in
  • Fuse Type: 1.50 in
  • Primary Voltage: 120 V, 208 V
  • Temperature Rise: 115 °C
  • Warranty Length: 18 mth
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. They have been verified to adhere to the datasheet by the Underwriters Laboratories (UL).
QTY
  • Product Description
  • Features
  • Specifications
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. They have been verified to adhere to the datasheet by the Underwriters Laboratories (UL).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In Va : 1500 VA UL, 1500 VA CSA, 1500 VA NOM, 1000 VA CE
  • Important Information Attributes
    • Certificate Agency : UL listed file E61239, CSA file LR37055 guide 184-N-90
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1905
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Electrical Connection : screw clamp terminals
    • Energy Efficiency Optimized : False
    • Fuse Type : 0.41 x 1.50 in CC top
    • Insulation Temperature : 180 °C
    • Material : copper: winding
    • Phase : 1 phase
    • Primary Voltage : 208 V 120 V
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
    • Returnability : No
    • Sustainable Packaging : No
    • Temperature Rise : 115 °C
    • Warranty In Months : 18
    • Pep Code : ENVPEP1308008EN
    • Offer Owner Code : 190788
    • Pn : 1
    • Height Nominal : 7.46 in
    • Width Nominal : 7.06 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : not rated (open device)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : FSC2
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
  • ETIM
    • ETIM 8 : EC002486
    • ETIM 9 : EC002486
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Depth : 5.92 in
