Transformer, Type TF, industrial control, 150VA, 1 phase, 600V primary, 120V secondary, 55C rise

TRANSFORMER CONTROL 150VA 600V

SQD9070TF150D5 9070TF150D5 785901039259
469.15 / EA
http://schema.org/OutOfStock

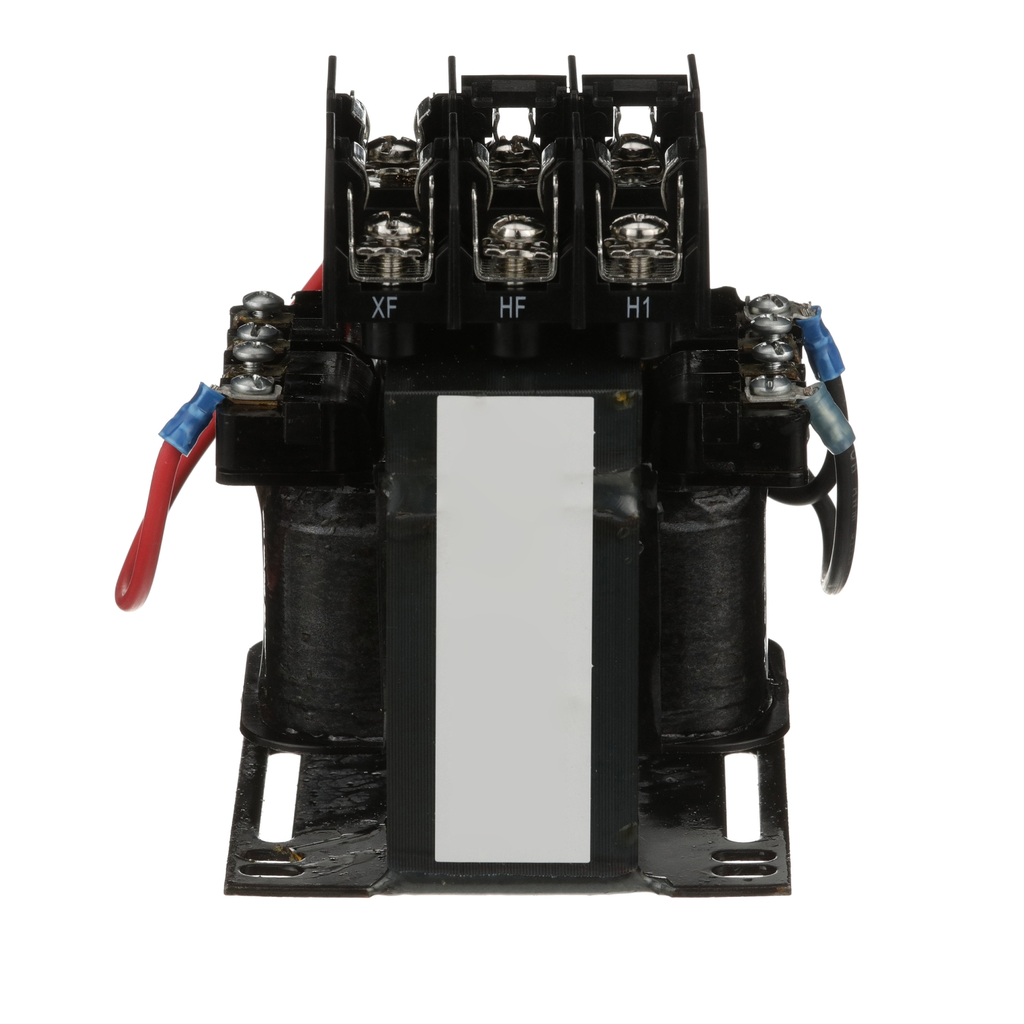

Mayer-DDS-Transformer, Type TF, industrial control, 150VA, 1 phase, 600V primary, 120V secondary, 55C rise-1
  • Country of Origin: Mexico
  • Depth: 3.59 in
  • Fuse Type: 1.50 in
  • Primary Voltage: 110 V, 115 V, 120 V, 550 V, 575 V, 600 V
  • Temperature Rise: 55 °C
  • Warranty Length: 18 mth
Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF transformers have the same footprint as the Type T. This design frees up space normally used for separate fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. This Industrial Control Transformer is 1 phase, and has a rated power of 150 VA. This transformer has a primary voltages such as 600 V and a secondary voltage of 120 V with a temperature rise of 55 °C. The dimensions for this product are 4.55 in (H), 3.75 in (W), 3.59 in (D). This product is compatable with . This product complys to UL, CSA & NOM standards.
QTY
  • Product Description
  • Features
  • Specifications
Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF transformers have the same footprint as the Type T. This design frees up space normally used for separate fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. This Industrial Control Transformer is 1 phase, and has a rated power of 150 VA. This transformer has a primary voltages such as 600 V and a secondary voltage of 120 V with a temperature rise of 55 °C. The dimensions for this product are 4.55 in (H), 3.75 in (W), 3.59 in (D). This product is compatable with . This product complys to UL, CSA & NOM standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In Va : 150 VA UL, 150 VA CSA, 150 VA NOM, 150 VA CE
  • Important Information Attributes
    • Primary Voltage : 600 V 120 V, 575 V 115 V, 550 V 110 V
    • Certificate Agency : CE, CSA file LR37055 guide 184-N-90, UL listed file E61239
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Weee Scope : In
    • Weee Product Category : 4
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1905
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Energy Efficiency Optimized : False
    • Fuse Type : 0.41 x 1.50 in CC top
    • Insulation Temperature : 105 °C
    • Material : copper: winding
    • Product Availability : Stock - Normally stocked in distribution facility
    • Range Of Product : TF
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Rise : 55 °C
    • Warranty In Months : 18
    • Pep Code : ENVPEP1308008EN
    • Offer Owner Code : 190788
    • Pn : 1
    • Height Nominal : 4.55 in
    • Width Nominal : 3.75 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • General Attributes
    • Range Of Product : TF
  • ETIM
    • ETIM 8 : EC002486
    • ETIM 9 : EC002486
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Depth : 3.59 in
