Transformer, Type TF, industrial control, 150VA, 1 phase, 208V primary, 120V secondary, 55C rise

TRANSFORMER CONTROL 150VA 208V

SQD9070TF150D3 9070TF150D3 785901905783
465.05 / EA
http://schema.org/OutOfStock
Mayer-DDS-Transformer, Type TF, industrial control, 150VA, 1 phase, 208V primary, 120V secondary, 55C rise-2
  • Fuse Type: 1.50 in
  • Primary Voltage: 120 V, 208 V
  • Temperature Rise: 55 °C
  • Warranty Length: 18 mth

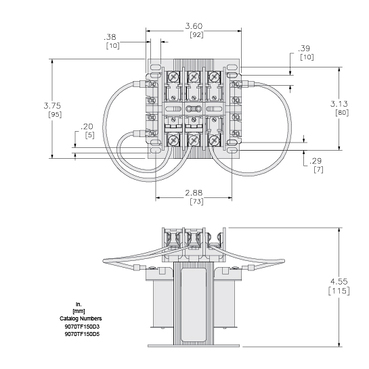

Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 150VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 3.2 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
QTY
  • Product Description
  • Features
  • Specifications
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 150VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 3.2 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In VA : 150 VA UL, 150 VA UL, 150 VA CSA, 150 VA CSA, 150 VA NOM, 150 VA NOM, 150 VA CE, 150 VA CE
  • Important Information Attributes
    • Fuse Type : 0.41 x 1.50 in CC top, 0.41 x 1.50 in CC top, 0.41 x 1.50 in CC top
    • Material : copper: winding, copper: winding
    • Primary Voltage : 208 V 120 V, 208 V 120 V
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : TRANSFORMER CONTROL 150VA 208V-120VPower Rating : 150 VAPrimary Voltage : 208 VSecondary Voltage : 120 VPhase : 1 phasePower Rating : 150 VAPrimary to Secondary Voltage : 208 V : 120 VType : TF
    • Manufacturer : Schneider Electric
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Energy Efficiency Optimized : False
    • Insulation Temperature : 105 °C
    • Package Weight Lbs : 2.817 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Rise : 55 °C
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1308008EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • General Attributes
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
