SQUARE D

Industrial control transformer, Type TF, 1 phase, 100VA, 600V primary, 120V secondary, 50/60Hz

Industrial control transformer, Type TF, 1 phase, 100VA, 600V primary, 120V secondary, 50/60Hz

SQD9070TF100D5 9070TF100D5 785901736790
291.39 / EACH
http://schema.org/OutOfStock
  • Certifications: CSA File LR37055 Guide 184-N-90, UL Listed File E61239

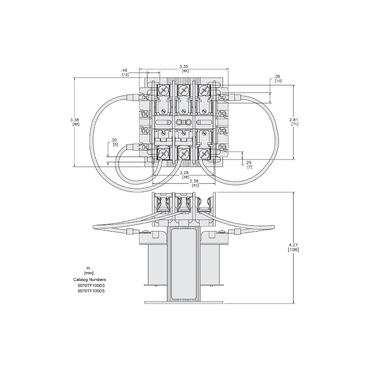

  • Depth: 3.34 in
  • Fuse Type: 0.41 X 1.50 In CC Top
  • Height: 4.25 in
  • Material: Copper: Winding
  • Voltage: 110 V, 115 V, 120 V, 550 V, 575 V, 600 V
  • Warranty Length: 18 mth
  • Width: 3.38 in
Schneider-Electric offers both Type TF and EOF transformers with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type Tand Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 100VA and is 1 phase. This transformer has a 208/360/416/520V primary voltage and 85/104/115V secondary voltage This transformer complies to UL, CE & CSA standards Dimensions for this product are 4.5 in (H),3.75 in (W),4.7 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding This product has a compatability for FSC23.
QTY
  • Product Description
  • Specifications
Schneider-Electric offers both Type TF and EOF transformers with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type Tand Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 100VA and is 1 phase. This transformer has a 208/360/416/520V primary voltage and 85/104/115V secondary voltage This transformer complies to UL, CE & CSA standards Dimensions for this product are 4.5 in (H),3.75 in (W),4.7 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding This product has a compatability for FSC23.
  • Environment
    • Product Certifications : CSA file LR37055 guide 184-N-90 || UL listed file E61239
    • Insulation Temperature : 105 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 4.25 in
    • Fuse Type : 0.41 x 1.50 in CC top
    • Temperature Rise : 55 °C
    • Rated Power In Va : 100 VA UL || 100 VA CSA || 100 VA NOM || 100 VA CE
    • Material : copper: winding
    • Width : 3.38 in
    • Depth : 3.34 in
    • Primary Voltage : 600 V 120 V || 575 V 115 V || 550 V 110 V
  • Specifications
    • Range Of Product : TF
