Transformer, Type TF, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise

TRFMR CONTROL 100VA 208/230/46

SQD9070TF100D20 9070TF100D20 785901905240
483.92 / EA
http://schema.org/OutOfStock
Mayer-DDS-Transformer, Type TF, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise-1
  • Depth: 3.59 in
  • Fuse Type: 1.50 in
  • Primary Voltage: 115 V, 208/230/460 V
  • Temperature Rise: 55 °C
  • Warranty Length: 18 mth
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 100VA and is single phase. It has a 208/230/460 V primary voltage and 115 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 4.5 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
QTY
  • Product Description
  • Features
  • Specifications
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 100VA and is single phase. It has a 208/230/460 V primary voltage and 115 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 4.5 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets

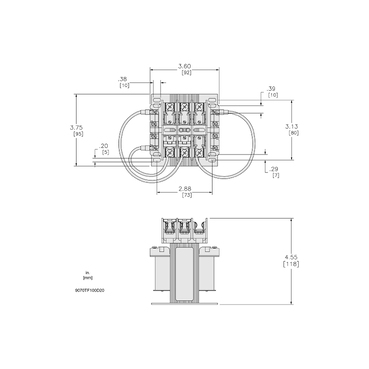

    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=5920&p_File_name=5920.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=5920&p_File_name=5920.dxf
  • Conformance Attributes
    • Product Certifications : UL listed file E61239, CSA file LR37055 guide 184-N-90
  • Complementary Attributes
    • Rated Power In Va : 100 VA UL, 100 VA CSA, 100 VA NOM, 100 VA CE
  • Important Information Attributes
    • Medium Desc : Transformer, Type TF, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Html Descr : TRANSFORMER CONTROL 100VA 208/230/460V-115VProduct or component type : Industrial Control TransformerRange of product : TFPhase : 1 phaseFuse type : 0.41 x 1.50 in CC topTemperature rise : 55 °CElectrical connection : Screw clamp terminalsMaterial : Copper winding
    • Return Indicator : Y
    • Stocking Flag : Y
    • Manufacturer : Schneider Electric
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : In
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Electrical Connection : screw clamp terminals
    • Energy Efficiency Optimized : False
    • Fuse Type : 0.41 x 1.50 in CC top
    • Insulation Temperature : 105 °C
    • Material : copper: winding
    • Phase : 1 phase
    • Primary Voltage : 208/230/460 V 115 V
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Rise : 55 °C
    • Pep Code : ENVPEP1308008EN
    • Height Nominal : 4.5 in
    • Width Nominal : 3.75 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : not rated (open device)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : FSC1
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : TF
  • ETIM
    • ETIM 8 : EC002486
    • ETIM 9 : EC002486
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 3.59 in
