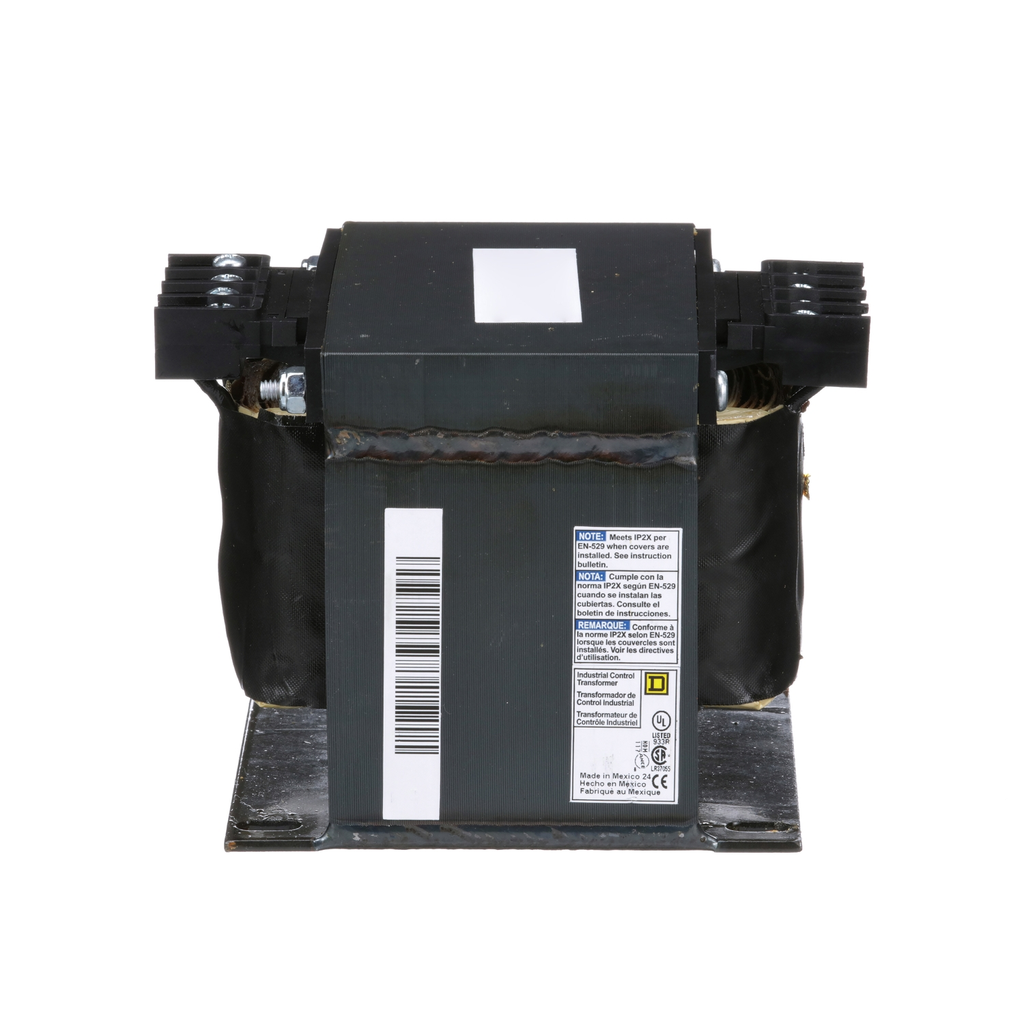

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured u

• Primary Voltage
• 240/480/600 V 100/120 V
• 230/460/575 V 95/115 V
• 220/440/550 V 90/110 V
• Prop 65
• WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Material
• copper: winding
• Accessories
• 9070FSC2
• 9070FP1
• 9070FB3B
• 9070FB2B
• Rated Power In Va
• 750 VA UL
• 750 VA CSA
• 750 VA NOM
• 500 VA CE
• Product Certifications
• UL listed file E61239
• CSA file LR37055 guide 184-N-90

• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Designed with various temperature classes
• B2B Bullet Point 2 : 50/60 Hz rated
• B2B Bullet Point 3 : Customer installed accessories
• B2B Bullet Point 4 : UL Listed, cUL, CSA certified
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-23
• ETIM 10 : EC002486
• Device Type : Transformer - dry
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1905
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Electrical Connection : screw clamp terminals
• Insulation Temperature : 180 °C
• Package Weight Lbs : 9.435 kg
• Phase : 1 phase
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : T
• Returnability : No
• Sustainable Packaging : No
• Temperature Rise : 115 °C
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : T
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=453913&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1308008EN
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : not rated (open device)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : FSC2
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 10 Years
• Warranty : 10 Years
• Specifications
• Country of Origin : United States
• Height : 4.51 in
• Width : 5.25 in
• Depth : 6.3 in
