The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured u

• Primary Voltage
• 240 x 480 V 120 V
• 230 x 460 V 115 V
• 220 x 440 V 110 V
• Prop 65
• WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Material
• copper: winding
• Accessories
• 9070FP1
• 9070FSC1
• 9070FB3A
• 9070FB2A
• 9070SF41A
• Rated Power In Va
• 75 VA UL
• 75 VA CSA
• 75 VA NOM
• 75 VA CE
• Product Certifications
• CSA file LR37055 guide 184-N-90
• UL listed file E61239

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• Etim 10 : EC002486
• Html Descr : Industrial Control TransformerRated Power in VA: 75VANumber of Phases: 1-PhaseElectrical Connection: Screw Clamp TerminalsDegree of Protection: Open
• Manufacturer : Schneider Electric
• Baan Price : 514.8
• Baan Currency : USD
• Device Type : Transformer - dry
• Serviceability : No
• Traceability : No
• Legacy Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1905
• Rohs Eur Full Compliance Status : Compliant with Exemptions
• China Rohs In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Electrical Connection : screw clamp terminals
• Insulation Temperature : 105 °C
• Package Weight Lbs : 1.901 kg
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : T
• Returnability : Yes
• Sustainable Packaging : No
• Temperature Rise : 55 °C
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : T
• ETIM
• ETIM 8 : EC002486
• ETIM 9 : EC002486
• Environment Attributes
• Take Back : No
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1308008EN
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : not rated (open device)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : FSC1
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 10 Years
• Warranty : 10 Years
• Specifications
• Country of Origin : Mexico

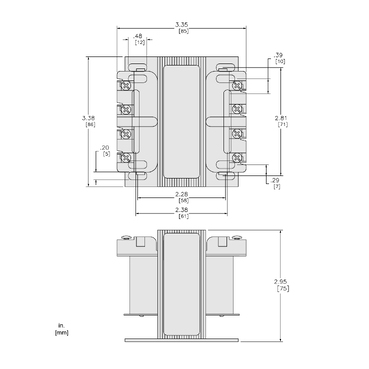

• Height : 2.89 in
• Width : 3.38 in
• Depth : 3.34 in
