Transformer, Type TF, industrial control, 1 phase, 75VA, 120/240 VAC primary / 24 VAC secondary, 50/60 Hz, 55 °C rise

TRANSFORMER CONTROL 75VA 120/2

SQD9070TF75D23 9070TF75D23 785901905202
316.04 / EA
http://schema.org/OutOfStock

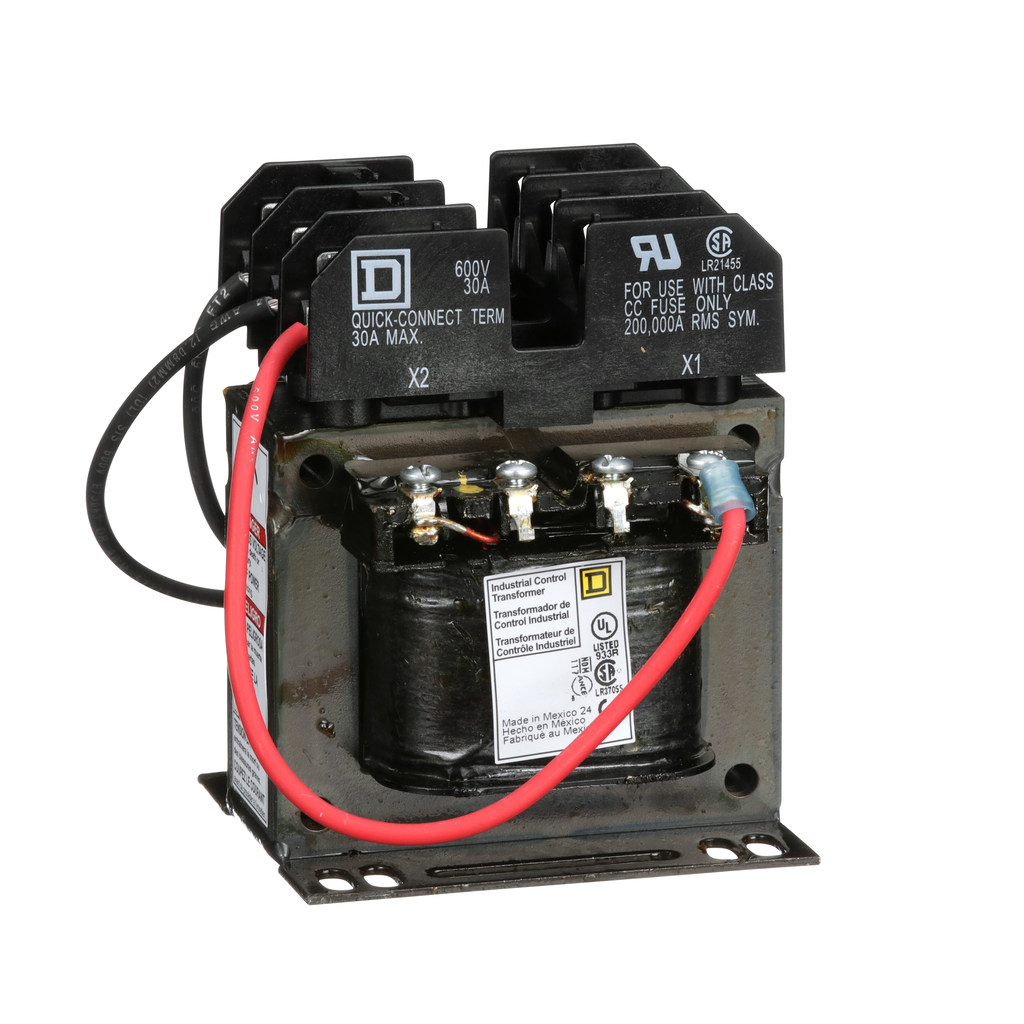

Mayer-DDS-Transformer, Type TF, industrial control, 1 phase, 75VA, 120/240 VAC primary / 24 VAC secondary, 50/60 Hz, 55 °C rise-1
  • Number of Phases: 1
  • Secondary Voltage: 24 V
  • Voltage: 120/240 V
  • Warranty Length: 18 mth
We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 75 VA and is 1 phase. This transformer has a 120 x 240V primary voltage and 24V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 2.89 in (H) 3.38 in (W), 3.34 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1. This product comes with an 18 month warranty.
QTY
  • Product Description
  • Specifications
We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 75 VA and is 1 phase. This transformer has a 120 x 240V primary voltage and 24V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 2.89 in (H) 3.38 in (W), 3.34 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1. This product comes with an 18 month warranty.
  • Specifications
    • Primary Voltage : 120/240 V
    • Range Of Product : TF
    • Secondary Voltage : 24 V
    • Product Or Component Type : Industrial Control Transformer
    • Rated Power In Va : 75 VA
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Temperature Rise : 55 °C
    • Phase : 1 phase
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Nema Degree Of Protection : not rated (open device)
