SQUARE D

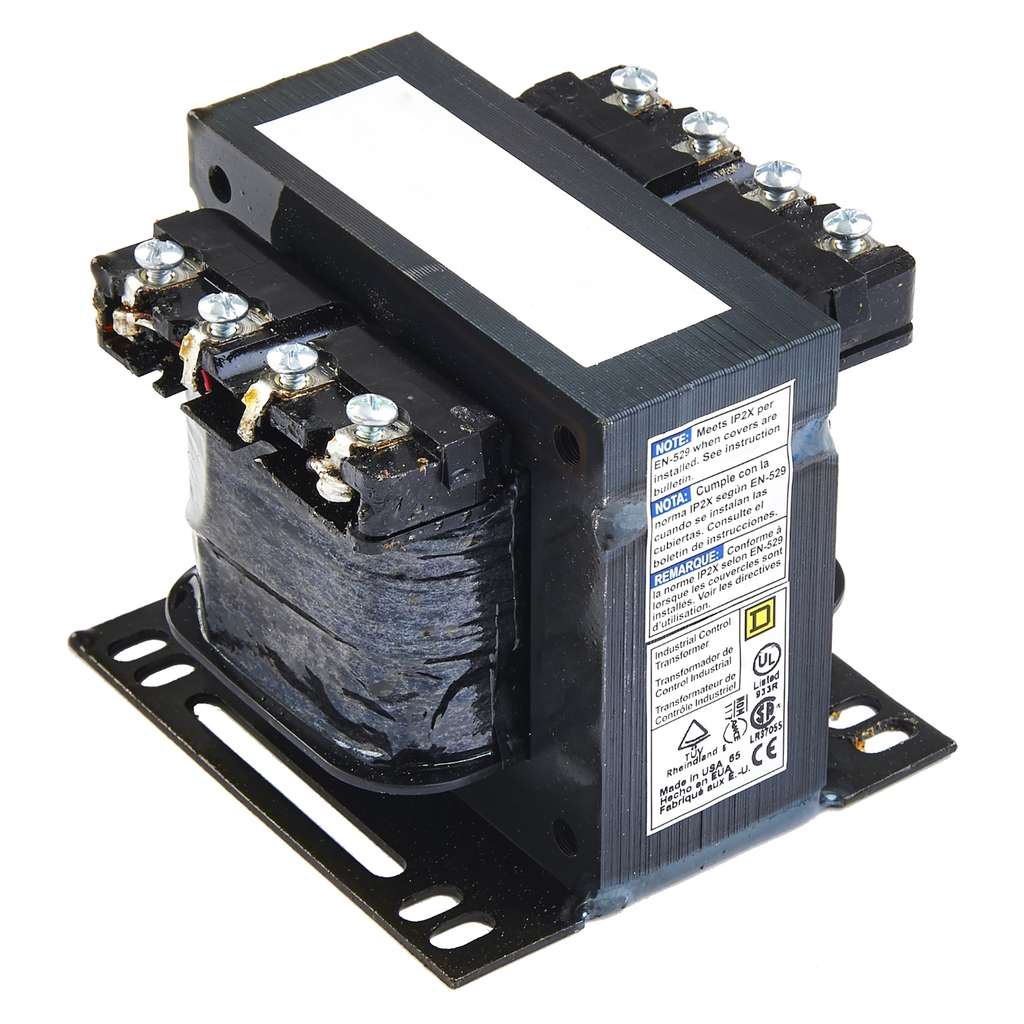

Transformer, Type T, industrial control, 200VA, 1 phase, 240x480V primary, 24V secondary, 80C rise

240 X 480 / 24V CONTROL TRANSF

SQD9070T200D2 9070T200D2 785901845324
470.15 / EA
http://schema.org/OutOfStock
Mayer-DDS-Transformer, Type T, industrial control, 200VA, 1 phase, 240x480V primary, 24V secondary, 80C rise-2
  • Country of Origin: Mexico
  • Depth: 3.59 in
  • Height: 3.2 in
  • Temperature Rise: 80 °C
  • Warranty Length: 10 yr
  • Width: 3.75 in
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured u
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured u
  • Primary Voltage
    • 240 x 480 V 24 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Material
    • copper: winding
  • Accessories
    • 9070FP1
    • 9070FSC1
    • 9070FB3A
    • 9070FB2A
    • 9070SF41A
  • Rated Power In Va
    • 200 VA UL
    • 200 VA CSA
    • 200 VA NOM
    • 200 VA CE
  • Product Certifications
    • UL listed file E61239
    • CSA file LR37055 guide 184-N-90
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-13
    • Etim 10 : EC002486
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : In
    • Weee Product Category : 4
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant with Exemptions
    • Rohs Eur Conformity Date : 1905
    • Rohs Eur Full Compliance Status : Compliant with Exemptions
    • China Rohs In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : A - SELECTED - PCE ONLY (Migration)
    • Electrical Connection : screw clamp terminals
    • Insulation Temperature : 130 °C
    • Package Weight Lbs : 2.268 kg
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : T
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Rise : 80 °C
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : T
  • ETIM
    • ETIM 8 : EC002486
    • ETIM 9 : EC002486
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Eu Rohs Directive : Compliant with Exemptions
    • Nema Degree Of Protection : not rated (open device)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : FSC1
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 10 Years
    • Warranty : 10 Years
  • Specifications
    • Country of Origin : Mexico
    • Height : 3.2 in
    • Width : 3.75 in
    • Depth : 3.59 in
