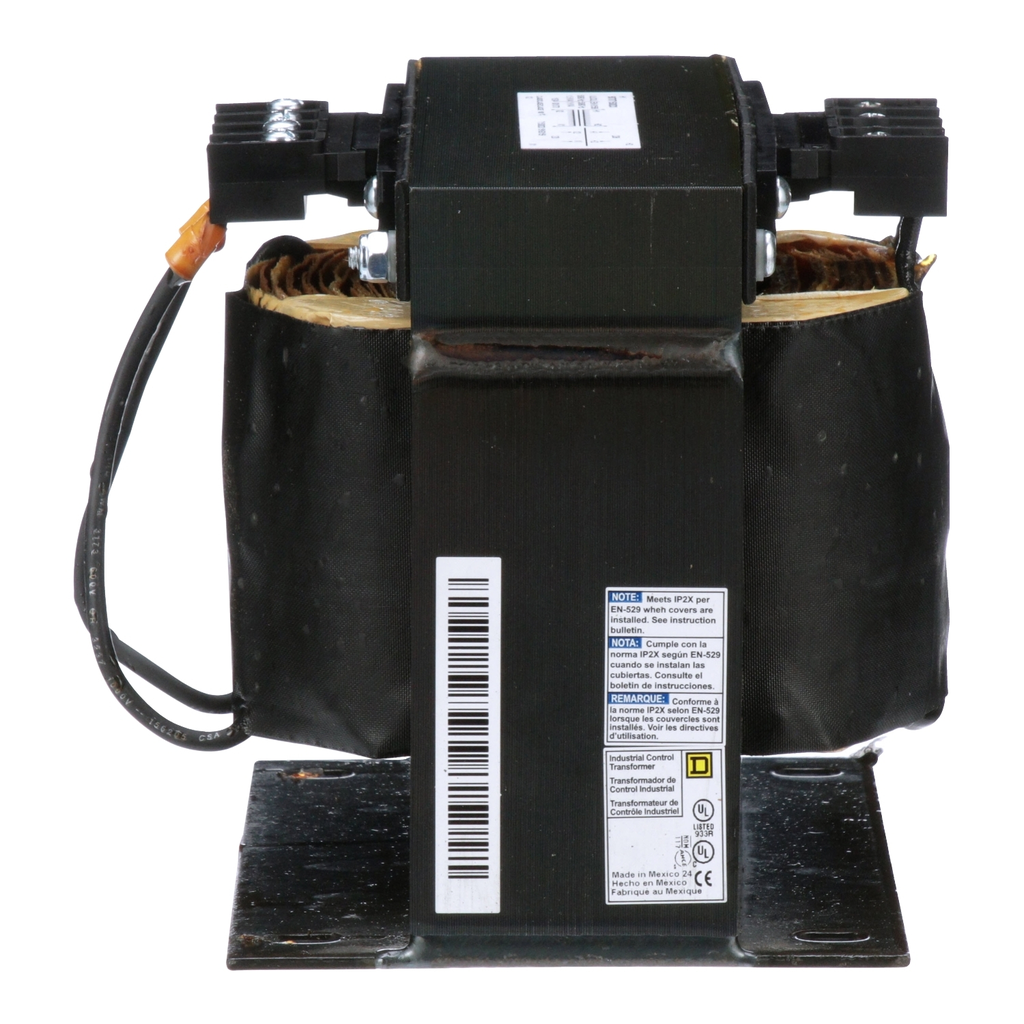

Transformer, Type T, industrial control, 1500VA, 1 phase, 208V primary, 120V secondary, 115C rise

TRANSFORMER CONTROL 1500VA 208

SQD9070T1500D3 9070T1500D3 785901313809
2145.91 / EA
http://schema.org/OutOfStock
Mayer-DDS-Transformer, Type T, industrial control, 1500VA, 1 phase, 208V primary, 120V secondary, 115C rise-2
  • Country of Origin: Mexico
  • Temperature Rise: 115 °C
  • Warranty Length: 10 yr
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 1500VA and is 1 phase. It has a 208V primary voltage and 120V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 1500VA and is 1 phase. It has a 208V primary voltage and 120V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=5873&p_File_name=5873.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=5873&p_File_name=5873.dxf
  • Primary Voltage
    • 208 V 120 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Material
    • copper: winding
  • Accessories
    • 9070FSC2
    • 9070FP1
    • 9070FB3B
    • 9070FB2B
  • Rated Power In VA
    • 1500 VA UL
    • 1500 VA CSA
    • 1500 VA NOM
    • 1000 VA CE
  • Important Information Attributes
    • B2B Bullet Point 1 : Designed with various temperature classes
    • B2B Bullet Point 2 : 50/60 Hz rated
    • B2B Bullet Point 3 : Customer installed accessories
    • B2B Bullet Point 4 : UL Listed, cUL, CSA certified
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : TRANSFORMER CONTROL 1500VA 208V-120V
    • Manufacturer : Schneider Electric
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1905
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Energy Efficiency Optimized : False
    • Insulation Temperature : 180 °C
    • Package Weight Lbs : 15.74 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : T
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Rise : 115 °C
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1308008EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : T
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=452449&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • Contractual Warranty Attributes
    • Warranty Period : 10 Years
    • Warranty : 10 Years
  • Specifications
    • Country of Origin : Mexico
