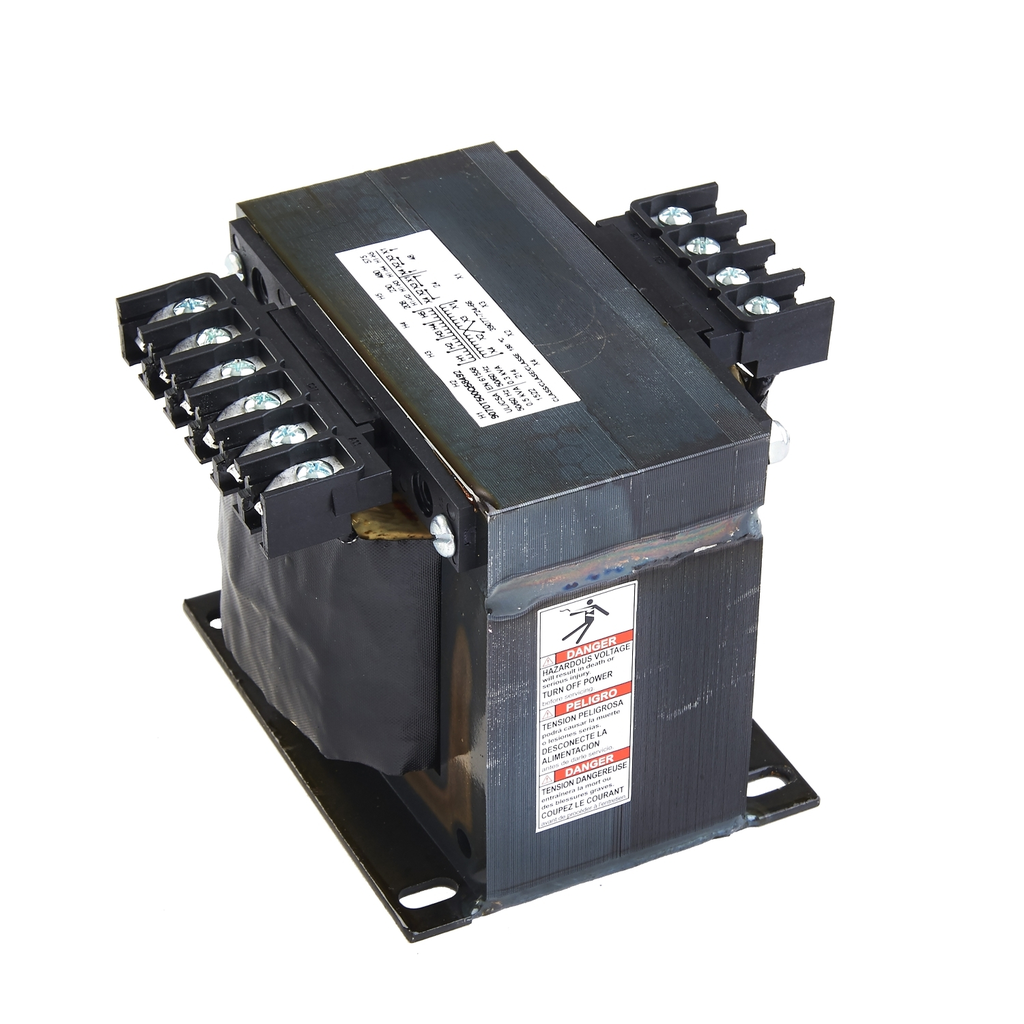

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 240/416/480/600V primary voltage and 99/120/130V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

• Prop 65
• WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL listed file E61239, CSA file LR37055 guide 184-N-90
• Complementary Attributes
• Rated Power In Va : 1000 VA UL, 1000 VA CSA, 1000 VA NOM, 630 VA CE
• Important Information Attributes
• Primary Voltage : 240/416/480/600 V 99/120/130 V, 230/400/460/575 V 95/115/125 V, 220/380/440/550 V 90/110/120 V, 208/360/416/520 V 85/100/110 V
• Carbon Footprint Of The Distribution Phase A4 : 4.0995306783, 4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 4 kg CO2 eq., 4.0365385043
• Carbon Footprint Of The Installation Phase A5 : 0.8063558191, 0.8 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 62 kg CO2 eq., 62.3510535652
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 6 310 kg CO2 eq., 6310.3972304295
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Transformer - dry
• Serviceability : No
• Traceability : No
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1905
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Electrical Connection : screw clamp terminals
• Energy Efficiency Optimized : False
• Insulation Temperature : 180 °C
• Material : copper: winding
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : T
• Returnability : Yes
• Software Version : EIME v5.8.1
• Sustainable Packaging : No
• Temperature Rise : 115 °C
• Total Lifecycle Carbon Footprint : 6 382 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Pep Code : ENVPEP1308008EN
• Database Version : 2016-11
• Pep Verification Date : 2020-11-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Convert distribution voltage of either 240V or 480V to required control voltage of 120V, units are specifically design to limit voltage drop during high inrush currents from control devices, during 20 years
• Functional Unit Quantity : 1
• Functional Unit Unit : unité (unit)
• Product Weight In G2 : 16098
• Reference Lifetime In Y2 : 20
• Energy Consumption On Product Lifetime In Kwh : 9113.9
• Energy Model Manufacturing A1 A3 2 : Energy model used: Mexico
• Energy Model Installation A5 2 : Electricity mix; AC; 120V; US
• Energy Model Use B6 2 : Electricity mix; AC; 120V; US
• Energy Model End Of Life C1 C4 2 : Electricity mix; AC; 120V; US
• Offer Owner Code : 190788
• Height Nominal : 6.17 in
• Width Nominal : 7.06 in
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 6381.6907089964
• Environmental Disclosure : ENVPEP1308008EN
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : not rated (open device)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : FSC23
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1308008EN
• Pep Verification Date : 2020-11-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : T
• ETIM
• ETIM 8 : EC002486
• ETIM 9 : EC002486
• Contractual Warranty Attributes
• Warranty Period : 10 Years
• Warranty : 10 Years
• Specifications
• Country of Origin : Mexico
• Depth : 5.92 in
