Transformer, Type T, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise

XFMR CONTROL 100VA 208/230/460

SQD9070T100D20 9070T100D20 785901905059
332.58 / EA
http://schema.org/OutOfStock

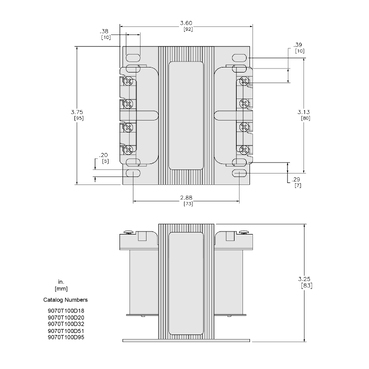

Mayer-DDS-Transformer, Type T, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise-2
  • Country of Origin: Mexico
  • Temperature Rise: 55 °C
  • Warranty Length: 10 yr
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 208/230/460V primary voltage and 115V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 208/230/460V primary voltage and 115V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=5847&p_File_name=5847.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=5847&p_File_name=5847.dxf
  • Primary Voltage
    • 208/230/460 V 115 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Material
    • copper: winding
  • Accessories
    • 9070FP1
    • 9070FSC1
    • 9070FB3A
    • 9070FB2A
    • 9070SF41A
  • Rated Power In VA
    • 100 VA UL
    • 100 VA CSA
    • 100 VA NOM
    • 100 VA CE
  • Important Information Attributes
    • B2B Bullet Point 1 : Designed with various temperature classes
    • B2B Bullet Point 2 : 50/60 Hz rated
    • B2B Bullet Point 3 : Customer installed accessories
    • B2B Bullet Point 4 : UL Listed, cUL, CSA certified
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : Industrial Control Transformer:Application: Specifically designed to handle high inrush associated with contactors and relays forapplications such as conveyor systems, paint lines, punch presses or overhead cranesApprovals: UL Listed File Number: E61239 - CSA Certified File Number: LR37055 Guide: 184-N-90 -CE MarkedFuse Block: Terminal Type: Screw ClampType: TMounting Type: PanelPhase: 1-PhaseEnclosure Type: OpenTemperature Rise: 55 Degrees CPrimary Voltage: 120x240VInsulation Temperature: 105 Degrees CRating: 100 VASecondary Voltage: 24VDepth: 3.34 inchesWidth: 3.38 inchesWinding Material: CopperHeight: 2.89 inches
    • Manufacturer : Schneider Electric
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1905
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Energy Efficiency Optimized : False
    • Insulation Temperature : 105 °C
    • Package Weight Lbs : 2.472 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : T
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Rise : 55 °C
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1308008EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Industrial Control Transformer
    • Range Of Product : T
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=452285&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308008EN
  • Contractual Warranty Attributes
    • Warranty Period : 10 Years
    • Warranty : 10 Years
  • Specifications
    • Country of Origin : Mexico
