Harmony, Modular 3-phase voltage control relay, 8 A, 2 CO, 380...480 V AC

RELAY

SQDRM22TR33 RM22TR33 785901810254
125.00 / EA
  • Certifications: CCC, CE, CSA, EAC, GL, RCM, UL
  • Contact Material: Cadmium Free
  • Housing Material: Self-extinguishing Plastic
  • Net Weight: 0.09 kg
  • Number of Phases: 3
  • Standard: EN/IEC 60255-1
  • Storage Temperature: -40-70 °C
  • Width: 22.5 mm

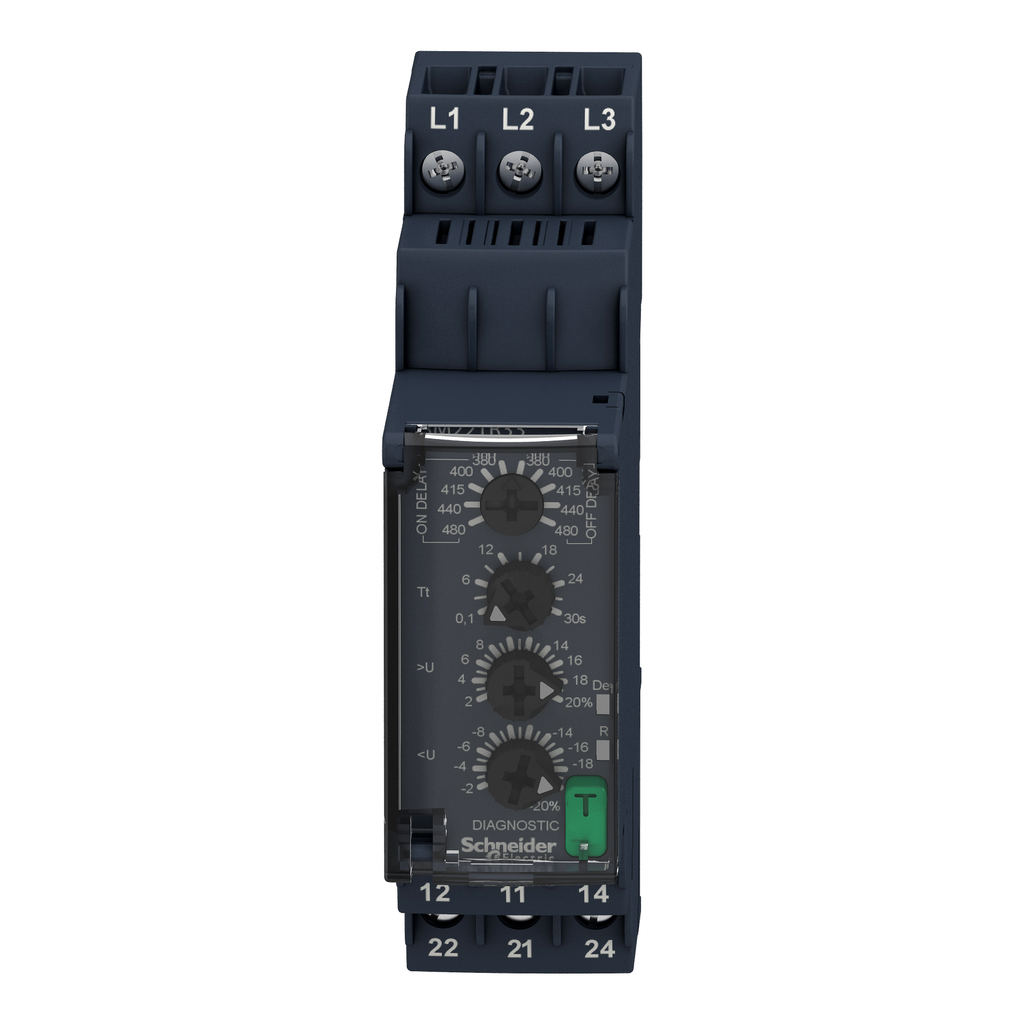

This Zelio RM22-TR relay allows monitoring of phase and undervoltage/overtage in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
  • Product Description
  • Specifications
This Zelio RM22-TR relay allows monitoring of phase and undervoltage/overtage in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
  • Phase : 3 phase
  • Measurement Range : 380...480 V voltage AC
  • Range Of Product : Harmony Control Relays
  • Relay Type : control relay
  • Relay Monitored Parameters : overvoltage and undervoltage detection || phase sequence || phase failure detection
  • Relay Name : RM22TR
  • Product Or Component Type : 3-phase control relay
  • Time Delay Type : adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
  • Contacts Type And Composition : 2 C/O
  • Switching Capacity In Va : 2000 VA
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1504008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1504008EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Complementary
    • Maximum Switching Current : 8 A AC
    • Voltage Detection Threshold : < 100 V AC
    • Tightening Torque : 0.6-1 N.m IEC 60947-1
    • Reset Time : 1500 ms at maximum voltage
    • Output Contacts : 2 C/O
    • Supply Frequency : 50...60 Hz +/- 10 %
    • Connections - Terminals : screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
    • Maximum Measuring Cycle : 150 ms measurement cycle as true rms value
    • Measurement Error : < 1 % over the whole range with voltage variation || < 0.05 %/°C with temperature variation
    • Threshold Adjustment Voltage : 2...20 % of Un selected
    • Supply Voltage Limits : 304-576 V AC
    • Mounting Support : 35 mm DIN rail conforming to EN/IEC 60715
    • Width : 22.5 mm
    • Minimum Switching Current : 10 mA 5 V DC
    • Control Circuit Voltage Limits : 20 % + 20 % Un
    • Response Time : <= 300 ms
    • Hysteresis : 2-2 % fixed selectable
    • Contacts Material : cadmium free
    • Insulation Resistance : > 100 MOhm 500 V DC IEC 60255-27
    • Electrical Durability : 100000 cycles
    • Maximum Switching Voltage : 250 V AC
    • [Us] Rated Supply Voltage : 380...480 V AC
    • Nominal Output Current : 8 A
    • Mechanical Durability : 10000000 cycles
    • Overvoltage Category : III IEC 60664-1 || III UL 508
    • Setting Accuracy Of The Switching Threshold : +/- 10 % of the full scale
    • Housing Material : self-extinguishing plastic
    • Mounting Position : any position
    • Switching Threshold Drift : <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
    • Voltage Range : 380...480 V phase to phase
    • Utilisation Category : AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
    • Run-Up Delay At Power-Up : 650 ms
    • Net Weight : 0.09 kg
    • Setting Accuracy Of Time Delay : 10 P
    • Power Consumption In Va : 15-15 VA 480 V AC 60 Hz
    • Time Delay Drift : <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
    • Repeat Accuracy : +/- 0.5 % input and measurement circuit || +/- 3 % time delay
    • Status Led : relay ON LED Yellow) || power ON LED Green)
    • Safety Reliability Data : MTTFd = 388.1 years || B10d = 350000
  • Environment
    • Dielectric Test Voltage : 2.5 kV AC 50 Hz, 1 min IEC 60255-27
    • Ambient Air Temperature For Operation : -20-50 °C 60 Hz || -20-60 °C 50 Hz AC/DC
    • Ip Degree Of Protection : IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
    • Relative Humidity : 93-97 % 25-55 °C IEC 60068-2-30
    • Immunity To Microbreaks : 10 ms
    • Ambient Air Temperature For Storage : -40-70 °C
    • Standards : EN/IEC 60255-1
    • Shock Resistance : 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
    • Vibration Resistance : 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
    • Electromagnetic Compatibility : immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22
    • Pollution Degree : 3 IEC 60664-1 || 3 UL 508
    • Product Certifications : GL || CSA || RCM || CE || EAC || CCC || UL
