Terminal block, Linergy, fuse holder, Class CC, 30A, 600V, 3 pole

TERMINAL BLOCK FUSEHOLDER 600V

SQD9080FB3611CC 9080FB3611CC 785901097211
30.01 / EACH
http://schema.org/OutOfStock

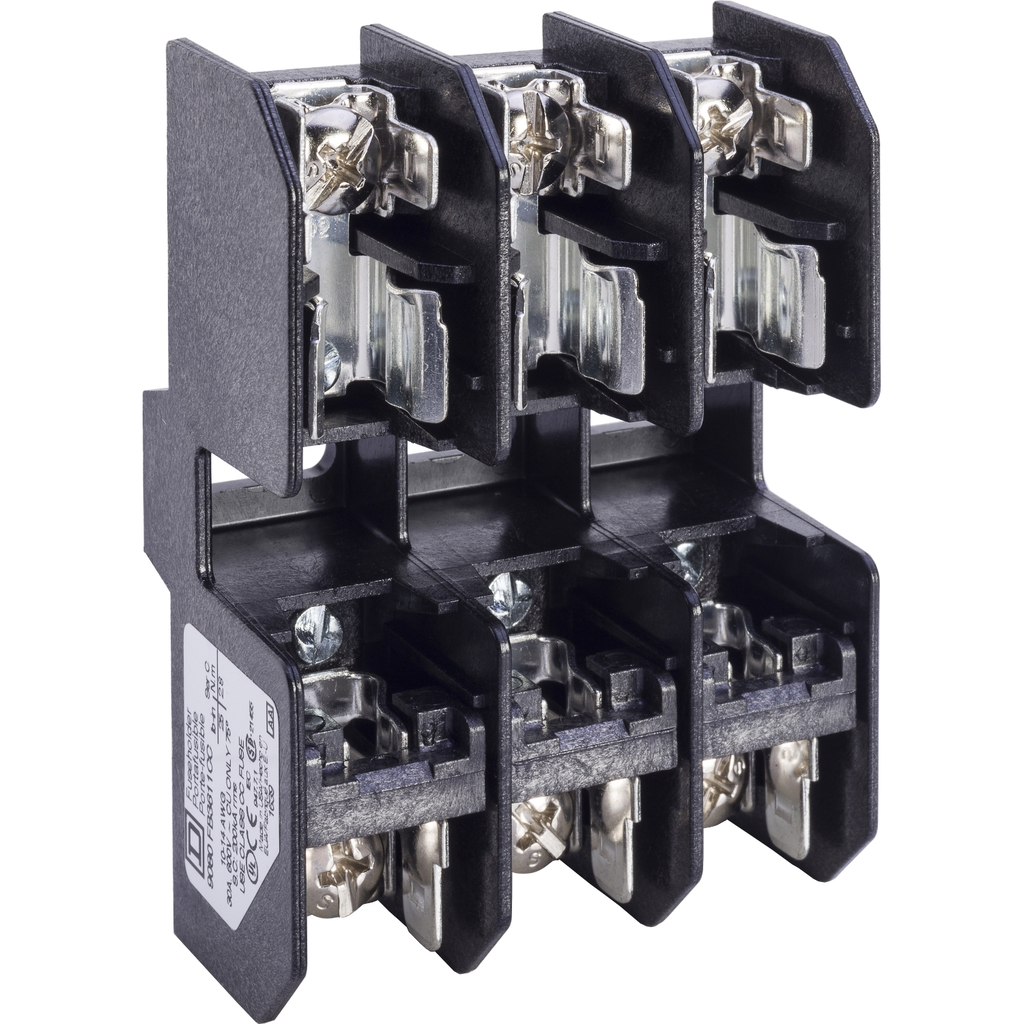

Mayer-DDS-Terminal block, Linergy, fuse holder, Class CC, 30A, 600V, 3 pole-1
  • Depth: 1.29 in
  • Fuse Type: CC
  • Warranty Length: 18 mth
Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. These starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The Motor Logic solid state overload relay is used to sense over current conditions. This contactor doesn't have an enclosure. Starter is 6.67 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
QTY
  • Product Description
  • Features
  • Specifications
Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. These starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The Motor Logic solid state overload relay is used to sense over current conditions. This contactor doesn't have an enclosure. Starter is 6.67 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
  • Features
    • This three pole fuse holder will accept class CC fuses
    • The rating of the fuse can be up to 30 Amps with a 600 V maximum rating
    • The fuse holder base is made of high impact thermoplastic
    • This fuse holder is UL listed and CSA certified
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Fuse Size : 0.4063 x 1.5 in
    • Wire Stripping Length : 0.4375 in
  • Conformance Attributes
    • Product Certifications : CE, UL recognized E40747 CCN IZLT2, CSA file 70360 class 6225 01
  • Complementary Attributes
    • Line Rated Current : 30 A
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Ue Rated Operational Voltage2 : <= 600 V AC/DC, <= 600 V AC/DC
    • Ue Rated Operational Voltage5 : <= 600 V AC/DC, <= 600 V AC/DC
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - LV fuse - disconnector
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • AWG Gauge : AWG 14...AWG 10 copper or aluminium
    • Electrical Connection : pressure wire clamp
    • Energy Efficiency Optimized : False
    • Fuse Type : CC
    • Material : thermoplastic: block
    • Mounting Support : surface mount
    • Package Weight Lbs : 108.862 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : fuse holder
    • Range Of Product : 9080FB
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ics Rated Service Breaking Capacity2 : 200 kA UL 512
    • Connections Terminals : screw terminals 25 lbf.in AWG 14...AWG 10 copper
    • Medium Desc : Terminal block, Linergy, fuse holder, Class CC, 30A, 600V, 3 pole
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Global Commercial Status : Commercialised
    • Connections Terminals3 : screw terminals 25 lbf.in AWG 14...AWG 10 copper
    • Ics Rated Service Breaking Capacity5 : 200 kA UL 512
  • Environment Attributes Main
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-257 °F
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : fuse holder
    • Range Of Product : 9080FB
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 1.29 in
