Terminal block, Linergy, sectional fuse holder, natural colored block, 30A, 600V

TERMINAL-BLOCK - SECT

SQD9080GF6 9080GF6 785901155034
25.53 / EACH
http://schema.org/OutOfStock

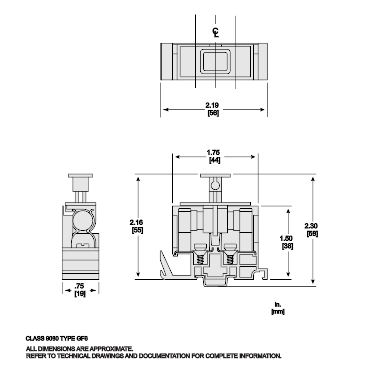

Mayer-DDS-Terminal block, Linergy, sectional fuse holder, natural colored block, 30A, 600V-2
  • Country of Origin: Mexico
  • Depth: 0.75 in
  • Height: 2.33 in
  • Warranty Length: 18 mth
  • Width: 2.19 in
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts ar
QTY
  • Product Description
  • Features
  • Specifications
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts ar
  • Connections Terminals
    • clamp terminal zinc plated steel 18-20 lbf.in : AWG 18...AWG 10 copper)
    • clamp terminal zinc plated steel 18-20
  • Mounting Support
    • 35 mm DIN rail
    • 9080GH track
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Number Of Terminal Blocks
    • 16 per foot
  • Ue Rated Operational Voltage
    • 600 V AC/DC
  • Protection Type
    • fingersafe DIN 57470
  • Accessories
    • 9080GF6B
    • 9080GLP3
    • 9080GLP6
    • 9080GH112
    • 9080MH339
    • 9080MHA10
    • 9080GH136
    • 9080GH236
    • 9080MH220
    • 9080GH10
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Line Rated Current
    • 30-30 A UL
    • 30-30 A CSA
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SI
  • AWG Gauge
    • AWG 18...AWG 10 copper
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Product Certifications
    • CSA file 62144 class 6228 01
    • CE
    • UL recognized E60616 CCN XCFR2
  • Physical Attributes
    • Color : natural
  • Important Information Attributes
    • B2B Bullet Point 1 : Natural colored block, 30 amp, sectional fuse holder
    • B2B Bullet Point 2 : Meets a wide variety of application requirements
    • B2B Bullet Point 3 : Offers labor savings with easy wiring requiring a standard screwdriver
    • Local Data Status : Publishable
    • Local Publishable Date : 4/9/2025
    • Html Descr : TERMINAL BLOCK 600V 30 AMP
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1918
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Electrical Connection : pressure wire clamp
    • Localisation On Device : fusible
    • Package Weight Lbs : 272.155 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : terminal block
    • Quantity Per Set : set of 10
    • Range Of Product : 9080G
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : terminal block
    • Range Of Product : 9080G
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=372027&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-221 °F
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : GF6B
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 2.33 in
    • Width : 2.19 in
    • Depth : 0.75 in
