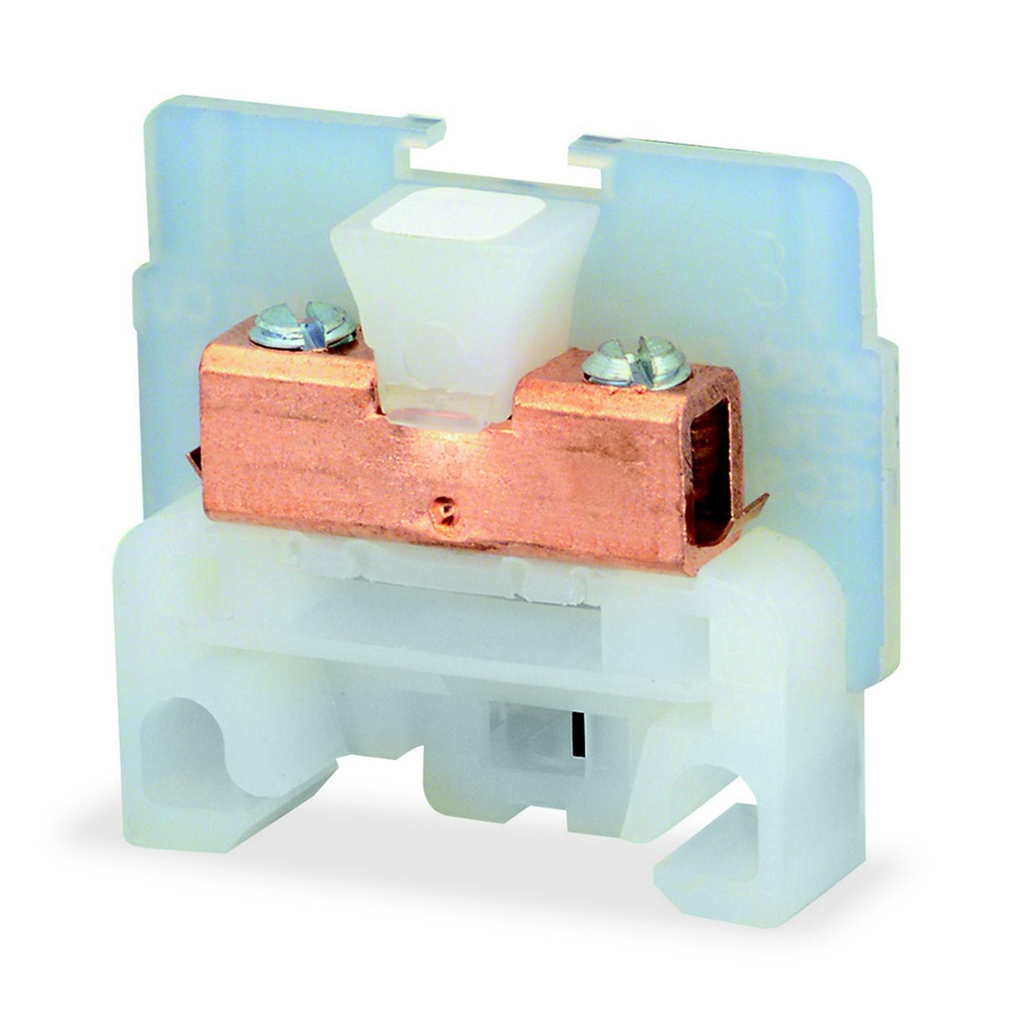

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from 22 through 10 AWG. Each box lug terminal

• Connections Terminals
• lug copper 11-12 lbf.in : AWG 22...AWG 10 copper)
• Mounting Support
• 9080GH track
• panel
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Number Of Terminal Blocks
• 35 per foot
• Ue Rated Operational Voltage
• 600 V AC/DC
• Electrical Connection
• copper box lugs
• Accessories
• 9080GK6B
• 9080GH72
• 9080GH73
• 9080GH112
• 9080GH136
• 9080GH236
• 9080GH10
• 9080GH220
• 9080GH61
• 9080GH60
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Line Rated Current
• 40-40 A CSA
• 70-70 A UL
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• AWG Gauge
• AWG 22...AWG 10 copper
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Certifications
• CSA file 62144 class 6228 01
• CE
• UL recognized E60616 CCN XCFR2

• Physical Attributes
• Color : natural
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Html Descr : TERMINAL BLOCK 600V 40 AMP
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1918
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Localisation On Device : standard
• Package Weight Lbs : 15.422 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : terminal block
• Quantity Per Set : set of 50
• Range Of Product : 9080G
• Returnability : Yes
• Sustainable Packaging : No
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : terminal block
• Range Of Product : 9080G
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=372177&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -40-257 °F
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Product Compatibility : GK6B
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 1.39 in
• Width : 1.4 in
• Depth : 0.35 in
