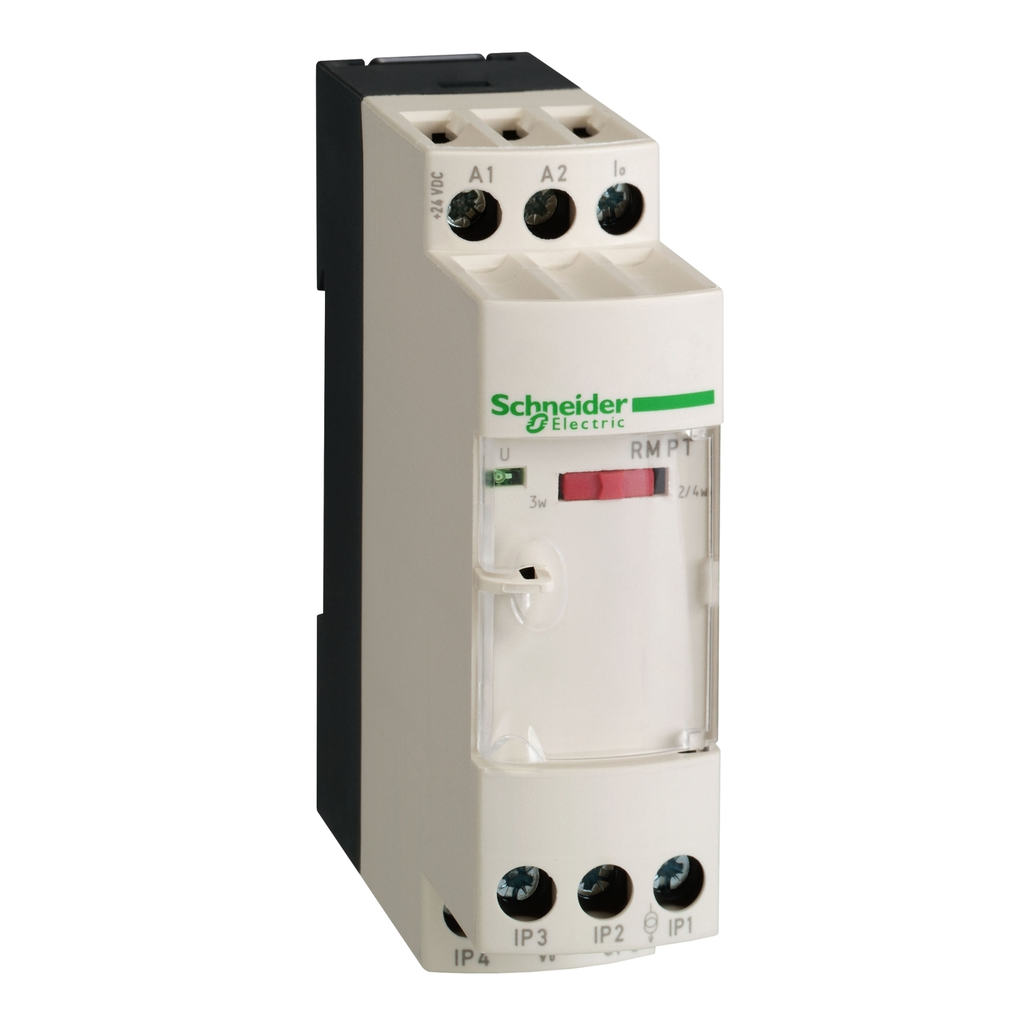

Harmony Analog, Converter for Universal Pt100 probes, temperature transmitter, 40...40 °C/40...104 °F

Harmony Analog, Converter for Universal Pt100 probes, temperature transmitter, 40...40 °C/40...104 °F

SQDRMPT10BD RMPT10BD 3389110108927
144.53 / EA
http://schema.org/OutOfStock
Mayer-Harmony Analog, Converter for Universal Pt100 probes, temperature transmitter, 40...40 °C/40...104 °F-1
  • Certifications: CSA, GL, UL
  • Current: 40 mA, 60 mA
  • Net Weight: 0.12 kg
  • Operating Temperature: 0-50 °C Mounting Side By Side || 0-60 °C 2 Cm Spacing
  • Standard: DIN 43760, EN/IEC 60584-1, EN/IEC 60751, EN/IEC 60947-1
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Specifications
    • Range Of Product : Harmony Analog
    • Analogue Output Type : current 0...20 mA <= 500 Ohm || current 4...20 mA <= 500 Ohm || voltage 0...10 V >= 100 kOhm
    • Product Or Component Type : converter for Universal Pt100 probes
    • Analogue Input Type : temperature probe - 40...40 °C/- 40...104 °F Pt 100 2, 3 or 4 wires
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • [Us] Rated Supply Voltage : 24 V DC non isolated +/- 20 %
    • Current Consumption : <= 40 mA voltage output || <= 60 mA current output
    • Safety Reliability Data : B10d = 30437 || MTTFd = 32.9 years
    • Measurement Error : +/- 0.5 % of full scale 3 or 4 wires)20 °C || +/- 1 % of full scale 2 wires)20 °C || +/- 10 % of full scale20 °C electromagnetic interference of 10 V/m)
    • Surge Withstand : 0.5 kV 1.2/50 µs IEC 61000-4-5
    • Clamping Connection Capacity : 1 x 2.5 mm² || 2 x 1.5 mm²
    • Maximum Wiring Resistance : 0.2 Ohm 2 wires
    • Local Signalling : for power ON LED (green)
    • Temperature Coefficient : 150 ppm/°C
    • Protection Type : overvoltage protection on output (+/- 30 V) || reverse polarity protection on output || short-circuit protection on output || reverse polarity protection on power supply
    • [Ui] Rated Insulation Voltage : 2000 V
    • Marking : CE
    • Analogue Output Voltage : -15...-11 V no input or input wire broken || 11...15 V no input or input wire broken
    • Net Weight : 0.12 kg
    • Fixing Mode : by screws mounting plate) || clip-on 35 mm symmetrical DIN rail)
    • Tightening Torque : 0.6-1.1 N.m
    • Analogue Output Current : -30-0 mA no input or input wire broken || 22-30 mA no input or input wire broken
    • Repeat Accuracy : +/- 0.2 % full scale 20 °C || +/- 0.6 % full scale 60 °C
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1607005EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1607005EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Environment
    • Disturbance Radiated/Conducted : CISPR 11 || CISPR 22 group 1 - class B
    • Product Certifications : UL || GL || CSA
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C
    • Standards : DIN 43760 || EN/IEC 60584-1 || EN/IEC 60947-1 || EN/IEC 60751
    • Ambient Air Temperature For Operation : 0-50 °C mounting side by side || 0-60 °C 2 cm spacing
    • Electromagnetic Compatibility : electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2
    • Fire Resistance : 850 °C IEC 60695-2-1 || 850 °C UL
    • Shock Resistance : 50 gn 11 ms IEC 60068-2-27
    • Vibration Resistance : 5 gn 10-100 Hz)IEC 60068-2-6
    • Resistance To Fast Transients : 1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
    • Ip Degree Of Protection : IP20 terminal block) || IP50 housing)
