SQUARE D

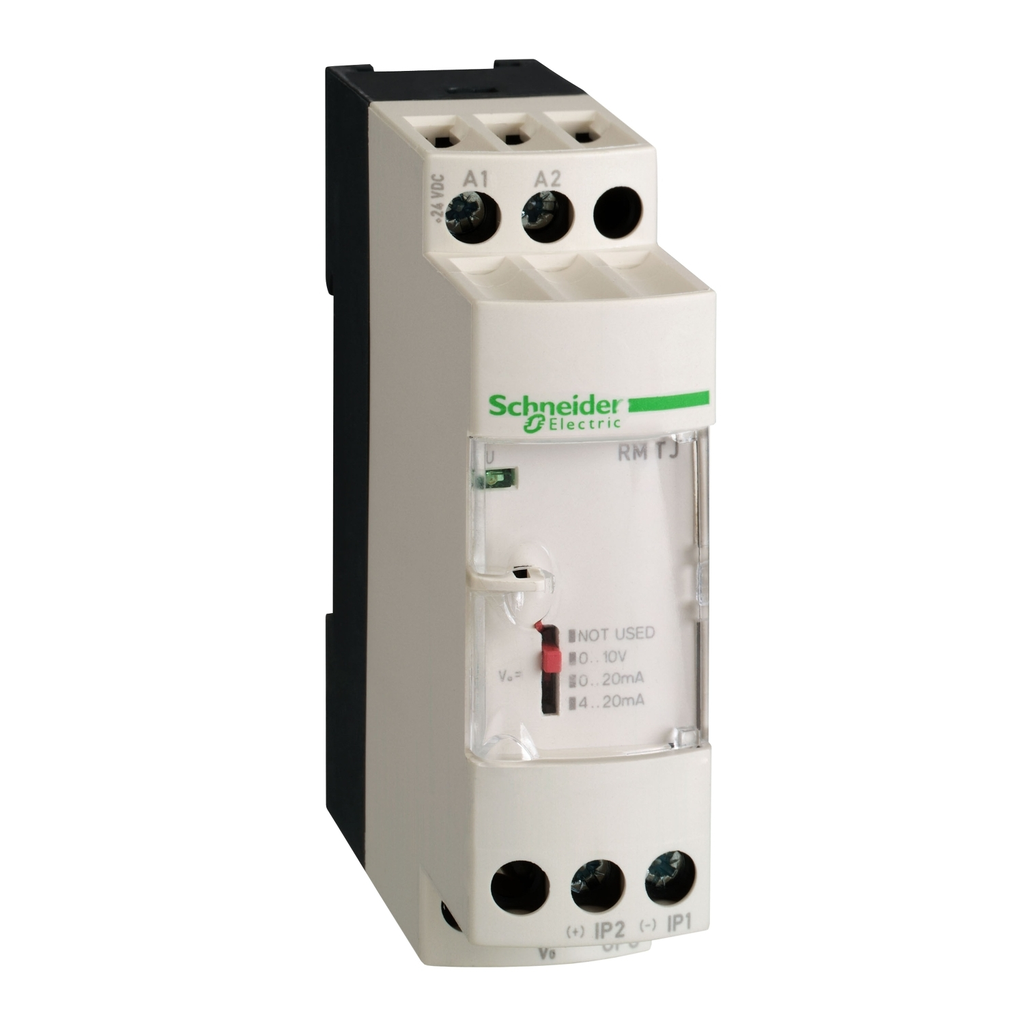

Converter for thermocouples, Harmony Analog, temperature transmitter, 0...300 degree COr 32...572 degree F

ANALOG TYPE J MODULE RMC +OPT

SQDRMTJ60BD RMTJ60BD 3389110109030
239.72 / EA
http://schema.org/OutOfStock
Mayer-DDS-Converter for thermocouples, Harmony Analog, temperature transmitter, 0...300 degree COr 32...572 degree F-1
  • Country of Origin: Indonesia
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Analogue Output Current
    • -30-0 mA no input or input wire broken
  • Safety Reliability Data
    • B10d = 45447
    • MTTFd = 49.2 years
  • Current Consumption
    • <= 40 mA voltage output
    • <= 60 mA current output
  • Analogue Input Type
    • thermocouple 0...300 °C/32...572 °F thermocouple J IEC 60584
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Analogue Output Type
    • current 0...20 mA <= 500 Ohm
    • current 4...20 mA <= 500 Ohm
    • voltage 0...10 V >= 100 kOhm
    • voltage 0...10 V >= 10
  • Standards
    • IEC 60584-1
    • IEC 60947-1
  • Disturbance Radiated Conducted
    • CISPR 22 group 1 - class B
    • CISPR 11
  • Ip Degree Of Protection
    • IP20 terminal block)
    • IP50 housing)
  • Analogue Output Voltage
    • -15...-11 V no input or input wire broken
    • 11...15 V no input or input wire broken
  • Protection Type
    • overvoltage protection on output (+/- 30 V)
    • reverse polarity protection on output
    • short-circuit protection on output
  • Fixing Mode
    • by screws (mounting plate)
    • clip-on (35 mm symmetrical DIN rail)
  • Vibration Resistance
    • 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
  • Measurement Error
    • +/- 1 % of full scale 20 °C temporary performance degradation when subject to electromagnetic interference)
    • +/- 1 % of full scale 20 °C temporary
  • Fire Resistance
    • 850 °C IEC 60695-2-1
    • 850 °C UL
  • Resistance To Fast Transients
    • 1 kV IEC 61000-4-4 on input-output)
    • 2 kV IEC 61000-4-4 on power supply)
  • Surge Withstand
    • 0.5 kV 1.2/50 µs IEC 61000-4-5
  • Us Rated Supply Voltage
    • 24 V DC +/- 20 %, non isolated
  • Cold Junction Compensation
    • built-in between 0 and 60 °C
  • Resistance To Electrostatic Discharge
    • 6 kV in contact)IEC 61000-4-2 level 3
    • 8 kV in air)IEC 61000-4-2 level 3
  • Repeat Accuracy
    • +/- 0.25 % full scale 20 °C
    • +/- 0.8 % full scale 60 °C
  • Shock Resistance
    • 50 gn 11 ms IEC 60068-2-27
  • Local Signalling
    • LED (green) for power ON
  • Ambient Air Temperature For Operation
    • 0-50 °C mounting side by side
    • 0-60 °C 2 cm spacing
  • Product Certifications
    • CSA
    • GL
    • UL
  • Complementary Attributes
    • Ui Rated Insulation Voltage : 2 kV
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-07-03
    • ETIM 10 : EC002081
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1409020EN
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Marking : CE
    • Package Weight Lbs : 105.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : converter for thermocouples
    • Range Of Product : Harmony Analog
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Temperature Coefficient : 200 ppm/°C
    • Tightening Torque : 0.6-1.1 N.m
  • General Attributes
    • Product Or Component Type : converter for thermocouples
    • Range Of Product : Harmony Analog
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=9263137&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI1409020EN
    • Environmental Disclosure : ENVPEP1607005EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Indonesia
