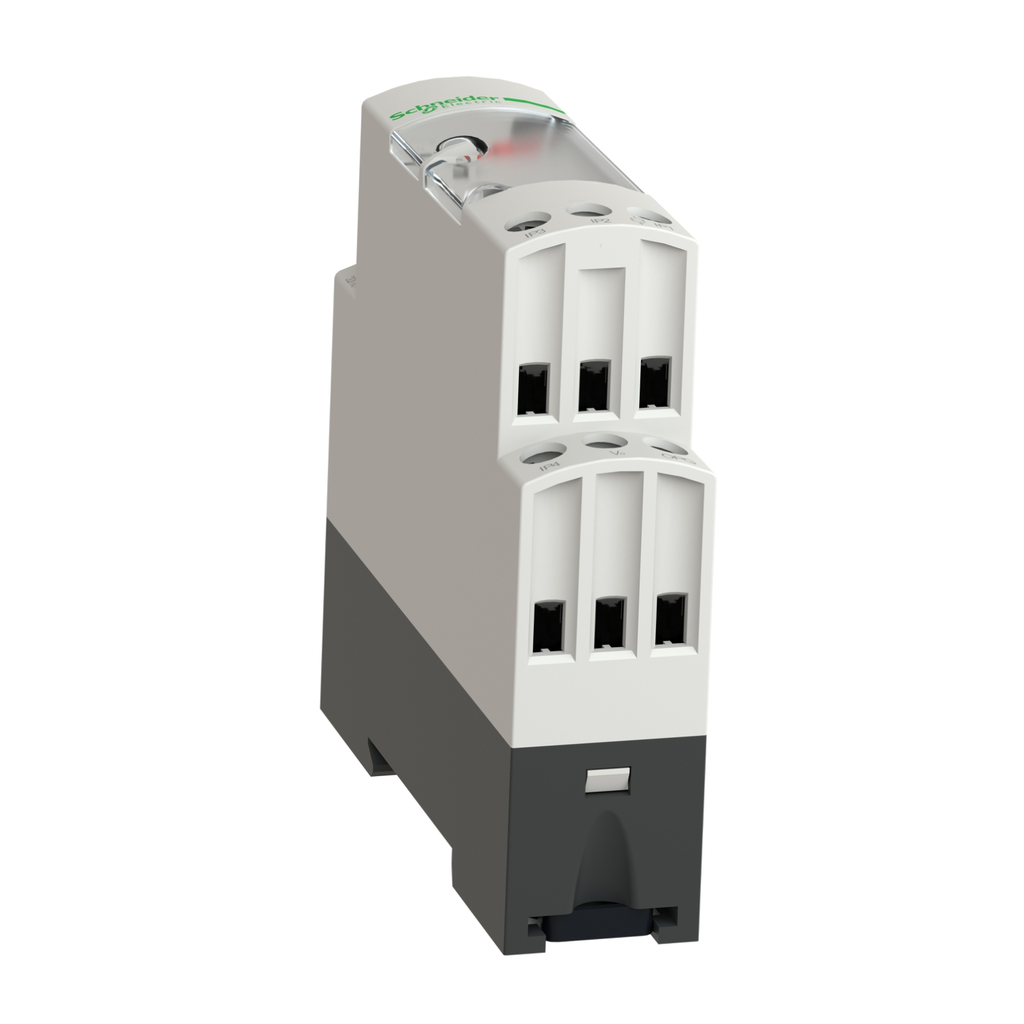

This Harmony Analog temperature transmitter provides a versatile interface for your machines. It has a reverse polarity protection, a short-circuit protection and an overvoltage protection. 0 It is dust resistant, impact resistant and vibration resistant, thanks to its IP20 and IP50, making it ideal for operations in harsh environments. The product is a converter for Universal Pt100 probes with 0-250 °C/32-482 °F analogue input type. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

• Analogue Output Current
• -30-0 mA no input or input wire broken
• 22-30 mA no input or input wire broken
• Current Consumption
• <= 40 mA voltage output
• <= 60 mA current output
• Analogue Input Type
• temperature probe 0...250 °C/32...482 °F Pt 100 2, 3 or 4 wires
• IP Degree Of Protection
• IP20 terminal block)
• IP50 housing)
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0008238349
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.0542807517
• Analogue Output Voltage
• -15...-11 V no input or input wire broken
• 11...15 V no input or input wire broken
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 2 kg CO2 eq.
• 2.4459679606
• Fixing Mode
• clip-on (35 mm symmetrical DIN rail)
• fixed (mounting plate)
• Vibration Resistance
• 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Measurement Error
• +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference)
• +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference)
• Fire Resistance
• 850 °C IEC 60695-2-1
• 850 °C UL
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 21 kg CO2 eq.
• 20.6872727273
• Electromagnetic Compatibility
• electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
• electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
• Resistance To Fast Transients
• 1 kV IEC 61000-4-4 on input-output)
• 2 kV IEC 61000-4-4 on power supply)
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Surge Withstand
• 0.5 kV 1.2/50 µs IEC 61000-4-5
• Carbon Footprint Of The Distribution Phase A4
• 0.0136761553
• 0 kg CO2 eq.
• Repeat Accuracy
• +/- 0.2 % full scale 20 °C
• +/- 0.6 % full scale 60 °C
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Shock Resistance
• 50 gn 11 ms IEC 60068-2-27
• Local Signalling
• LED (green) for power ON
• Ambient Air Temperature For Operation
• 0-50 °C mounting side by side
• 0-60 °C 2 cm spacing

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001781_3D-CAD
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-06
• Manufacturing Carbon Footprint : 2.4459679606
• Distribution Carbon Footprint : 0.0136761553
• Installation Carbon Footprint : 0.0008238349
• Use Carbon Footprint : 20.6872727273
• End Of Life Carbon Footprint : 0.0542807517
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2511011EN
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Package Weight Lbs : 109.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : converter for Universal Pt100 probes
• Range Of Product : Harmony Analog
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 23 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 23.2020214297
• Relationship Type : cross-selling relationship
• Pep Code : ENVPEP2511011EN
• Pep Verification Date : 2016-09-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed1-2012 12 11
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 106
• Functional Unit Description : To convert signals emitted by sensors or electrical measurement devices, into standard electrical signals that are compatible with automation platforms and controllers (thermal processes, speed, etc.). during 10 years with a 100% use rate, in compliance with French standard.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 35.04
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Energy model used: Indonesia (Schneider Electric Batam)
• Energy Model Installation A5 : Electricity Mix; AC; < 1kV; EU-27
• Energy Model Use B6 : Electricity Mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 : Electricity Mix; AC; < 1kV; EU-27
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0002739701
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0002730267
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000005
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000009424
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000003
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 244.3615143718
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 30.8784596426
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.1921388786
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0116502033
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 213.1090909091
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.1701747381
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 2.132948589
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.9098287123
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.017252594
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.2058672828
• Materials For Energy Recovery Kg Total Life Cycle : 0.014312828
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.0002996672
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0140131608
• Materials For Recycling Kg Total Life Cycle : 0.016041268
• Materials For Recycling Kg Manufacturing A1 A3 : 0.0014017733
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.0146394948
• Net Use Of Fresh Water M3 Total Life Cycle : 0.0656705408
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0116789402
• Net Use Of Fresh Water M3 Distribution A4 : 0.000001224
• Net Use Of Fresh Water M3 Installation A5 : 0.0000010081
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.05396
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000293685
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 77.741394505
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.3549073321
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0004859215
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0000386374
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 77.3854545455
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0005080685
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000052677
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000024
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000001
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000050256
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000019
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0632787217
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0001953652
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000003461
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000637
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0630818182
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000011285
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 426.620469222
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 37.0640788663
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1931185459
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0141052495
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 389.1454545455
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.2037120148
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 457.4413338979
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 37.9026740604
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1933732594
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0141189649
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 419.1272727273
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.203894886
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 30.8298233848
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.8384645718
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0002577047
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000140053
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 29.9909090909
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001780121
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.6108342575
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.6108342575
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 425.009896209
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 35.4535058534
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1931185459
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0141052495
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 389.1454545455
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.2037120148
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1477272951
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1477272951
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 30.6820895586
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.6907307455
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0002577047
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000140053
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 29.9909090909
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001780121
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.005483459
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.005483459
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 1179.6578835938
• Air Pollution M3 Manufacturing A1 A3 : 290.3995070856
• Air Pollution M3 Distribution A4 : 0.5817786815
• Air Pollution M3 Installation A5 : 0.0911417129
• Air Pollution M3 Operational Energy Use B6 : 887.2545454545
• Air Pollution M3 End Of Life C1 C4 : 1.3309106593
• Water Pollution M3 Total Life Cycle : 1093.4479018204
• Water Pollution M3 Manufacturing A1 A3 : 220.4773875539
• Water Pollution M3 Distribution A4 : 2.2490548367
• Water Pollution M3 Installation A5 : 0.0974573013
• Water Pollution M3 Operational Energy Use B6 : 868.0909090909
• Water Pollution M3 End Of Life C1 C4 : 2.5330930376
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.1606231595
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.007854577
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0070547055
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0040692113
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0000624446
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000025858
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.1564472727
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.000041645
• Global Warming Kg Equivalent Co2 Total Life Cycle : 23.2020214297
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 2.4459679606
• Global Warming Kg Equivalent Co2 Distribution A4 : 0.0136761553
• Global Warming Kg Equivalent Co2 Installation A5 : 0.0008238349
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 20.6872727273
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.0542807517
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0004516527
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.000004456
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000002713
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0073945455
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000036514
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0011566605
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000143828
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000006121
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.0058645455
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000185046
• General Attributes
• Product Or Component Type : converter for Universal Pt100 probes
• Range Of Product : Harmony Analog
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=9263127&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 23.2020214297
• Circularity Profile : ENVEOLI2511011EN
• Environmental Disclosure : ENVPEP2511011EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Pep Code : ENVPEP2511011EN
• Pep Verification Date : 2016-09-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed1-2012 12 11
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
