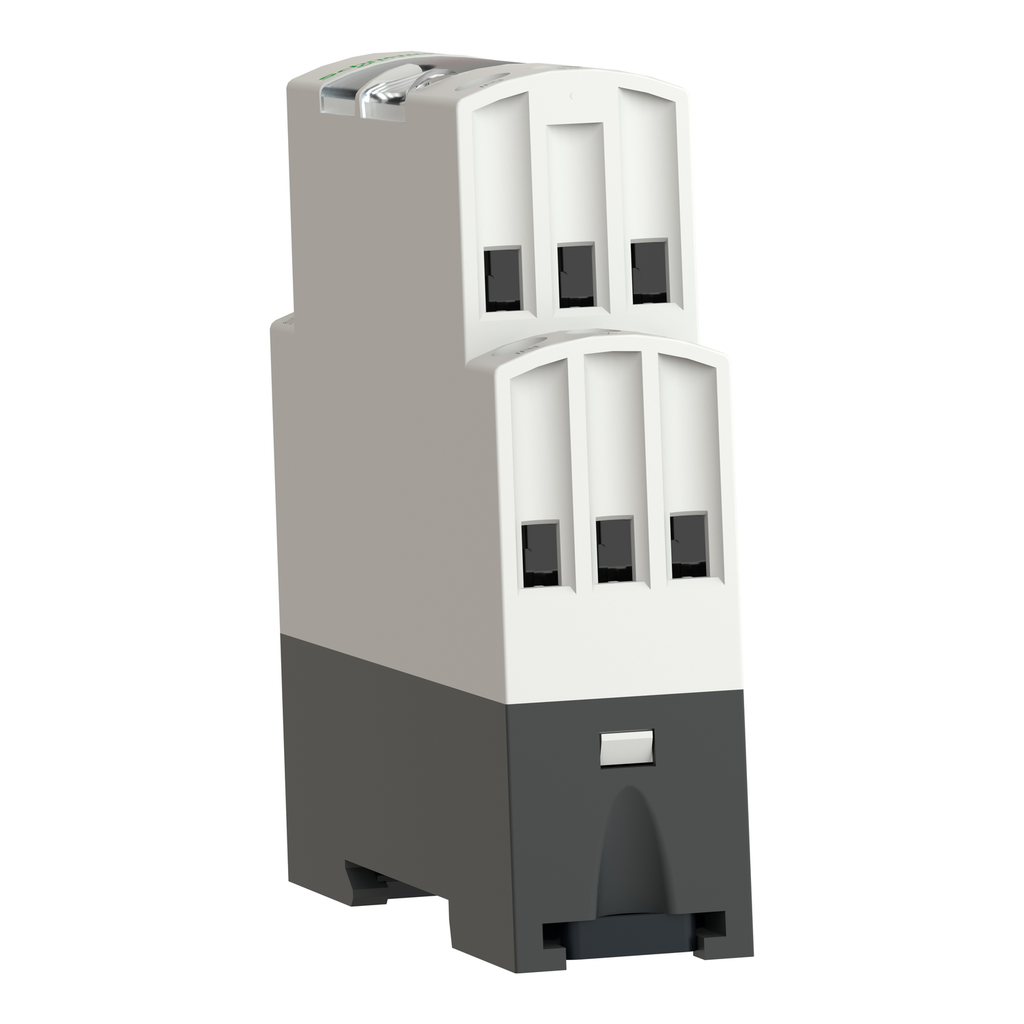

Harmony analog, Temperature transmitter, 0..100 °C/32..212 °F, for Universal Pt100 probes

ANALOG PT MODULE RMC +OPTIONS

SQDRMPT30BD RMPT30BD 3389110108965
144.53 / EA
http://schema.org/OutOfStock
Mayer-Harmony analog, Temperature transmitter, 0..100 °C/32..212 °F, for Universal Pt100 probes-1
  • Certifications: CSA, GL, UL
  • Current: 40 mA, 60 mA
  • Net Weight: 0.12 kg
  • Operating Temperature: 0-50 °C Mounting Side By Side || 0-60 °C 2 Cm Spacing
  • Standard: DIN 43760, EN/IEC 60584-1, EN/IEC 60751, EN/IEC 60947-1
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This temperature transmitter is part of the range of Harmony Analog interfaces. It is designed to convert signal of Pt100 probe into standard electrical signal which is compatible with automation platforms, controllers. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. The cables used to connect the converters to process equipment (PLCs) are standard cables, which are more cost effective than extension cables or compensation cables suitable for low level signals for Pt100 probes or thermocouples. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Specifications
This temperature transmitter is part of the range of Harmony Analog interfaces. It is designed to convert signal of Pt100 probe into standard electrical signal which is compatible with automation platforms, controllers. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. The cables used to connect the converters to process equipment (PLCs) are standard cables, which are more cost effective than extension cables or compensation cables suitable for low level signals for Pt100 probes or thermocouples. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0
  • Specifications
    • Range Of Product : Harmony Analog
    • Analogue Output Type : current 0...20 mA <= 500 Ohm || current 4...20 mA <= 500 Ohm || voltage 0...10 V >= 100 kOhm
    • Product Or Component Type : converter for Universal Pt100 probes
    • Analogue Input Type : temperature probe 0...100 °C/32..212 °F Pt 100 2, 3 or 4 wires
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • [Us] Rated Supply Voltage : 24 V DC non isolated +/- 20 %
    • Current Consumption : <= 40 mA voltage output || <= 60 mA current output
    • Safety Reliability Data : MTTFd = 32.9 years || B10d = 30437
    • Measurement Error : +/- 0.5 % of full scale 3 or 4 wires)20 °C || +/- 1 % of full scale 2 wires)20 °C || +/- 10 % of full scale20 °C electromagnetic interference of 10 V/m)
    • Clamping Connection Capacity : 1 x 2.5 mm² || 2 x 1.5 mm²
    • [Ui] Rated Insulation Voltage : 2000 V
    • Marking : CE
    • Analogue Output Voltage : -15...-11 V no input or input wire broken || 11...15 V no input or input wire broken
    • Net Weight : 0.12 kg
    • Fixing Mode : clip-on 35 mm symmetrical DIN rail) || fixed mounting plate)
    • Surge Withstand : 0.5 kV 1.2/50 µs IEC 61000-4-5
    • Maximum Wiring Resistance : 0.2 Ohm 2 wires
    • Local Signalling : for power ON LED (green)
    • Temperature Coefficient : 150 ppm/°C
    • Protection Type : reverse polarity protection on power supply || short-circuit protection on output || overvoltage protection on output (+/- 30 V) || reverse polarity protection on output
    • Tightening Torque : 0.6-1.1 N.m
    • Analogue Output Current : -30-0 mA no input or input wire broken || 22-30 mA no input or input wire broken
    • Repeat Accuracy : +/- 0.2 % full scale 20 °C || +/- 0.6 % full scale 60 °C
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1607005EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1607005EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Product Certifications : GL || UL || CSA
    • Standards : DIN 43760 || EN/IEC 60751 || EN/IEC 60947-1 || EN/IEC 60584-1
    • Ambient Air Temperature For Operation : 0-50 °C mounting side by side || 0-60 °C 2 cm spacing
    • Electromagnetic Compatibility : electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2
    • Shock Resistance : 50 gn 11 ms IEC 60068-2-27
    • Vibration Resistance : 5 gn 10-100 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP20 terminal block) || IP50 housing)
    • Disturbance Radiated/Conducted : CISPR 22 group 1 - class B || CISPR 11
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C
    • Fire Resistance : 850 °C IEC 60695-2-1 || 850 °C UL
    • Resistance To Fast Transients : 1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
