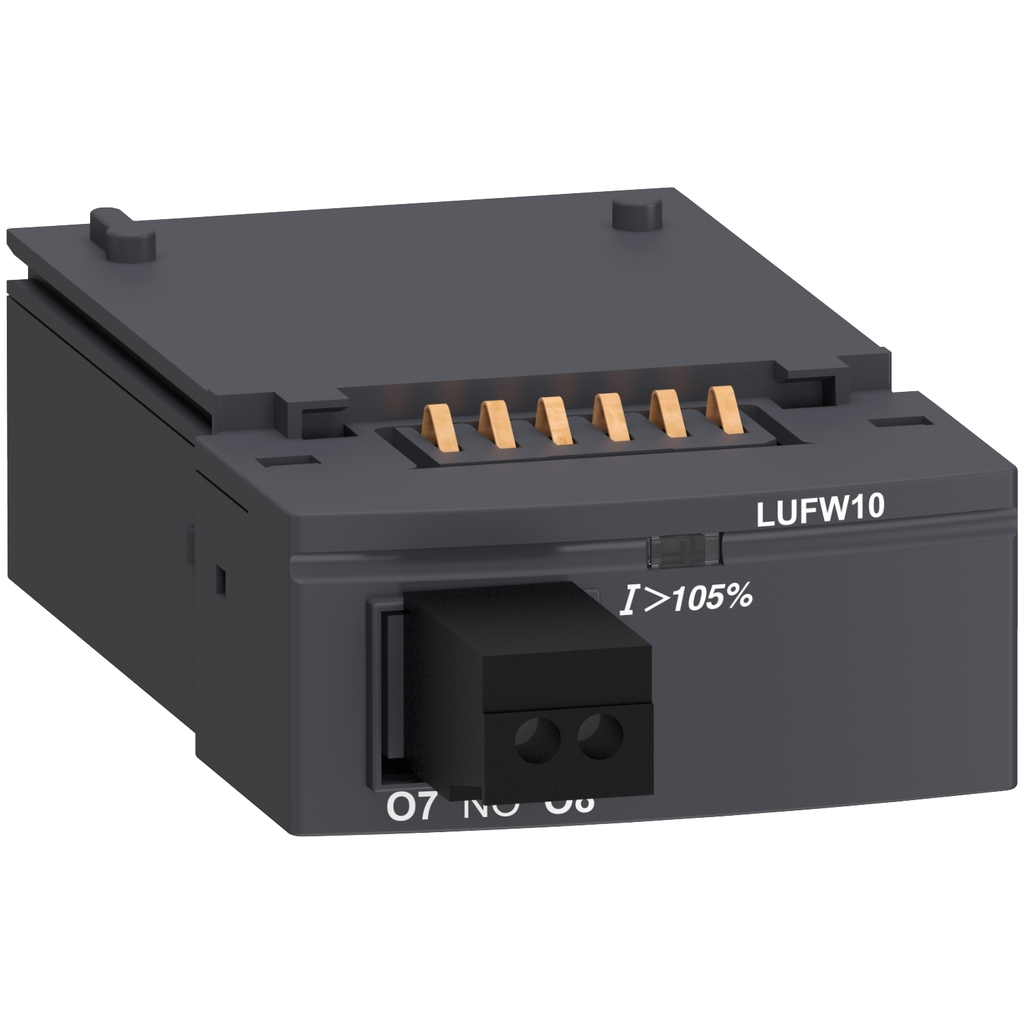

TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload alarm. It provides 1NO instantaneous contact rated 2A 230V AC / 24V DC, a LED status on front panel. The alarm is activated when the thermal overload state exceeds 88% of thermal tripping state, with an hysteresis of 5% between activation and deactivation. It is powered by the control unit. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).

• Discrete Output Function
• 1 NO AC-15) 230 V 400 VA 100000 cycles
• 1 NO DC-13) 24 V 50 W 100000 cycles
• Connections Terminals
• screw clamp terminals 2 0.2-1 mm² rigid without cable end
• screw clamp terminals 2 0.25-1 mm² flexible with cable end
• screw clamp terminals 2 0.5-1 mm² flexible with cable end
• screw clamp terminals 1 0.2-1.5 mm² flexible without cable end
• screw clamp terminals 1 0.2-1.5 mm² rigid without cable end
• screw clamp terminals 1 0.25-1.5 mm² flexible with cable end
• screw clamp terminals 2 0.2-1 mm² flexible without cable end
• ITH Conventional Free Air Thermal Current
• 2 A 70 °C
