SQUARE D

Function module, indication of motor load, TeSys Ultra, 4mA to 20mA

MTR LOAD INDICATION MOD 4-20 M

SQDLUFV2 LUFV2 3389110365498
201.41 / EA
http://schema.org/OutOfStock

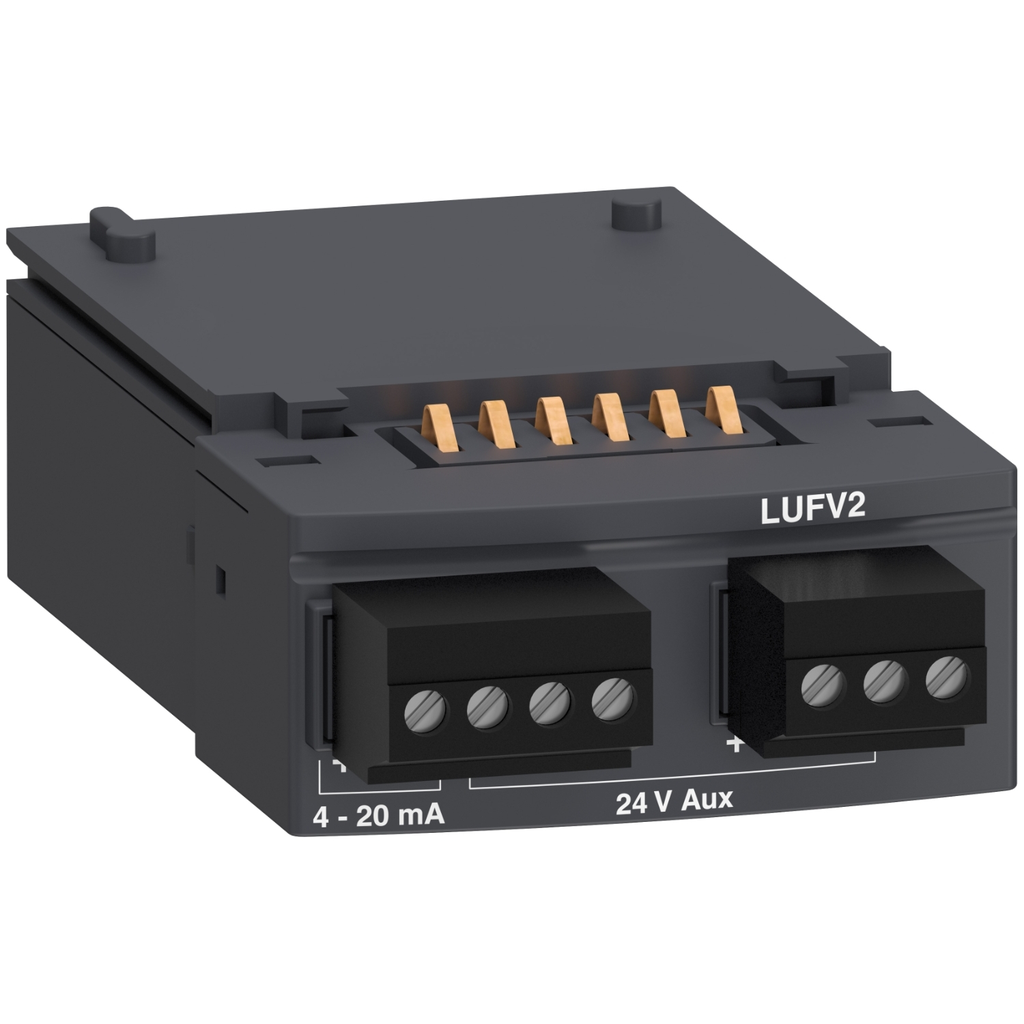

Mayer-DDS-Function module, indication of motor load, TeSys Ultra, 4mA to 20mA-1
  • Warranty Length: 18 mth
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for motor load monitoring. It provides a 4-20mA output signal, image of the load ratio, to be connected to a load impedance 100 Ohm typical (500 Ohm max). It measures the phase currents and computes the ratio I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, and of 0 to 3 for LUCC control units. It requires an external power supply 24V DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
QTY
  • Product Description
  • Specifications
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for motor load monitoring. It provides a 4-20mA output signal, image of the load ratio, to be connected to a load impedance 100 Ohm typical (500 Ohm max). It measures the phase currents and computes the ratio I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, and of 0 to 3 for LUCC control units. It requires an external power supply 24V DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
  • Complementary Attributes
    • US Rated Supply Voltage : 24 V DC, 24 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Load Impedance Ohmic : 100 Ohm typical, 100 Ohm typical, <= 500 Ohm
    • Measurement Accuracy : +/- 10 % with multifunction control unit 1 % of Ir, +/- 10 % with multifunction control unit 1 % of Ir, +/- 10 % with multifunction control unit 1 % of Ir, +/- 6 % with advanced control unit, +/- 6 % with advanced control unit
    • Tightening Torque : 0.2-0.25 N.m 2.5 mm flat, 0.2-0.25 N.m 2.5 mm flat, 0.2-0.25 N.m 2.5 mm flat
    • Connections Terminals : screw clamp terminals 1 0.14-1 mm² flexible without cable end, screw clamp terminals 1 0.14-1 mm² flexible without cable end, screw clamp terminals 1 0.14-1 mm² flexible without cable end, screw clamp terminals 1 0.14-1 mm² flexible without cable end, screw clamp terminals 1 0.14-1 mm² flexible without cable end, screw clamp terminals 1 0.14-1 mm² rigid without cable end, screw clamp terminals 1 0.14-1 mm² rigid without cable end, screw clamp terminals 1 0.14-1 mm² rigid without cable end, screw clamp terminals 1 0.14-1 mm² rigid without cable end, screw clamp terminals 1 0.14-1 mm² rigid without cable end, screw clamp terminals 1 0.25-0.5 mm² flexible with cable end, screw clamp terminals 1 0.25-0.5 mm² flexible with cable end, screw clamp terminals 1 0.25-0.5 mm² flexible with cable end, screw clamp terminals 1 0.25-0.5 mm² flexible with cable end, screw clamp terminals 1 0.25-0.5 mm² flexible with cable end, screw clamp terminals 1 0.25-1 mm² flexible with cable end, screw clamp terminals 1 0.25-1 mm² flexible with cable end, screw clamp terminals 1 0.25-1 mm² flexible with cable end, screw clamp terminals 1 0.25-1 mm² flexible with cable end, screw clamp terminals 1 0.25-1 mm² flexible with cable end, screw clamp terminals 2 0.14-0.5 mm² rigid without cable end, screw clamp terminals 2 0.14-0.5 mm² rigid without cable end, screw clamp terminals 2 0.14-0.5 mm² rigid without cable end, screw clamp terminals 2 0.14-0.5 mm² rigid without cable end, screw clamp terminals 2 0.14-0.5 mm² rigid without cable end, screw clamp terminals 2 0.14-0.75 mm² flexible without cable end, screw clamp terminals 2 0.14-0.75 mm² flexible without cable end, screw clamp terminals 2 0.14-0.75 mm² flexible without cable end, screw clamp terminals 2 0.14-0.75 mm² flexible without cable end, screw clamp terminals 2 0.14-0.75 mm² flexible without cable end, screw clamp terminals 2 0.25-0.34 mm² flexible with cable end, screw clamp terminals 2 0.25-0.34 mm² flexible with cable end, screw clamp terminals 2 0.25-0.34 mm² flexible with cable end, screw clamp terminals 2 0.25-0.34 mm² flexible with cable end, screw clamp terminals 2 0.25-0.34 mm² flexible with cable end, screw clamp terminals 2 0.5-0.5 mm² flexible with cable end, screw clamp terminals 2 0.5-0.5 mm² flexible with cable end, screw clamp terminals 2 0.5-0.5 mm² flexible with cable end, screw clamp terminals 2 0.5-0.5 mm² flexible with cable end, screw clamp terminals 2 0.5-0.5 mm² flexible with cable end
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-05-18
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • WEEE Applicability : Finished product
    • WEEE Scope : In
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Associated Cable Type : AWG 26...AWG 16
    • Compatibility Code : LUF
    • Device Short Name : LUF
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Package Weight Lbs : 50.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : function module
    • Range : TeSys
    • Range Of Product : TeSys Ultra
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : cross-selling relationship
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • General Attributes
    • Product Or Component Type : function module
    • Range Of Product : TeSys Ultra
  • Output Attributes
    • Type Of Output Signal : value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, value of I average/Ir ratio within the range of 0 to 3 for LUCC
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
