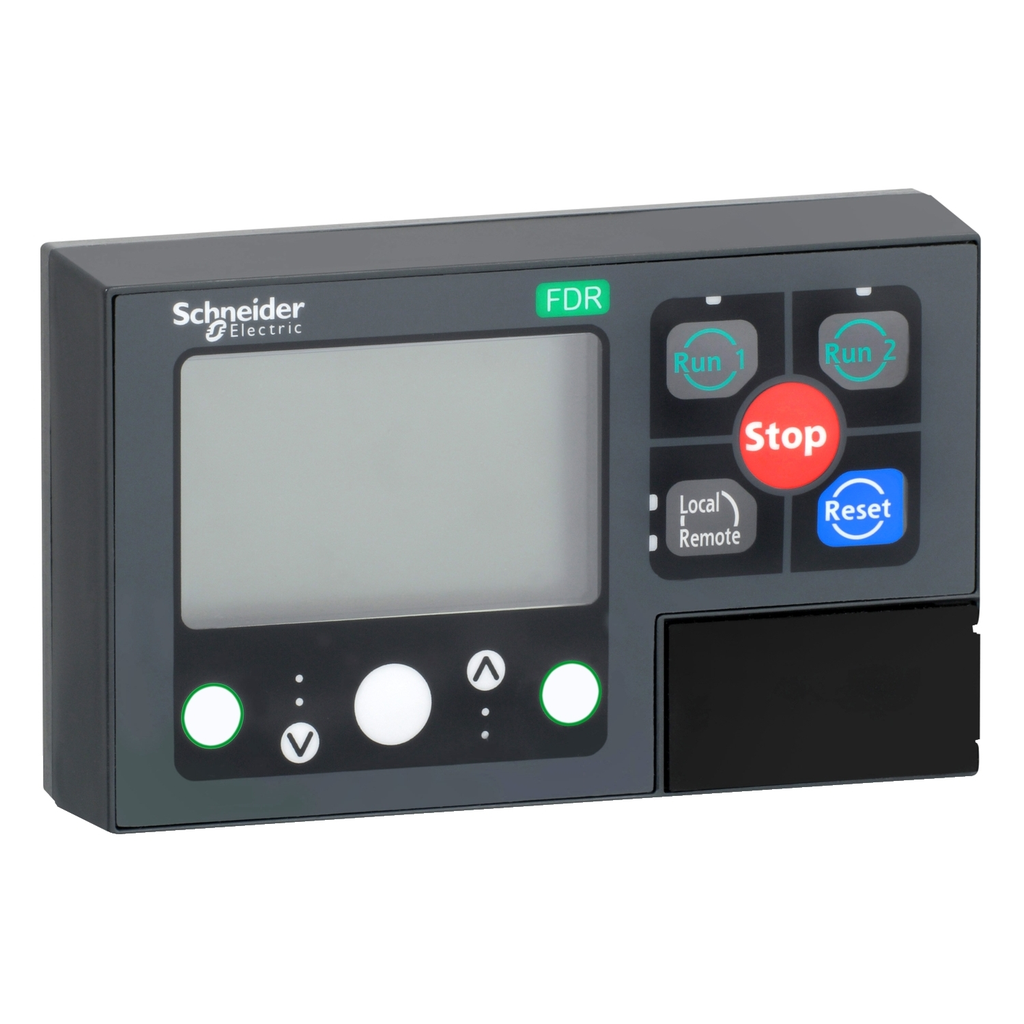

Operator control unit, TeSys T, with fast device replacement service

LTMCUF DISPLAY MODULE W/MEMORY

SQDLTMCUF LTMCUF 3606480930706
335.75 / EA
http://schema.org/OutOfStock
Mayer-DDS-Operator control unit, TeSys T, with fast device replacement service-1
  • Warranty Length: 18 mth
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management. The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions. TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection. TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater. This is a TeSys operator control unit that is used in conjuction with LTMR controller to configure the parameters, display the information about the controller, display detected faults and control the motor locally. This operator unit has Fast Device Replacement Service (FDR). This operator unit has LCD screen to display the information along with 5 control keys and 4 LED indicators and has 2 ports for RJ45 connectors that are used to connect to the PC and controller.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Connection : connection to a LTM R controller, RJ45 rear, connection to a PC, RJ45 front
    • Electromagnetic Compatibility : electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6, surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5, fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4
    • Mechanical Robustness : shocks15 Gn for 11 ms EN/IEC 60068-2-27, vibrations4 Gn, 5...300 Hz EN/IEC 60068-2-6
    • Carbon Footprint Of The Distribution Phase A4 : 0.15943080339159685, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.8 kg CO2 eq., 0.8389381952744047
    • Carbon Footprint Of The Installation Phase A5 : 0.017921104470689994, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 7 kg CO2 eq., 7.3665369709823905
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 9 kg CO2 eq., 9.261890479626357
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503009_V1
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : LTMCUF
    • Control Button Type : 10 push-button
    • Device Short Name : LTMCUF
    • Fire Resistance : 650 °C EN/IEC 60947-1
    • Flame Retardance : V2 conforming to UL 94
    • Halogen Free Status : Halogen free plastic parts product
    • Package Weight Lbs : 268.000 g
    • Power Dissipation : 1 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : operator control unit
    • Protective Treatment : TC 12 humidity cycles 55 °C EN/IEC 60068-2-30
    • Range : TeSys
    • Range Compatibility : TeSys T LTMR motor controller
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 18 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503009EN
    • Pep Verification Date : 2026-08-03
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.An Operator Control Unit (HMI) to configure, monitor, and control the connected load.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • IP Degree Of Protection : IP54 EN/IEC 60947-4-1 front), IP20 EN/IEC 60947-4-1 rear)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Silicon Free : Yes
    • Carbon Footprint : 17.64471755374544
    • Ambient Air Temperature For Operation : -20-60 °C
    • Circularity Profile : ENVEOLI2503009_V1
    • Environmental Disclosure : ENVPEP2503009EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503009EN
    • Pep Verification Date : 2026-08-03
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • General Attributes
    • Product Or Component Type : operator control unit
