Auxiliary contact block,TeSys Control,1 NC early break,for VN12,VN20

TESYS MINI-VARIO - AUXILIARY C

SQDVZN06 VZN06 3389110760064
28.20 / EA
http://schema.org/OutOfStock

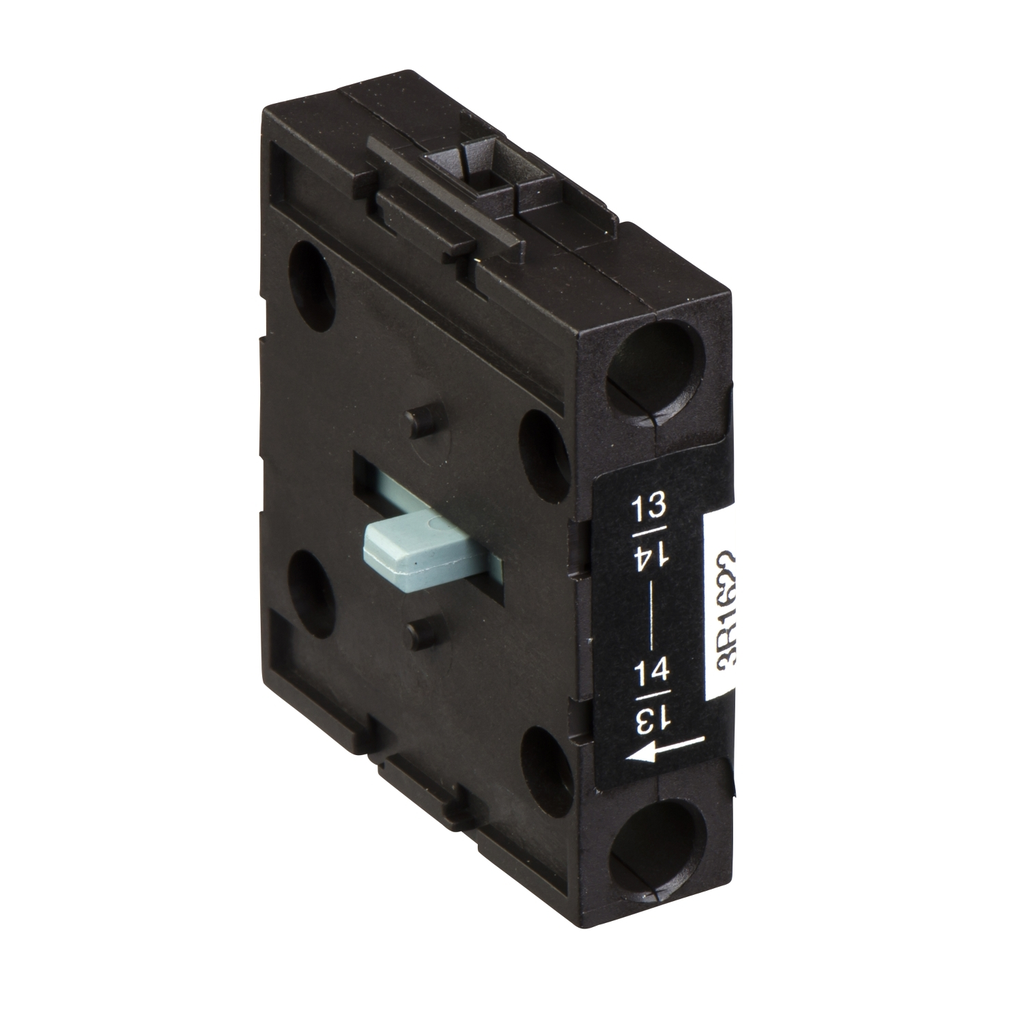

Mayer-DDS-Auxiliary contact block,TeSys Control,1 NC early break,for VN12,VN20-1
  • Country of Origin: Czechia
  • Depth: 39 mm
  • Height: 45.5 mm
  • Net Weight: 0.02 kg
  • Warranty Length: 18 mth
  • Weight: 0.02 kg
  • Width: 12 mm
VZN06 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. For use with Vario switch types VN12 and VN20, it includes 1NC contact rated for AC and DC operation. VZN06 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. For use with Vario switch types VN12 and VN20, it is mounted on one side of the switch body. It includes 1NC contact rated for AC operation until 690V and DC operation until 250V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Auxiliary contacts module, including 1NC "early break" contact, for Vario switch types VN12 and VN20. Rated for operation in AC-15 operation until 690V and DC-01 operation until 250V. To be installed on one side of a switch body.
QTY
  • Product Description
  • Specifications
VZN06 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. For use with Vario switch types VN12 and VN20, it includes 1NC contact rated for AC and DC operation. VZN06 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. For use with Vario switch types VN12 and VN20, it is mounted on one side of the switch body. It includes 1NC contact rated for AC operation until 690V and DC operation until 250V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Auxiliary contacts module, including 1NC "early break" contact, for Vario switch types VN12 and VN20. Rated for operation in AC-15 operation until 690V and DC-01 operation until 250V. To be installed on one side of a switch body.
  • Environment
    • Product Certifications : CSA || GL || UL
    • Ambient Air Temperature For Operation : -20-50 °C
    • Standards : IEC 60947-5
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Protective Treatment : TC
    • Fire Resistance : 960 °C IEC 60695-2-1
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2211017
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Scip Number : f532c3bb-07a1-406c-b2d3-1d0f85334c59
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 4.986699999999999
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 2.032718945730005
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0.1 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 8 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.8125509319039872
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 7.97094372915716
  • Complementary
    • [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
    • Height : 45.5 mm
    • [Ith] Conventional Free Air Thermal Current : 6 A
    • Range Compatibility : TeSys TeSys VARIO VCFN switch disconnector
    • [Ithe] Conventional Enclosed Thermal Current : 4 A
    • Net Weight : 0.02 kg
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV
    • Connections - Terminals : screw clamp terminals 2 0.75-1.5 mm² flexible - with cable end || screw clamp terminals 2 1-2.5 mm² solid
    • Electrical Durability : 30000 cycles DC-11 || 50000 cycles AC-21
    • Mechanical Durability : 50000 cycles
    • Width : 12 mm
    • Tightening Torque : 0.7-0.7 N.m screw clamp terminals
    • Depth : 39 mm
  • Specifications
    • Country of Origin : Czechia
    • Width : 12 mm
    • Height : 45.5 mm
    • Weight : 0.02 kg
    • Product Or Component Type : auxiliary contact block
    • Performance Level : standard
    • Range : TeSys
    • Mounting Location : left || right
    • Contact Operation : early-break
    • Contacts Type And Composition : 1 NC
    • Product Compatibility : VN12 || VN20
    • Device Short Name : VZN
