SQUARE D

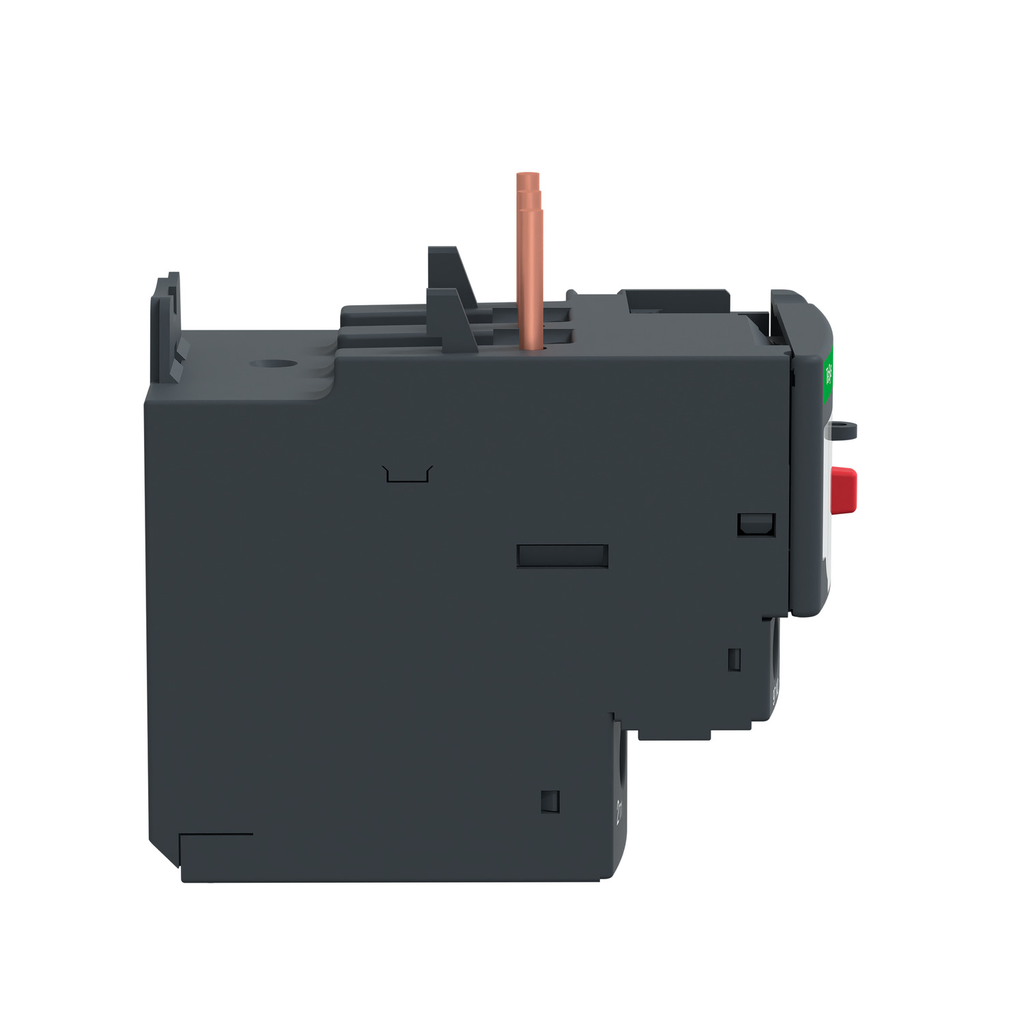

TeSys Deca, thermal overload relay, 12 to 18 A, class 10A

BIMETALLIC OVERLOAD RELAY 600V

SQDLRD21 LRD21 3389110346831
125.87 / EA
http://schema.org/OutOfStock
Mayer-DDS-TeSys Deca, thermal overload relay, 12 to 18 A, class 10A-2
  • Country of Origin: France
  • Depth: 2.76 in
  • Height: 2.6 in
  • Warranty Length: 18 mth
  • Width: 1.77 in
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines
QTY
  • Product Description
  • Features
  • Specifications
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines
  • Control Type
    • Red push-button stop
    • Blue push-button reset
  • Connections Terminals
    • control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end
    • control circuit screw c
  • Mounting Support
    • plate, with specific accessories
    • rail, with specific accessories
    • under contactor
  • Tripping Threshold
    • 1.14 +/- 0.06 Ir IEC 60947-4-1
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.01635889814277638
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.2 kg CO2 eq.
    • 0.21678519324421383
  • Standards
    • EN/IEC 60947-4-1
    • EN/IEC 60947-5-1
    • UL 60947-4-1
    • UL 60947-5-1
    • CSA C22.2 No 60947-4-1
    • CSA C22.2 No 60947-5-1
    • GB/T 14048.4
    • GB/T 14048.5
    • EN 50495
  • Ue Rated Operational Voltage
    • 690 V AC 0...400 Hz power circuit IEC 60947-4-1
  • Ui Rated Insulation Voltage
    • power circuit 600 V CSA
    • power circuit 600 V UL
    • power circuit 690 V IEC 60947-4-1
  • Ip Degree Of Protection
    • IP20 conforming to IEC 60529
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 1 kg CO2 eq.
    • 1.0267614686619415
  • Accessories
    • LAD7305
    • XB5AL84101
    • XB5AA86102
  • Thermal Overload Class
    • class 10A IEC 60947-4-1
  • Flame Retardance
    • V1 conforming to UL 94
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 12 kg CO2 eq.
    • 11.633004615445152
  • Dielectric Strength
    • 1.89 kV 50 Hz IEC 60947-1
  • Auxiliaries
    • LAD7B106
    • LAD703F
    • LAD703M
    • LAD7C1
  • Permissible Current
    • 1.5 A 240 V AC-15 signalling circuit
    • 0.1 A 250 V DC-13 signalling circuit
    • 0.1 A 250 V DC-13 signalling cir
  • Carbon Footprint Of The Distribution Phase A4
    • 0.024163479198025903
    • 0 kg CO2 eq.
  • Tightening Torque
    • control circuit 1.7 N.m screw clamp terminals
    • power circuit 2.5 N.m screw clamp terminals
    • power circuit 2.5 N.m screw
  • Ith Conventional Free Air Thermal Current
    • 5 A signalling circuit
  • Mechanical Robustness
    • vibrations6 Gn IEC 60068-2-6
    • shocks15 Gn for 11 ms IEC 60068-2-7
  • Network Type
    • AC
    • DC
  • Product Compatibility
    • LC1D32
    • LC1D18
    • LC1D25
    • LC1D38
  • Associated Fuse Rating
    • 4 A gG for signalling circuit
    • 4 A BS for signalling circuit
  • Ambient Air Temperature For Operation
    • -20-60 °C without derating IEC 60947-4-1
  • Range
    • TeSys
    • TeSys Deca
  • Product Certifications
    • IEC
    • UL
    • CSA
    • CCC
    • EAC
    • BV
    • RINA
    • DNV-GL
    • LROS (Lloyds register of shipping)
    • ATEX INERIS
    • UKCA
  • Complementary Attributes
    • Uimp Rated Impulse Withstand Voltage : 6 kV
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-04
    • ETIM 10 : EC000106
    • Html Descr : TeSys LRD thermal overload relays - 12...18 A - class 10A
    • Manufacturer : Schneider Electric
    • Device Type : Relay, Control & Measurement - Protection relay
    • Serviceability : No
    • Traceability : No
    • Manufacturing Carbon Footprint : 1.02676146866194
    • Distribution Carbon Footprint : 2.41634791980259e-02
    • Installation Carbon Footprint : 1.63588981427764e-02
    • Use Carbon Footprint : 11.6330046154452
    • End Of Life Carbon Footprint : 0.216785193244214
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI0802006
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 627
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Compatibility Code : LRD
    • Device Short Name : LRD
    • Network Frequency : 0...400 Hz
    • Package Weight Lbs : 147.000 g
    • Phase Failure Sensitivity : tripping current 130 % of Ir on two phase, the last one at 0
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : differential thermal overload relay
    • Relay Application : motor protection
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Compensation : -20-60 °C
    • Thermal Protection Adjustment Range : 12-18 A
    • Total Lifecycle Carbon Footprint : 13 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 12.917073654692109
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : differential thermal overload relay
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=640262&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 12.9170736546921
    • Ambient Air Temperature For Storage : -60-70 °C
    • Circularity Profile : ENVEOLI0802006
    • Climatic Withstand : IACS E10
    • Environmental Disclosure : ENVPEP080206EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
    • Height : 2.6 in
    • Width : 1.77 in
    • Depth : 2.76 in
