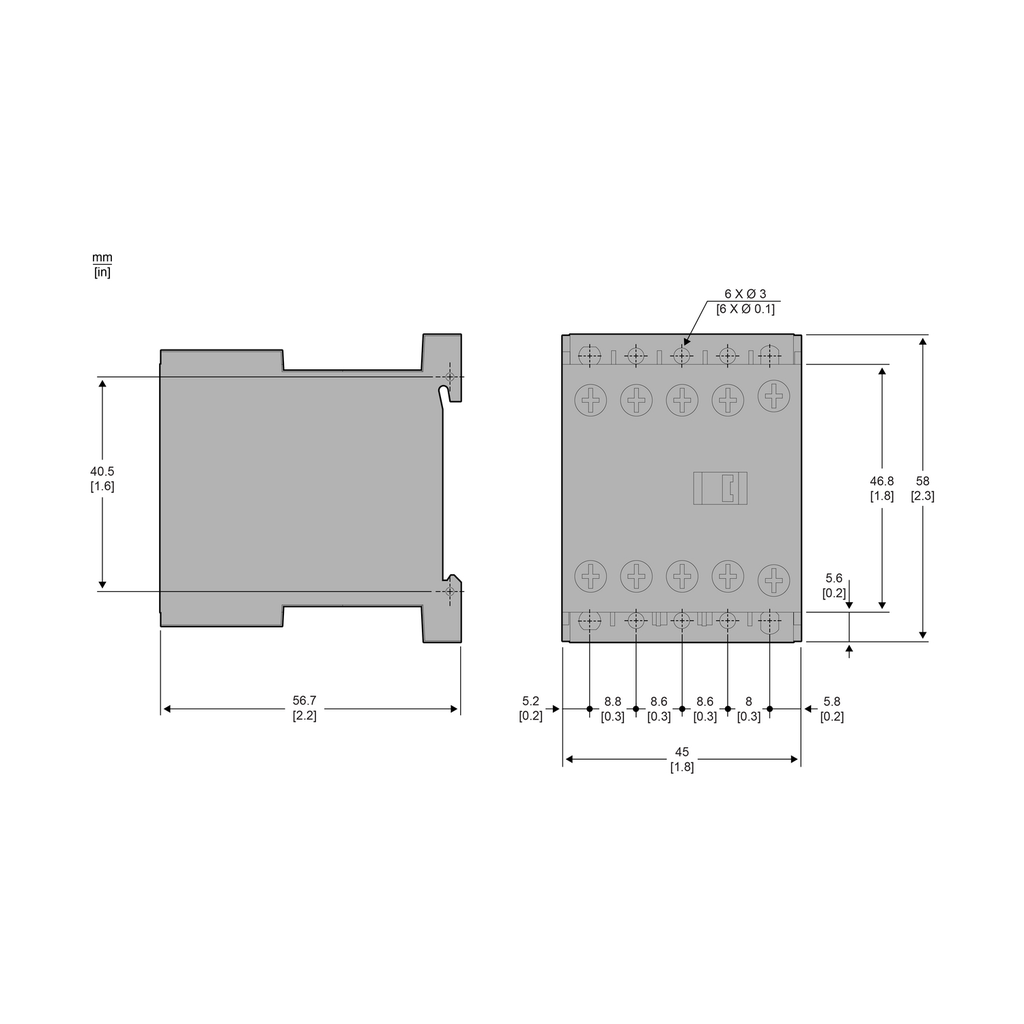

TeSys K contactor, 4 poles (2NO+2NC), for non-inductive load control applications up to 20A/690V AC-1. It provides a 24V DC coil, without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4
• Complementary Attributes
• Control Circuit Voltage Limits : operational: 0.8...1.15 Uc (at <50 °C), drop-out: >= 0.10 Uc (at <50 °C)
• Rated Breaking Capacity : 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947
• ICW Rated Short Time Withstand Current : 90 A 50 °C - 1 s for power circuit, 85 A 50 °C - 5 s for power circuit, 80 A 50 °C - 10 s for power circuit, 60 A 50 °C - 30 s for power circuit, 45 A 50 °C - 1 min for power circuit, 40 A 50 °C - 3 min for power circuit, 20 A 50 °C - >= 15 min for power circuit
• UE Rated Operational Voltage : power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz
• UI Rated Insulation Voltage : power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA C22.2 No 14
• Control Circuit Type : DC standard
• IRMS Rated Making Capacity : 110 A AC for power circuit conforming to IEC 60947
• Maximum Operating Rate : 3600 cyc/h
• IE Rated Operational Current : 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
• UC Control Circuit Voltage : 24 V DC
• UIMP Rated Impulse Withstand Voltage : 8 kV
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Associated Fuse Rating : 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit
• Flame Retardance : V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102
• Operating Time : 30...40 ms coil energisation and NO closing, 10 ms coil de-energisation and NO opening, 25...35 ms coil energisation and NC opening, 15 ms coil de-energisation and NC closing
• Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Tightening Torque : 0.8-1.3 N.m screw clamp terminals Philips No 2, 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm
• ICW Rated Short Time Withstand Current : 90 A 50 °C - 1 s for power circuit, 85 A 50 °C - 5 s for power circuit, 80 A 50 °C - 10 s for power circuit, 60 A 50 °C - 30 s for power circuit, 45 A 50 °C - 1 min for power circuit, 40 A 50 °C - 3 min for power circuit, 20 A 50 °C - >= 15 min for power circuit
• ITH Conventional Free Air Thermal Current : 20 A (at 60 °C) for power circuit, 10 A (at 50 °C) for signalling circuit
• Carbon Footprint Of The Distribution Phase A4 : 0.08748530601806714, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.37238162354829996
• Carbon Footprint Of The Installation Phase A5 : 0.013472865458001313, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.2191683759210354
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 149 kg CO2 eq., 148.7125900157399
• Connections Terminals : screw clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible without cable end, screw clamp terminals 1 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 2 0.75-4 mm²flexible without cable end, screw clamp terminals 2 0.34-1.5 mm²flexible with cable end, power circuit screw clamp terminals 2 1.5-1.5 mm²flexible with cable end
• Add Ons : LA1KN22, LA1KN11, LA1KN40, LA1KN31, LA1KN20, LA1KN04, LA1KN02, LA1KN13
• Auxiliaries : LA4KE1B, LA4KC1B
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1503003
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Average Impedance : 3 mOhm - Ith 20 A 50 Hz for power circuit
• Coil Technology : without built-in suppressor module
• Compatibility Code : LP1K
• Contactor Application : resistive load
• Device Short Name : LP1K
• Electrical Durability : 0.16 Mcycles 20 A AC-1 <= 690 V
• Heat Dissipation : 1.3-1.3 W
• Hold In Power Consumption In W : 3-3 W 20 °C
• Inrush Power In W : 3-3 W 20 °C)
• Package Weight Lbs : 221.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contactor
• Range : TeSys
• Range Of Product : TeSys K
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 150 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• IE Rated Operational Current : 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1503003
• Pep Verification Date : 2025-11-21
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Rated Thermal Current Ith : 20 A
• Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 150.4050981866853
• Ambient Air Temperature For Operation : -25-50 °C
• Circularity Profile : ENVEOLI1503003
• Environmental Disclosure : ENVPEP1503003
• IP Degree Of Protection : IP2X
• Operating Altitude : 6561.68 ft (2000 m) without derating
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1503003
• Pep Verification Date : 2025-11-21
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : contactor
• Range Of Product : TeSys K
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
