SQUARE D

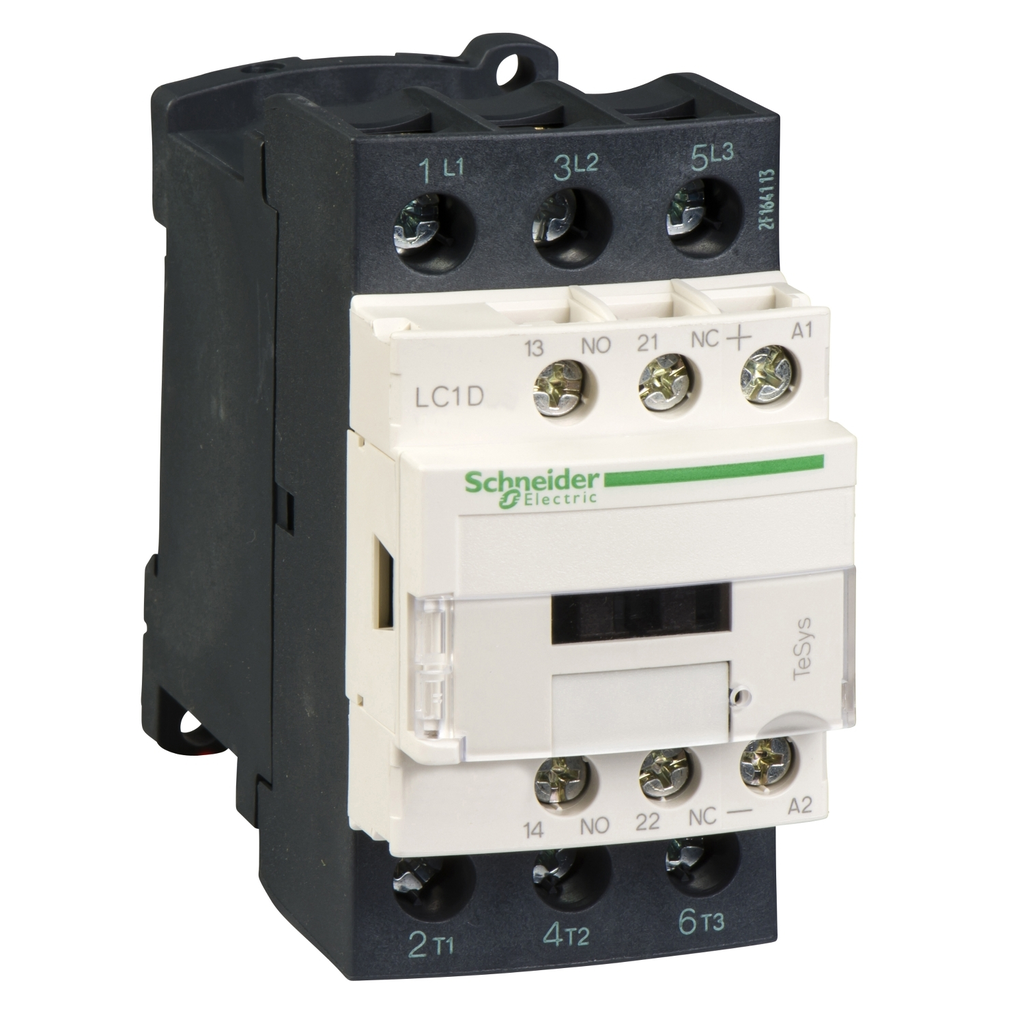

IEC contactor, TeSys D, nonreversing, 32A, 20HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

IEC contactor, TeSys D, nonreversing, 32A, 20HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

SQDLC1D326BLS207 LC1D326BLS207 3389118234604
308.40 / EA
http://schema.org/OutOfStock
Mayer-DDS-IEC contactor, TeSys D, nonreversing, 32A, 20HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style-1
  • Depth: 101 mm
  • Warranty Length: 18 mth
This TeSys D contactor has been designed for motor control in railway applications. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 32A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 5HP at 240VAC single phase. Contactor is supplied with a low consumption 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.98 inches deep. It weighs 1.18 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
QTY
  • Features
  • Specifications
  • Features
    • TeSys D and TeSys K S207 series contactors are designed for all railway power switching and controlling applications
    • TeSys D, the highest choice for demanding or wide power range applications
    • Complying with the railway European standard EN45545 R22 HL3.
    • Used in heating, lighting, door control, signaling, brake and air conditioning compressors.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : IEC, CCC, EAC, UA, TR, UKCA, CB
    • Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, EN 45545: R22 HL3, EN 45545: R26 HL3, DIN 5510-2
  • Complementary Attributes
    • Control Circuit Voltage Limits : 0.1...0.25 Uc (-40-70 °C):drop-out DC, 0.7...1.25 Uc (-40-70 °C):operational DC
    • IRMS Rated Making Capacity : 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 550 A at 440 V for power circuit conforming to IEC 60947
    • Control Circuit Type : DC low consumption
    • Maximum Operating Rate : 3600 cyc/h 60 °C
    • Minimum Switching Current : 5 mA for signalling circuit
    • Minimum Switching Voltage : 17 V for signalling circuit
    • Rated Breaking Capacity : 550 A at 440 V for power circuit conforming to IEC 60947
  • Important Information Attributes
    • Associated Fuse Rating : 10 A gG for signalling circuit conforming to IEC 60947-5-1, 63 A gG at <= 690 V coordination type 1 for power circuit, 63 A gG at <= 690 V coordination type 2 for power circuit
    • Contactor Application : resistive load, motor control
    • Electrical Durability : 1.65 Mcycles 32 A AC-3 <= 440 V, 1.4 Mcycles 50 A AC-1 <= 440 V, 1.65 Mcycles 32 A AC-3e <= 440 V
    • Insulation Resistance : > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
    • Mechanical Robustness : vibrations contactor open 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz), shocks contactor closed 15 Gn for 11 ms), shocks contactor open 8 Gn for 11 ms)
    • Motor Power KW : 15 kW at 380/400 V AC 50 Hz (AC-3e), 15 kW at 415 V AC 50 Hz (AC-3e), 15 kW at 440 V AC 50 Hz (AC-3e), 18.5 kW at 500 V AC 50 Hz (AC-3e), 18.5 kW at 660/690 V AC 50 Hz (AC-3e), 7.5 kW at 220/230 V AC 50 Hz (AC-3), 15 kW at 380/400 V AC 50 Hz (AC-3), 15 kW at 415 V AC 50 Hz (AC-3), 15 kW at 440 V AC 50 Hz (AC-3), 18.5 kW at 500 V AC 50 Hz (AC-3), 18.5 kW at 660/690 V AC 50 Hz (AC-3), 7.5 kW at 220/230 V AC 50 Hz (AC-3e)
    • Mounting Support : rail, plate
    • Non Overlap Time : 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
    • Operating Time : 77 ±15 % ms closing, 25 ±20 % ms opening
    • Power Dissipation Per Pole : 2 W AC-3, 5 W AC-1, 2 W AC-3e
    • Range : TeSys, TeSys Deca
    • Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
    • Tightening Torque : power circuit 2.5 N.m lugs-ring terminals flat Ø 6 mm M4, control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5, control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5, power circuit 2.5 N.m lugs-ring terminals Philips No 2 M4
    • Utilisation Category : AC-3, AC-1, AC-3e
    • Icw Rated Short Time Withstand Current2 : 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit, 260 A 40 °C - 10 s for power circuit, 430 A 40 °C - 1 s for power circuit, 60 A 40 °C - 10 min for power circuit, 138 A 40 °C - 1 min for power circuit
    • Ie Rated Operational Current2 : 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
    • Ith Conventional Free Air Thermal Current2 : 10 A (at 60 °C) for signalling circuit, 50 A (at 60 °C) for power circuit
    • Ui Rated Insulation Voltage2 : power circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1
    • Carbon Footprint Of The Distribution Phase A4 : 1.0621476357331725, 1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 1.3466448673004334, 1 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0351461288464999
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 3.144619427350895
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 23 kg CO2 eq., 22.826264066745733
    • Connections Terminals : control circuit: lugs-ring terminals - external diameter: 8 mm, power circuit: lugs-ring terminals - external diameter: 12 mm
    • Connections Terminals3 : control circuit: lugs-ring terminals - external diameter: 8 mm, power circuit: lugs-ring terminals - external diameter: 12 mm
    • Icw Rated Short Time Withstand Current5 : 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit, 260 A 40 °C - 10 s for power circuit, 430 A 40 °C - 1 s for power circuit, 60 A 40 °C - 10 min for power circuit, 138 A 40 °C - 1 min for power circuit
    • Ie Rated Operational Current5 : 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
    • Ith Conventional Free Air Thermal Current5 : 10 A (at 60 °C) for signalling circuit, 50 A (at 60 °C) for power circuit
    • Ui Rated Insulation Voltage5 : power circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1102029EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Persona Type Ids : OM8
    • Persona Type Names : OEM - Control Panelbuilder
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Average Impedance : 2 mOhm - Ith 50 A 50 Hz for power circuit
    • Coil Technology : with integral suppression device
    • Compatibility Code : LC1D
    • Contact Compatibility : M5
    • Device Short Name : LC1D
    • Fire Resistance : 850 °C IEC 60695-2-1
    • Flame Retardance : V0 conforming to UL 94
    • Hold In Power Consumption In W : 4-4 W 20 °C
    • Inrush Power In W : 4-4 W 20 °C)
    • Mechanical Durability : 30 Mcycles
    • Overvoltage Category : III
    • Package Weight Lbs : 556.000 g
    • Pole Contact Composition : 3 NO
    • Poles Description : 3P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : contactor
    • Range Of Product : TeSys Deca
    • Returnability : No
    • Signalling Circuit Frequency : 25...400 Hz
    • Sustainable Packaging : Yes
    • Time Constant : 37 ms
    • Total Lifecycle Carbon Footprint : 28 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Uc Control Circuit Voltage2 : 24 V DC
    • Ue Rated Operational Voltage2 : power circuit <= 690 V AC 25...400 Hz
    • Uimp Rated Impulse Withstand Voltage2 : 6 kV IEC 60947
    • Medium Desc : IEC contactor, TeSys D, nonreversing, 32A, 20HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2205004EN
    • Database Version : 2023-02
    • Pep Verification Date : 2025-08-11
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : France, FR
    • Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; France, FR
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; France, FR
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; France, FR
    • Global Commercial Status : Commercialised
    • Product Name : TeSys Deca
    • Uc Control Circuit Voltage5 : 24 V DC
    • Ue Rated Operational Voltage5 : power circuit <= 690 V AC 25...400 Hz
    • Uimp Rated Impulse Withstand Voltage5 : 6 kV IEC 60947
  • Environment Attributes Main
    • Take Back : Nej, No
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
    • Climatic Withstand : IACS E10, IEC 60947-1 Annex Q category D
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 28.414822125976734
    • Ambient Air Temperature For Storage : -60-80 °C
    • Circularity Profile : ENVEOLI1102029EN
    • Environmental Disclosure : ENVPEP2205004EN
    • IP Degree Of Protection : IP20 front face IEC 60529
    • Operating Altitude : 0...9842.52 ft (0...3000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2205004EN
    • Pep Verification Date : 2025-08-11
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : contactor
    • Range Of Product : TeSys Deca
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 101 mm
