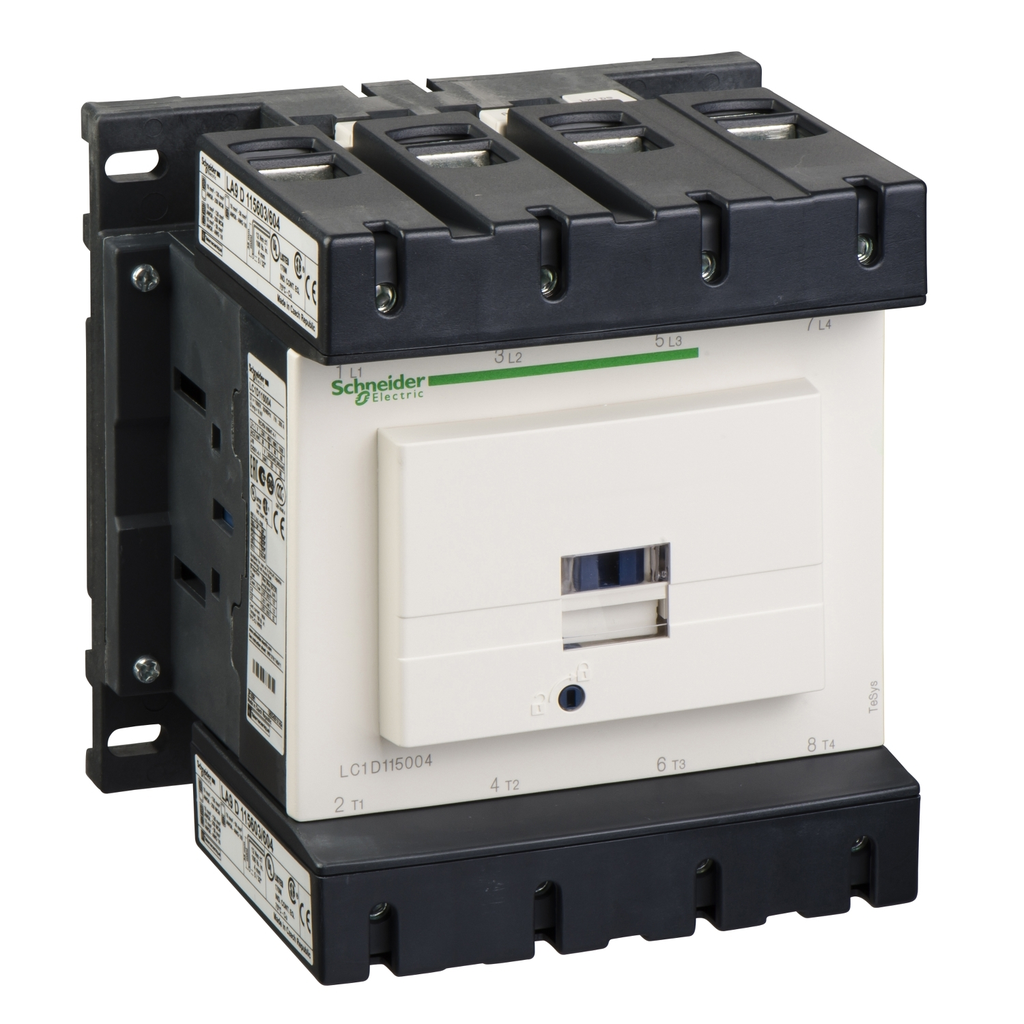

IEC contactor, TeSys Deca, nonreversing, 200A resistive, 4 pole, 4 NO, 240VAC 50/60Hz coil, open style

CONTACTOR 600VAC 115AM,P IEC

SQDLC1D115004U7 LC1D115004U7 3389110051797
773.70 / EA
http://schema.org/OutOfStock
  • Country of Origin: Czechia
  • Depth: 132 mm
  • Height: 158 mm
  • Net Weight: 2.86 kg
  • Warranty Length: 18 mth
  • Weight: 2.86 kg
  • Width: 150 mm
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 200A resistive load rating. Contactor is supplied with a 240 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 5.91 inches wide and 5.20 inches deep. It weighs 6.31 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
QTY
  • Product Description
  • Features
  • Specifications
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 200A resistive load rating. Contactor is supplied with a 240 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 5.91 inches wide and 5.20 inches deep. It weighs 6.31 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL || CSA || GOST || RINA || BV || GL || LROS (Lloyds register of shipping) || DNV || CCC || UKCA
    • Net Weight : 2.86 kg
    • Flame Retardance : V1 conforming to UL 94
    • Operating Altitude : 0...9842.52 ft (0...3000 m)
    • Width : 150 mm
    • Depth : 132 mm
    • Permissible Ambient Air Temperature Around The Device : -40-60 °C || 60-70 °C with derating
    • Height : 158 mm
    • Standards : CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
    • Climatic Withstand : IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
    • Protective Treatment : THIEC 60068-2-30
    • Ip Degree Of Protection : IP20 front face IEC 60529
    • Mechanical Robustness : vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 6 Gn for 11 ms)
    • Fire Resistance : 850 °C IEC 60695-2-1
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Mercury Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Global Warming ; Total Life Cycle​ : 221 kg CO2 eq.
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 220.62187672004626
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP060301EN
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : a530c666-91dd-4119-8d61-f1c22a361ecb
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI100405EN
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Power Dissipation Per Pole : 24 W AC-1
    • Average Impedance : 0.6 mOhm - Ith 200 A 50 Hz for power circuit
    • Mounting Support : plate || rail
    • Inrush Power In Va : 280-350 VA 60 Hz cos phi 0.8 (at 20 °C) || 280-350 VA 50 Hz cos phi 0.8 (at 20 °C)
    • [Uimp] Rated Impulse Withstand Voltage : 8 kV IEC 60947
    • Pole Contact Composition : 4 NO
    • Connections - Terminals : control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end || power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end || power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end || power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end || power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end || power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end || power circuit: connector 2 10-50 mm² - cable stiffness: solid without cable end
    • Coil Technology : built-in bidirectional peak limiting diode suppressor
    • Maximum Operating Rate : 2400 cyc/h at 60 °C
    • Hold-In Power Consumption In Va : 2-18 VA 60 Hz cos phi 0.3 (at 20 °C) || 2-18 VA 50 Hz cos phi 0.3 (at 20 °C)
    • Overvoltage Category : III
    • [Ui] Rated Insulation Voltage : power circuit 600 V CSA || power circuit 600 V UL || power circuit 1000 V IEC 60947-4-1
    • Protective Cover : with
    • [Ith] Conventional Free Air Thermal Current : 200 A (at 60 °C) for power circuit
    • Control Circuit Voltage Limits : 0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz || 0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz || 1...1.15 Uc (55-70 °C):operational AC 50/60 Hz
    • Control Circuit Type : AC 50/60 Hz
    • Safety Reliability Level : B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
    • Pollution Degree : 3
    • Rated Breaking Capacity : 1100 A at 440 V for power circuit conforming to IEC 60947
    • Irms Rated Making Capacity : 1260 A at 440 V for power circuit conforming to IEC 60947
    • Associated Fuse Rating : 250 A gG at <= 690 V coordination type 1 for power circuit || 200 A gG at <= 690 V coordination type 2 for power circuit
    • Operating Time : 6...20 ms opening || 20...50 ms closing
    • Tightening Torque : control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector hexagonal 4 mm || control circuit 1.2 N.m screw clamp terminals pozidriv No 2
    • Electrical Durability : 0.8 Mcycles 200 A AC-1 <= 440 V
    • Mechanical Durability : 8 Mcycles
    • Compatibility Code : LC1D
    • [Icw] Rated Short-Time Withstand Current : 250 A 40 °C - 10 min for power circuit || 550 A 40 °C - 1 min for power circuit || 950 A 40 °C - 10 s for power circuit || 1100 A 40 °C - 1 s for power circuit
    • Heat Dissipation : 3-8 W at 50/60 Hz
  • Specifications
    • Country of Origin : Czechia
    • Width : 150 mm
    • Height : 158 mm
    • Weight : 2.86 kg
    • [Uc] Control Circuit Voltage : 240 V AC 50/60 Hz
    • [Ue] Rated Operational Voltage : power circuit <= 1000 V AC 25...400 Hz || power circuit <= 460 V DC
    • Contactor Application : resistive load
    • Product Or Component Type : contactor
    • Utilisation Category : AC-1 || AC-3 || AC-3e || AC-4
    • [Ie] Rated Operational Current : 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
    • Poles Description : 4P
    • Range Of Product : TeSys Deca
    • Range : TeSys
    • Device Short Name : LC1D
