IEC contactor, TeSys D, nonreversing, 125A resistive, 4 pole, 2 NO and 2 NC, 24VDC coil, open style

CONTACTOR 575VAC 80AMP IEC +OP

SQDLP1D80008BD LP1D80008BD 785901942955
655.22 / EA
  • Certifications: BV, CCC, CSA, DNV, EAC, GL, LROS (Lloyds Register Of Shipping), UKCA, UL
  • Contact Configuration: 2 NO + 2 NC

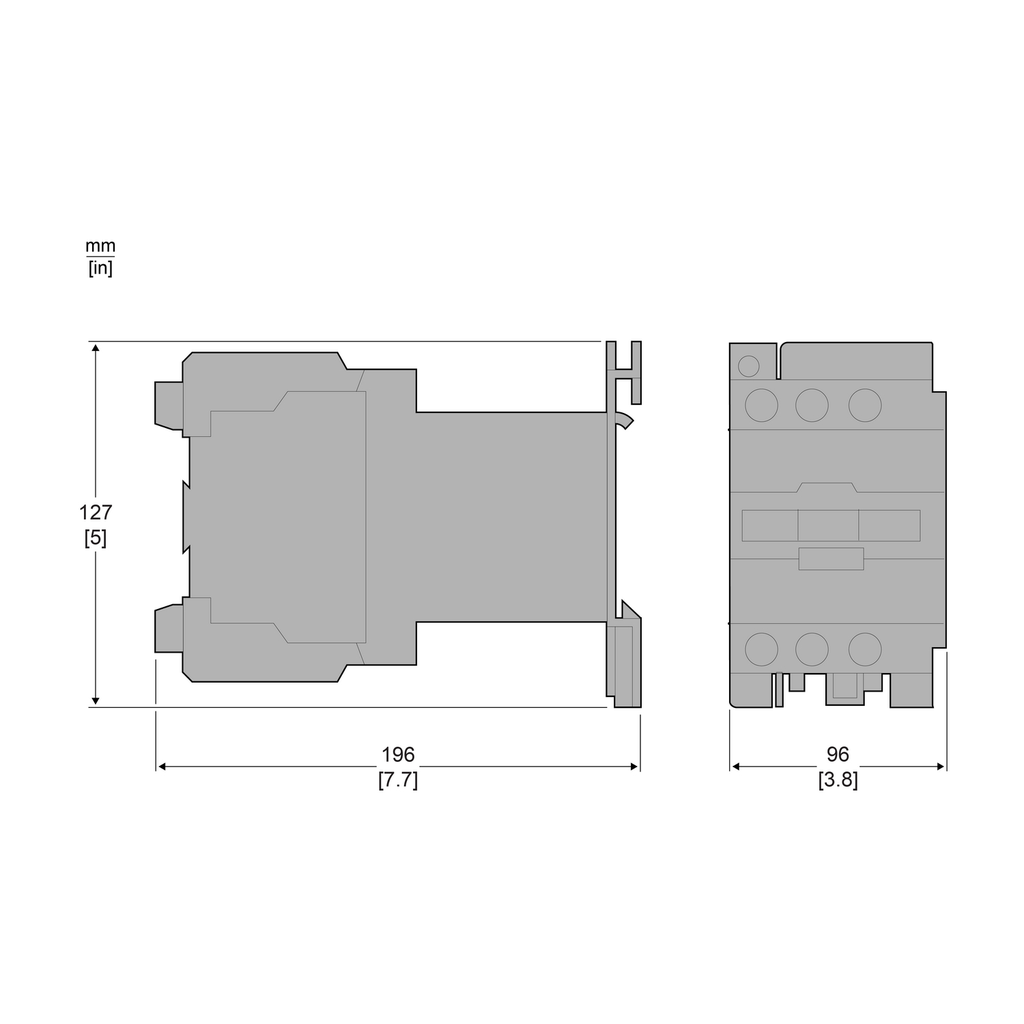

  • Depth: 196 mm
  • Height: 127 mm
  • Impedance: 0.8 MOhm - Ith 125 A 50 Hz Power Circuit
  • Net Weight: 2.91 kg
  • Standard: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • Storage Temperature: -60-80 °C
  • Warranty Length: 18 mth
  • Width: 96 mm
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 125A resistive load rating. Contactor is supplied with a 24 VDC coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.78 inches wide and 7.72 inches deep. It weighs 6.42 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
  • Product Description
  • Specifications
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 125A resistive load rating. Contactor is supplied with a 24 VDC coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.78 inches wide and 7.72 inches deep. It weighs 6.42 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • Environmental Disclosure : ENVPEP110205EN
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Mercury Free : Yes
    • Reach Free Of Svhc : Yes
    • Pvc Free : Yes
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Compliant
  • Complementary
    • Inrush Power In W : 22-22 W 20 °C
    • Hold-In Power Consumption In W : 22-22 W 20 °C
    • Control Circuit Voltage Limits : 0.1...0.3 Uc -40-70 °C drop-out DC || 0.85...1.1 Uc -40-55 °C operational DC || 1...1.1 Uc 55-70 °C operational DC
    • Coil Technology : without built-in suppressor module
    • Time Constant : 75 ms
  • Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Maximum Operating Rate : 3600 cyc/h 60 °C
  • Product Certifications : BV || CCC || CSA || DNV || EAC || GL || LROS (Lloyds register of shipping) || UL || UKCA
  • Electrical Durability : 0.8 Mcycles 125 A AC-1 <= 440 V
  • Product Or Component Type : contactor
  • [Icw] Rated Short-Time Withstand Current : 135 A 40 °C - 10 min power circuit || 320 A 40 °C - 1 min power circuit || 640 A 40 °C - 10 s power circuit || 990 A 40 °C - 1 s power circuit
  • Pole Contact Composition : 2 NO + 2 NC
  • Protective Cover : without
  • Poles Description : 4P
  • Connections - Terminals : control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid || control circuit screw clamp terminals 2 1-4 mm²solid || power circuit connector 1 4-50 mm²flexible without cable end || power circuit connector 2 4-25 mm²flexible without cable end || power circuit connector 1 4-50 mm²flexible with cable end || power circuit connector 2 4-16 mm²flexible with cable end || power circuit connector 1 4-50 mm²solid || power circuit connector 2 4-25 mm²solid || control circuit screw clamp terminals 1 1-2.5 mm²flexible with cable end
  • [Ith] Conventional Free Air Thermal Current : 125 A 60 °C power circuit
  • Standards : CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
  • Product Name : TeSys D
  • [Uc] Control Circuit Voltage : 24 V DC
  • Operating Time : 6...20 ms opening || 20...35 ms closing
  • Device Short Name : LP1D
  • [Ui] Rated Insulation Voltage : power circuit 600 V CSA || power circuit 600 V UL || power circuit 1000 V IEC 60947-4-1
  • [Uimp] Rated Impulse Withstand Voltage : 8 kV IEC 60947
  • [Ie] Rated Operational Current : 125 A 60 °C) <= 440 V AC AC-1 power circuit
  • Overvoltage Category : III
  • Associated Fuse Rating : 200 A gG <= 690 V type 1 power circuit || 160 A gG <= 690 V type 2 power circuit
  • Mechanical Durability : 4 Mcycles
  • Range : TeSys
  • Tightening Torque : control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector flat Ø 6 to Ø 8 mm || power circuit 12 N.m connector hexagonal 4 mm
  • Average Impedance : 0.8 mOhm - Ith 125 A 50 Hz power circuit
  • Mounting Support : plate || rail
  • Utilisation Category : AC-1
  • Rated Breaking Capacity : 1100 A 440 V power circuit IEC 60947
  • Power Dissipation Per Pole : 12.5 W AC-1
  • [Ue] Rated Operational Voltage : power circuit <= 1000 V AC 25...400 Hz || power circuit <= 300 V DC
  • Irms Rated Making Capacity : 1100 A 440 V power circuit IEC 60947
  • Contactor Application : resistive load
  • Coil Type : DC standard
  • Contractual warranty
    • Warranty : 18 months
  • Environment
    • Protective Treatment : TH IEC 60068-2-30
    • Net Weight : 2.91 kg
    • Height : 127 mm
    • Ambient Air Temperature For Storage : -60-80 °C
    • Depth : 196 mm
    • Flame Retardance : V1 conforming to UL 94
    • Width : 96 mm
    • Ip Degree Of Protection : IP20 front face IEC 60529
    • Ambient Air Temperature For Operation : -40-60 °C || 60-70 °C with derating
    • Pollution Degree : 3
    • Fire Resistance : 850 °C IEC 60695-2-1
    • Mechanical Robustness : vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed3 Gn, 5...300 Hz || shocks contactor open8 Gn for 11 ms || shocks contactor closed10 Gn for 11 ms
    • Operating Altitude : 0...9842.52 ft (0...3000 m)
