SQUARE D

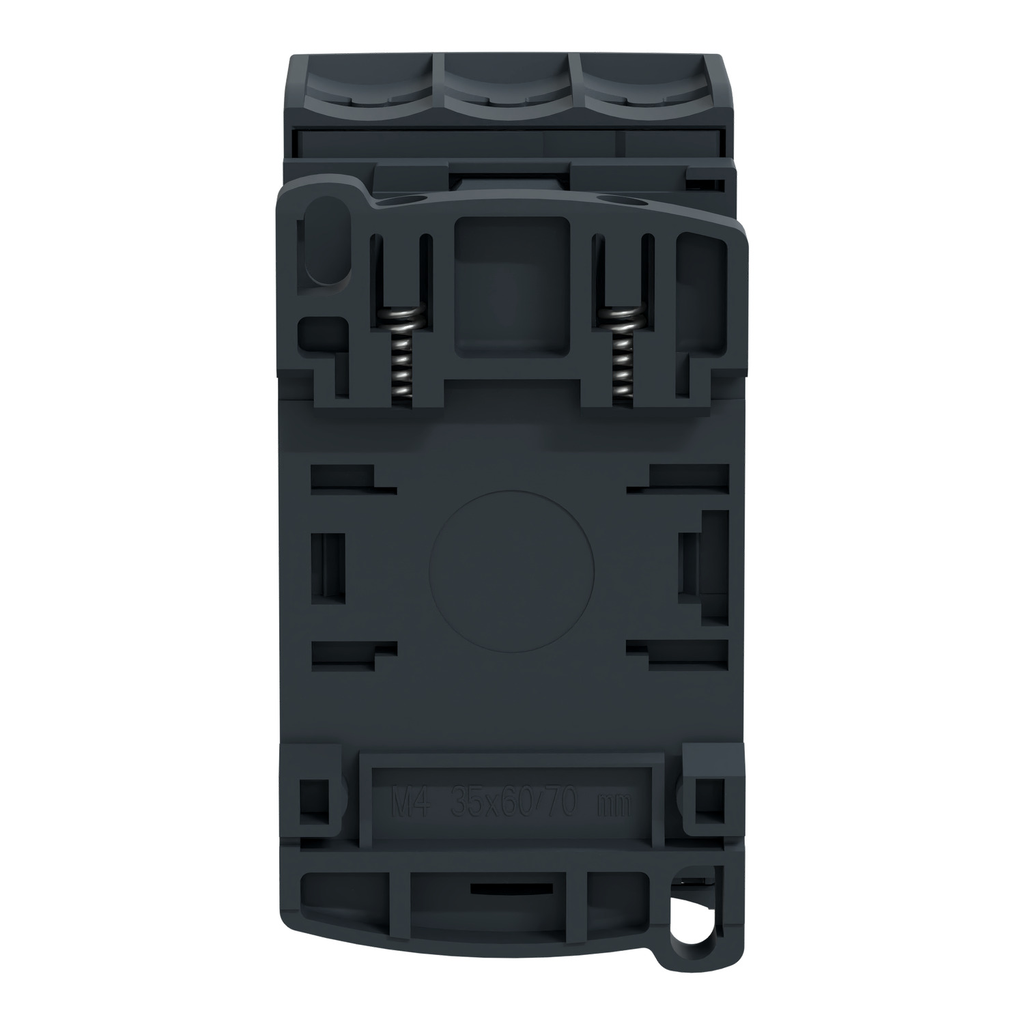

IEC contactor, TeSys Deca Advanced, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil, open

IEC contactor, TeSys Deca Advanced, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil, open

SQDLC1D32KUE LC1D32KUE 3606480987779
321.67 / EA
http://schema.org/OutOfStock
Mayer-DDS-IEC contactor, TeSys Deca Advanced, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil, open-2
  • Warranty Length: 18 mth
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). They can be used to create motor starters for almost any type of application. It provides a low sealed consumption 100-250V AC/DC coil with electronic
QTY
  • Product Description
  • Features
  • Specifications
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). They can be used to create motor starters for almost any type of application. It provides a low sealed consumption 100-250V AC/DC coil with electronic
  • Insulation Resistance
    • > 10 MOhm for signalling circuit
  • Heat Dissipation
    • 1.1-1.1 W at 50/60 Hz
  • Inrush Power In VA
    • 25-25 VA 50/60 Hz (at 20 °C)
  • Connections Terminals
    • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
    • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffne
  • IE Rated Operational Current
    • 32 A (at <60 °C) at <= 440 V AC-3 for power circuit
    • 32 A (at <60 °C) at <= 440 V AC-3 for power ci
  • ITH Conventional Free Air Thermal Current
    • 10 A (at 60 °C) for signalling circuit
    • 50 A (at 60 °C) for power circuit
  • IP Degree Of Protection
    • IP20 front face IEC 60529
  • Climatic Withstand
    • IACS E10 exposure to damp heat
    • IEC 60947-1 Annex Q category D exposure to damp heat
  • Power Dissipation Per Pole
    • 2 W AC-3
    • 5 W AC-1
    • 2 W AC-3e
  • Maximum Operating Rate
    • 3600 cyc/h at 60 °C
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.04851940032479071
  • Non Overlap Time
    • 1.5 ms on de-energisation between NC and NO contact
    • 1.5 ms on energisation between NC and NO contact
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.7456193532347751
    • 0.7 kg CO2 eq.
  • Standards
    • EN/IEC 60947-4-1
    • EN/IEC 60947-5-1
    • UL 60947-4-1
    • CSA C22.2 No 60947-4-1
    • IEC 60335-1
  • Operating Time
    • 45...55 ms closing
    • 20...90 ms opening
  • Control Circuit Type
    • AC/DC 50/60 Hz AC/DC electronic
  • Minimum Switching Voltage
    • 17 V for signalling circuit
  • UC Control Circuit Voltage
    • 100...250 V AC 50/60 Hz
    • 100...250 V DC
  • ICW Rated Short Time Withstand Current
    • 100 A - 1 s for signalling circuit
    • 120 A - 500 ms for signalling circuit
    • 140 A - 100 ms for signalling circu
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 4 kg CO2 eq.
    • 3.599919475065341
  • UI Rated Insulation Voltage
    • power circuit 690 V IEC 60947-4-1
    • signalling circuit 690 V IEC 60947-1
  • Average Impedance
    • 2 mOhm - Ith 50 A 50 Hz for power circuit
  • Accessories
    • LAD9V2
    • LAD9R1V
    • LAD9R1
  • Electrical Durability
    • 2.1 Mcycles 29 A AC-3 <= 440 V
    • 0.9 Mcycles 50 A AC-1 <= 440 V
    • 2.1 Mc
  • Maximum Horse Power Rating
    • 2 hp at 115 V AC 50/60 Hz for 1 phase motors
    • 5 hp at 230/240 V AC 50/60 Hz
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Inrush Power In W
    • 18-18 W 20 °C)
  • Fire Resistance
    • 850 °C IEC 60695-2-1
  • Contactor Application
    • resistive load
    • motor control
  • Motor Power KW
    • 7.5 kW at 220...230 V AC 50 Hz (AC-3)
    • 15 kW at 380...400 V AC 50 Hz (AC-3)
    • 15 kW at 380...400 V AC 50
  • Flame Retardance
    • V1 conforming to UL 94
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 15 kg CO2 eq.
    • 15.217389473684214
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Auxiliaries
    • LADN22
    • LADN11
    • LADN20
    • LAD8N11
    • LADT2
    • LADN40
    • LAD6K10M
  • Safety Reliability Level
    • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
    • B10d = 1369863 cycles contactor with nominal load EN/ISO 13
  • Carbon Footprint Of The Distribution Phase A4
    • 0.129976270632865
    • 0.1 kg CO2 eq.
  • Tightening Torque
    • control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm
    • control circuit 1.7 N.
  • Mechanical Robustness
    • vibrations contactor open 2 Gn, 5...300 Hz)
    • vibrations contactor closed 4 Gn, 5...300 Hz)
    • vibrations contactor closed 4
  • Minimum Switching Current
    • 5 mA for signalling circuit
  • Control Circuit Voltage Limits
    • <= 0.1 Uc (-40-70 °C):drop-out AC/DC
    • 0.85...1.1 Uc (-40-60 °C):operational AC/DC
    • 0.85...1.1 Uc (-40
  • Hold In Power Consumption In W
    • 1.1-1.1 W 20 °C
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • IRMS Rated Making Capacity
    • 140 A AC for signalling circuit conforming to IEC 60947-5-1
    • 250 A DC for s
  • Associated Fuse Rating
    • 10 A gG for signalling circuit conforming to IEC 60947-5-1
    • 63 A gG at <= 690
  • Hold In Power Consumption In VA
    • 1.6-1.6 VA 50/60 Hz (at 20 °C)
  • UE Rated Operational Voltage
    • power circuit <= 690 V AC 25...400 Hz
  • Permissible Ambient Air Temperature Around The Device
    • -40-60 °C
    • 60-70 °C with derating
  • Rated Breaking Capacity
    • 550 A at 440 V for power circuit conforming to IEC 60947
  • UIMP Rated Impulse Withstand Voltage
    • 6 kV IEC 60947
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=LC1D25BNE_3D-CAD
  • Complementary Attributes
    • Maximum Motor Phase Current : 32 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • HTML Description : TeSys D contactor 3P 32A AC-3 up to 440V coil 100-250V AC/DC
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Manufacturing Carbon Footprint : 3.59991947506534
    • Distribution Carbon Footprint : 0.129976270632865
    • Installation Carbon Footprint : 4.85194003247907e-02
    • Use Carbon Footprint : 15.2173894736842
    • End Of Life Carbon Footprint : 0.745619353234775
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1609001EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1922
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Coil Technology : built-in bidirectional peak limiting
    • Compatibility Code : LC1D
    • Device Short Name : LC1D
    • Halogen Free Status : Halogen free plastic parts and cables product
    • Package Weight Lbs : 456.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : contactor
    • Range Of Product : TeSys Deca Advanced
    • Returnability : Yes
    • Signalling Circuit Frequency : 25...400 Hz
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 20 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 19.741423972941988
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1609001EN
    • Pep Verification Date : 2025-08-05
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 461
    • Functional Unit Description : Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3 NO, a control circuit voltage 250V, a power circuit voltage 690V and a ra
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 227.76
    • Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; FR
    • Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; FR
    • Recyclability Potential In : 70
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.13467278235709393
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.04086220542635913
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0005647988471995235
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0001925945963835931
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.08808800000000001
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.004965183487151658
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -1.9153365974103935
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.10285061375068973
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.03792156581928073
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0021565843643910993
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.0392162105263158
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.023556253040702094
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -2.214935879731557
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 19.63862977909149
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 3.561979458174016
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.129976270632865
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.046361778087597116
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 15.17825263157895
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.7220596406180647
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -26.293930855291936
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 19.741423972941988
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 3.599919475065341
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.129976270632865
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.04851940032479071
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 15.217389473684214
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.7456193532347751
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -28.508059500621552
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0036296559880249282
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.003598881602262843
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000001117235476
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000016189662527
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000720035789473684
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00002357239772874095
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.015715700613829153
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 3029.423382027429
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 63.30793456838809
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1.5782585749990152
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.5050289056956515
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2922.1263157894746
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 41.905844188871264
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -462.2800781527512
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 838.9819332114101
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 645.0725425127496
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.5330399394430767
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.33111601975702704
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 107.4703157894737
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 85.57491894998678
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -860.5925959115265
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000409123583656118
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000065131131124777
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000153305344849
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000128119631508
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000341229473684211
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000002481553870773
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00001249483535007623
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0015985845102110474
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00003746259540217596
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000001521982805264
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000035051270924372
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0007237578947368422
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0008369982875347328
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00003800228925947505
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 56.36977880088938
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 55.94134405465602
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.00010768506921920799
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.000573551574500592
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.4277535095896425
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1436.070001056754
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000054166217073124
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000539590070018844
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000183380592
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000001734631410575
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000254641263158
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000082644658071
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00021922179972768728
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000007216853446897
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000054226547546528
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000034328219539
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000025126900548
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000010991978947368
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000006890552854986
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00002592260303039812
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 2.671176747059972
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.017609241882387085
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.4851052631578948
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 2.1684622420196904
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 432.37586119546836
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 37.8708253711586
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0002881711495736548
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0022746712254753452
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 394.46105263157904
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.041420350355702636
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -3200.338446103512
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.01593387413389267
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.002692011411279922
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.00025954892406475843
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00005100337589876987
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.012122842105263161
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0008084683173860585
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.029496345047000445
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.3261803579851465
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.026661799104177434
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.29951855888096907
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.14383469316501266
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.09858753750930938
    • Net Use Of Fresh Water M3 Distribution A4 : 0.00015353598324957537
    • Net Use Of Fresh Water M3 Installation A5 : 0.00048236868284110625
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.025662000000000004
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.018949250989612608
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -2.111263918682009
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 3.7457475959417654
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.1224498811089343
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00013229418655844442
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.15783738941992928
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 1.4632526315789476
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.00207539964739568
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -4.169135047635496
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000093568190124511
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000057864868315286
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000011469762978809
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000321152440853
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000022388463157895
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000001523943231668
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000078778005285626
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.05058654252567743
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.010944138063943558
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0009221845807797841
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00010278861597542177
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.03590189473684211
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0027155365281365494
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.21850682068596625
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.004323437481633394
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0036588475864071865
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.00002584187959020381
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00002118644347499774
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0006146947368421054
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000286683531890074
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.002757166759436757
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.2155988842702645
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.028558799948743687
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.002812519975569997
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0003849585543666311
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.1742547368421053
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.009587868949478894
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.34666104795444536
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.137374162751952
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.137374162751952
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 3302.3236089242196
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 65.48054830161777
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1.5782585749990152
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.5412621984228685
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 3192.2526315789482
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 42.470908270231426
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -510.2067377881151
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 272.93586600457155
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.1728443716302386
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00001057315619665057
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.036236752303225234
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 270.16189473684216
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.5648795706397177
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -47.92089367535005
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.137374162751952
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.137374162751952
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3026.2866997798783
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 60.1712523208378
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1.5782585749990152
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.5050289056956515
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2922.1263157894746
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 41.905844188871264
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -462.2800781527512
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.5294535123144438
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.5294535123144438
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.47991238387519375
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 272.40643555609716
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.6434139231558502
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00001057315619665057
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.036236752303225234
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 270.16189473684216
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.5648795706397177
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -47.4411658021953
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.00001474010017948079
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00001474010017948079
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 6.177624917383044
    • Water Use M3 Eq Manufacturing A1 A3 : 4.234290395792331
    • Water Use M3 Eq Distribution A4 : 0.006594182510272811
    • Water Use M3 Eq Installation A5 : 0.02071709432986797
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 1.1021810526315792
    • Water Use M3 Eq End Of Life C1 C4 : 0.8138421921189939
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -90.68125313827822
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0
  • General Attributes
    • Product Or Component Type : contactor
    • Range Of Product : TeSys Deca Advanced
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=433143089&lang=en-us
    • Take Back : No
    • Halogene Performance : Halogen free plastic parts & cables product
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 19.741423972942
    • Circularity Profile : ENVEOLI1609001EN
    • Environmental Disclosure : ENVPEP1609001EN
    • EU ROHS Directive : Compliant with Exemptions
    • Halogen Content Performance : Halogen free plastic parts & cables product
    • Operating Altitude : 0...9842.52 ft (0...3000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1609001EN
    • Pep Verification Date : 2025-08-05
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
