SQUARE D

Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL

BREAKER-1P TANDEM 20A/20A

SQDHOMT2020 HOMT2020 785901065401
17.03 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL-2
  • Depth: 2.98 in
  • Height: 3.13 in
  • Short Circuit Current Rating: 10 kA
  • Warranty Length: Lifetime
  • Width: 1 in

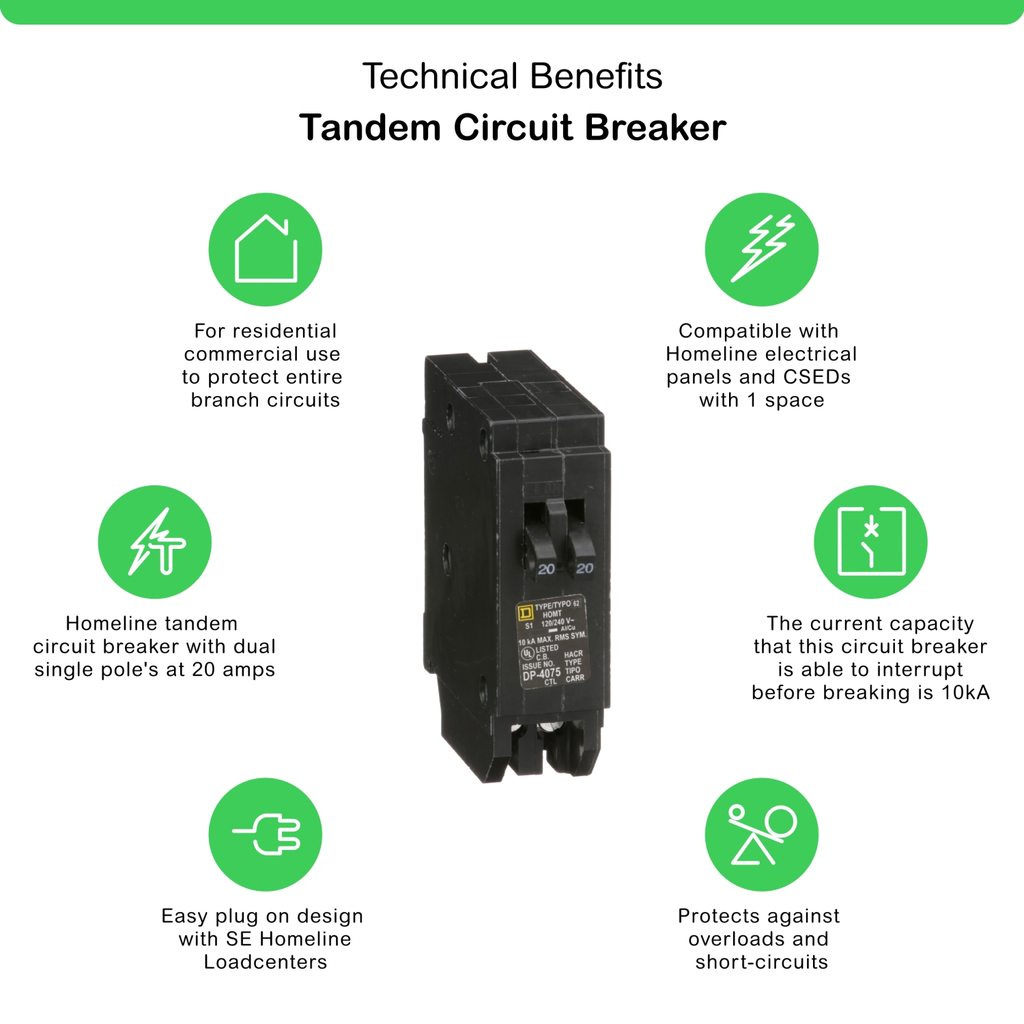

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM plug in miniature tandem breaker with plug in mounting is rated 20A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
QTY
  • Product Description
  • Specifications
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM plug in miniature tandem breaker with plug in mounting is rated 20A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
  • Environment
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : Lifetime
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308001
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 22.8178850597
  • Complementary
    • Height : 3.13 in
    • Tightening Torque : 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8)
    • Width : 1 in
    • Depth : 2.98 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 1 in
    • Height : 3.13 in
    • Product Certifications : UL Listed
    • Circuit Breaker Type : tandem
    • Range Of Product : Homeline
    • Number Of Spaces Required : 1
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Short-Circuit Current : 10 kA
    • Poles Description : 1P
    • Electrical Connection : box lugs
    • Line Rated Current : 20 A
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Awg Gauge : 1 x AWG 14...AWG 8 ( aluminium/copper )
