Tandem circuit breaker, Homeline, 1 x 1 pole at 30A, 1 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL

MINIATURE CIRCUIT BRKR 120/240

SQDHOMT3020CP HOMT3020CP 785901403852
17.03 / EA
http://schema.org/OutOfStock
Tandem circuit breaker, Homeline, 1 x 1 pole at 30A, 1 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL
  • Depth: 2.98 in
  • Height: 3.13 in
  • Short Circuit Current Rating: 10 kA
  • Width: 1 in

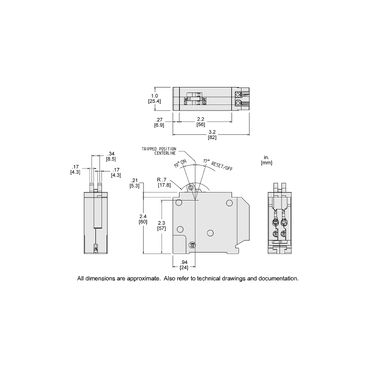

HOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM miniature tandem breaker with plug in mounting is rated 30 A and 20 A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed. This Homeline Breaker comes in consumer packaging
QTY
  • Product Description
  • Specifications
HOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM miniature tandem breaker with plug in mounting is rated 30 A and 20 A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed. This Homeline Breaker comes in consumer packaging
  • Specifications
    • Country of Origin : Mexico
    • Width : 1 in
    • Height : 3.13 in
    • Product Certifications : UL Listed
    • Circuit Breaker Type : tandem
    • Range Of Product : Homeline
    • Number Of Spaces Required : 1
    • Product Or Component Type : miniature circuit-breaker
    • Type Of Packing : consumer packaging
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Short-Circuit Current : 10 kA
    • Poles Description : 1P
    • Electrical Connection : box lugs
    • Line Rated Current : 30 A || 20 A
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Awg Gauge : 1 x AWG 14...AWG 8 ( aluminium/copper )
  • Complementary
    • Height : 3.13 in
    • Tightening Torque : 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8)
    • Width : 1 in
    • Depth : 2.98 in
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 23 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 22.7756365743
  • Environment
    • Ambient Air Temperature For Operation : 40 °C
