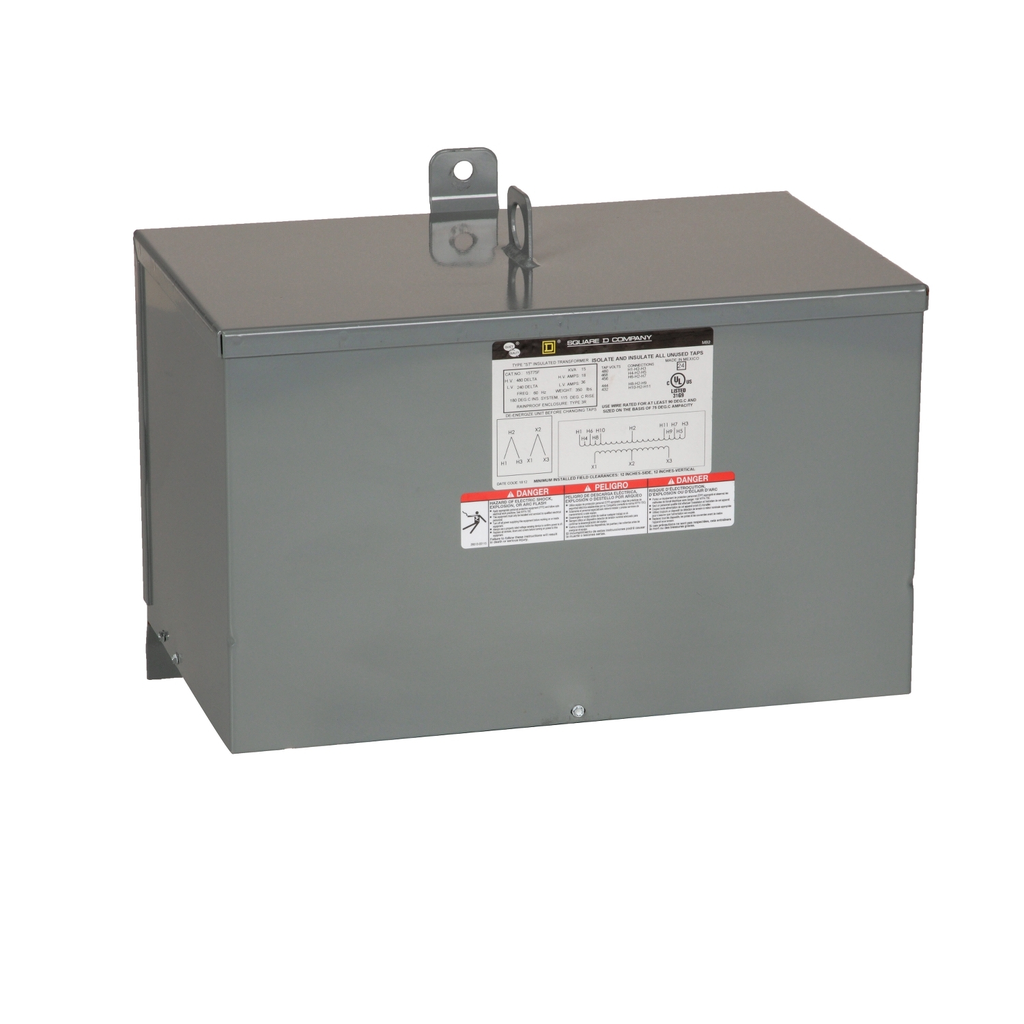

Transformer, dry type, encapsulated, 9kVA, 3 phase, 480V primary, 208Y/120V secondary, 14C, 115C rise [TAA]

TRANSFORMER - 9KVA 480/208

SQD9T2F 9T2F 785901359494
3930.79 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Transformer, dry type, encapsulated, 9kVA, 3 phase, 480V primary, 208Y/120V secondary, 14C, 115C rise [TAA]-2
  • Country of Origin: Mexico
  • Depth: 12.25 in
  • Enclosure Material: Painted Sheet Steel
  • Height: 14.75 in
  • Temperature Rise: 115 °C
  • Warranty Length: 18 mth
  • Width: 19.1 in
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use in
QTY
  • Product Description
  • Features
  • Specifications
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use in
  • Product Certifications
    • UL Listed
    • CSA
    • cULus
  • Number Of Tap Offs
    • 2 5 % FCBN
  • Primary Voltage
    • 480 V delta 208Y/120 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In Va : 9 kVA
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Resin filled transformers are epoxy encoapsulated
    • B2B Bullet Point 2 : Individual enclosures from 50VA through 5kVA
    • B2B Bullet Point 3 : For three phase applications
    • B2B Bullet Point 4 : Can be configured into autotransformer
    • B2B Bullet Point 5 : UL Listed
    • B2B Bullet Point 6 : This product is TAA compliant.
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-05-31
    • Html Descr : Dry Sealed TransformerPhase : 3 PHPrimary to Secondary Voltage : 480 V delta
    • Manufacturer : Schneider Electric
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PSIBS
    • Average Life Duration : 25 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1909
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : A - SELECTED - PCE ONLY (Migration)
    • Box Number : 14C
    • Enclosure Material : painted sheet steel
    • Enclosure Mounting : wall mounted
    • Insulation Temperature : 180 °C
    • Package Weight Lbs : 127.006 kg
    • Phase : 3 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Dry Sealed Transformer
    • Returnability : Yes
    • Sustainable Packaging : No
    • Temperature Rise : 115 °C
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : Dry Sealed Transformer
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=456331&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407010
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 14.75 in
    • Width : 19.1 in
    • Compliance : TAA
    • Depth : 12.25 in
