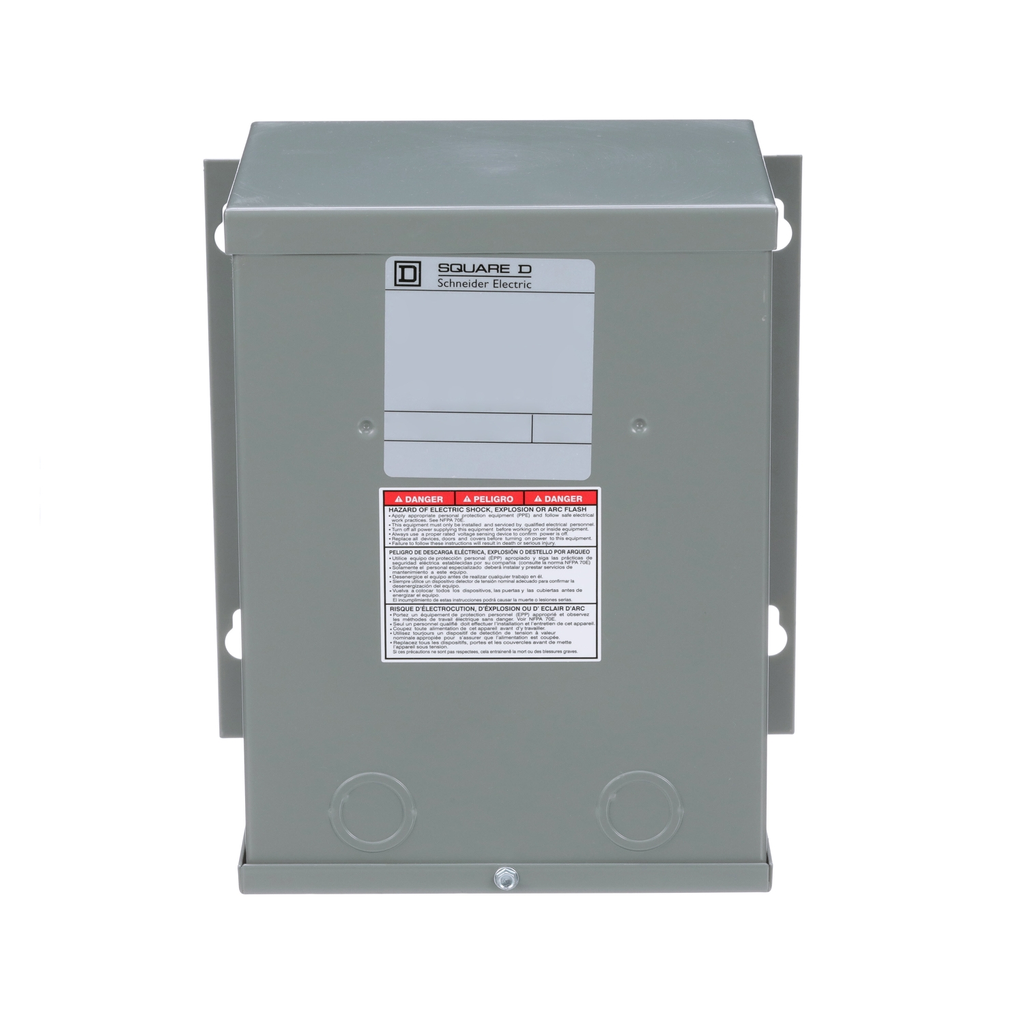

Transformer, buck boost, encapsulated, 2kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 115C rise

TRANSFORMER DRY 1PH 2KVA 240X4

SQD2S82F 2S82F 785901993506
2313.01 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Transformer, buck boost, encapsulated, 2kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 115C rise-2
  • Primary Voltage: 240 V, 480 V
  • Warranty Length: 18 mth
A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed. This Buck and Boost Transformer is a 1 phase, and has a NEMA 3R enclosure rating. This transformer has a primary voltage of 240 x 480 V and a secondary voltage of 24/48 V. This product have a temperature rise of 115 °C. Dimensions for this product are 243 mm (H), 220 mm (W), 167 mm(D), and a weight of 39.1 lb(US).
QTY
  • Product Description
  • Features
  • Specifications
A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed. This Buck and Boost Transformer is a 1 phase, and has a NEMA 3R enclosure rating. This transformer has a primary voltage of 240 x 480 V and a secondary voltage of 24/48 V. This product have a temperature rise of 115 °C. Dimensions for this product are 243 mm (H), 220 mm (W), 167 mm(D), and a weight of 39.1 lb(US).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In VA : 2 kVA
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 25 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Box Number : 9A
    • Insulation Temperature : 180 °C
    • Package Weight Lbs : 22.453 kg
    • Primary Voltage : 240 x 480 V
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Buck and Boost Transformer
    • Returnability : Yes
    • Secondary Voltage : 24/48 V
    • Sustainable Packaging : No
    • Temperature Rise : 115 °C
    • Pep Code : ENVPEP1407010EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407010EN
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1407010EN
  • General Attributes
    • Product Or Component Type : Buck and Boost Transformer
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
