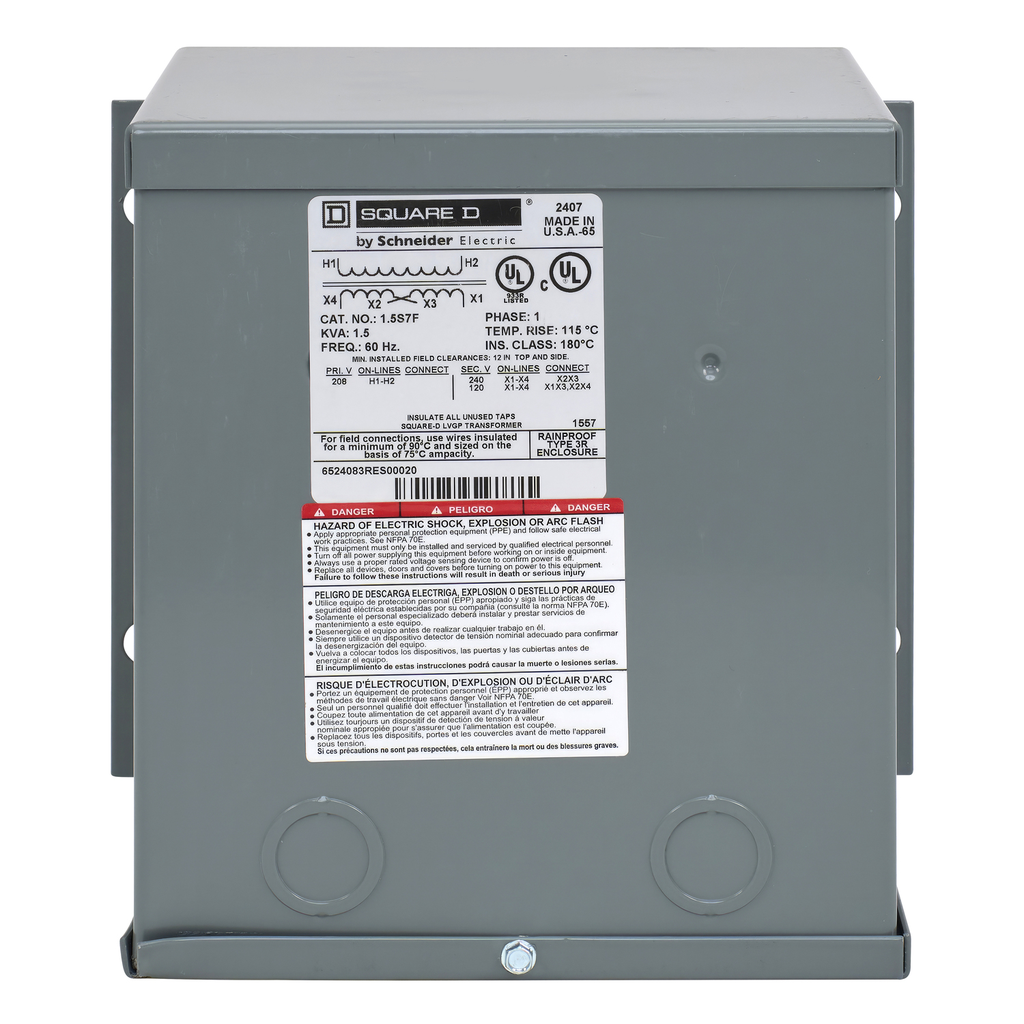

Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 208V primary, 120/240V secondary, 8A, 115C rise [TAA]

TRANSFORMER DRY 1PH 1.5KVA 208

SQD1.5S7F 1.5S7F 785901313212
2792.52 / EA
http://schema.org/OutOfStock
Mayer-DDS-Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 208V primary, 120/240V secondary, 8A, 115C rise [TAA]-2
  • Country of Origin: USA
  • Depth: 6.56 in
  • Enclosure Material: Painted Sheet Steel
  • Height: 8.25 in
  • Temperature Rise: 115 °C
  • Warranty Length: 18 mth
  • Width: 8.68 in
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use in
QTY
  • Product Description
  • Features
  • Specifications
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use in
  • Product Certifications
    • CSA
    • cULus
    • UL Listed
  • Primary Voltage
    • 208 V 120/240 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In Va : 1.5 kVA
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Resin filled transformers are epoxy encoapsulated
    • B2B Bullet Point 2 : Individual enclosures from 50VA through 5kVA
    • B2B Bullet Point 3 : For three phase applications
    • B2B Bullet Point 4 : Can be configured into autotransformer
    • B2B Bullet Point 5 : UL Listed
    • B2B Bullet Point 6 : This product is TAA compliant.
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-05-30
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PSIBS
    • Average Life Duration : 25 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1909
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Box Number : 8A
    • Enclosure Material : painted sheet steel
    • Enclosure Mounting : wall mounted
    • Insulation Temperature : 180 °C
    • Number Of Tap Offs : 0
    • Package Weight Lbs : 13.608 kg
    • Phase : 1 phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Dry Sealed Transformer
    • Returnability : No
    • Sustainable Packaging : No
    • Temperature Rise : 115 °C
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Dry Sealed Transformer
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=455127&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407010
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Height : 8.25 in
    • Width : 8.68 in
    • Compliance : TAA
    • Depth : 6.56 in
