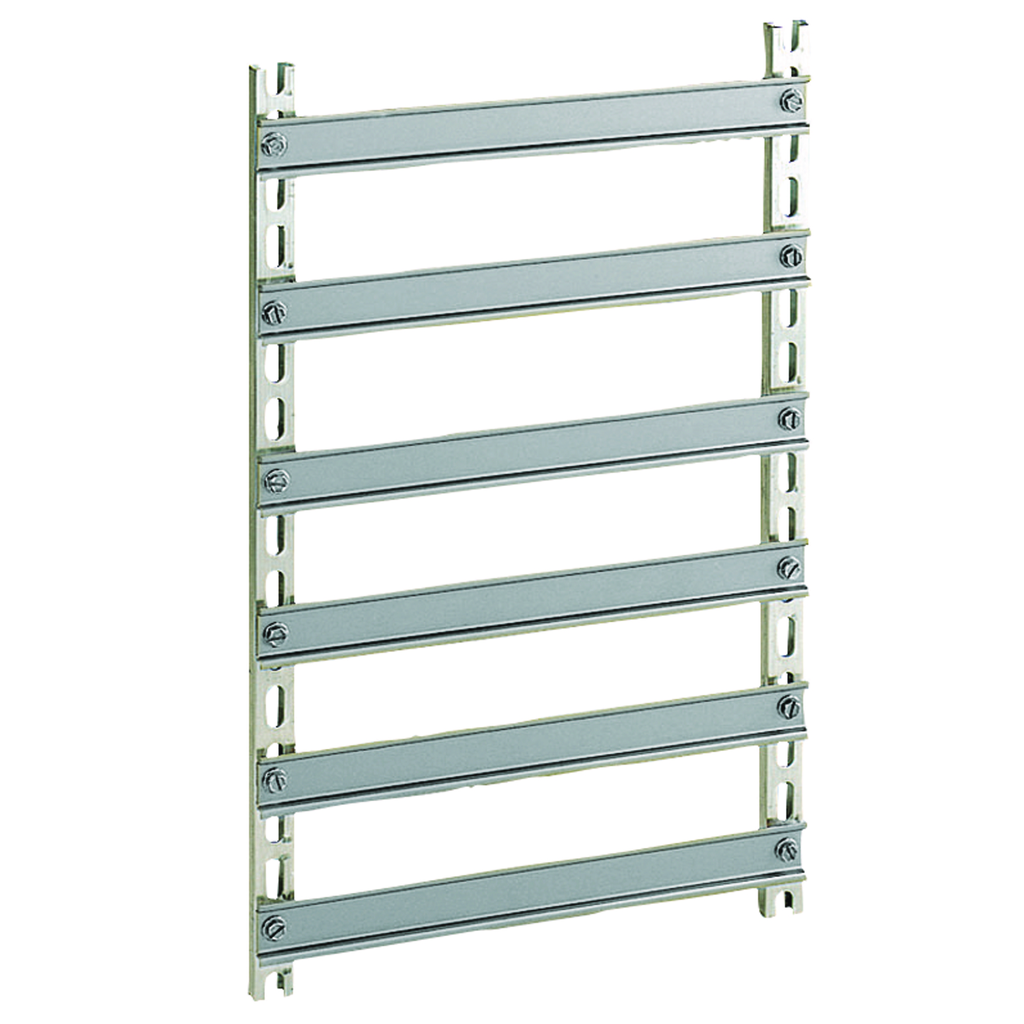

Symmetrical mounting chassis for enclosures (S3D, S3X, PLM, CRN). (6 rails) 800 x 600 mm. Vertical aluminium rails and 6 cross rails (symmetrical DIN). 2 uprights. Steel for rail, aluminum for uprights.

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Enclosure Nominal Dimensions : -, -
• Fixing Mode : screwed on backstuds, by fixing element
• Mounting Support : step slide, spacer, direct fixing on backstuds
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-11
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1916
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Adjustment : on step slides, type NSYSDCR…, pitch 12.5 mm
• Device Application : multi-purpose
• Device Composition : fixing elements6 DIN rail2 upright
• Energy Efficiency Optimized : False
• Material : uprights aluminiumrail steel
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : chassis
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Type Of Rail : symmetrical DIN
• Pep Code : ENVPEP1001004EN
• Height Nominal : real: 739.3 mm
• Height Useful : nominal: 800 mm
• Width Nominal : nominal: 600 mm
• Width Real : real: 550 mm
• Accessory / Separate Part Category : mounting accessory
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 2.854 kg
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 7326908688
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1001004EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1001004EN
• General Attributes
• Product Or Component Type : chassis
• ETIM
• ETIM 8 : EC002620
• ETIM 9 : EC002620
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Height : 31.5 in
• Width : 21.65 in
