Symmetrical DIN rail, H35xD7.5 mm Length: 214 mm, for boxes of 225 mm (Internal)

SYMMETRICAL RAIL COIB35/241

SQDNSYAMRD24357TB NSYAMRD24357TB 3606480166259
5.09 / EA
http://schema.org/OutOfStock
Mayer-DDS-Symmetrical DIN rail, H35xD7.5 mm Length: 214 mm, for boxes of 225 mm (Internal)-2
  • Country of Origin: France
  • Height: 1.38 in
  • Length: 8.86 in
  • Material: Steel
  • Warranty Length: 18 mth
  • Width: 0.3 in

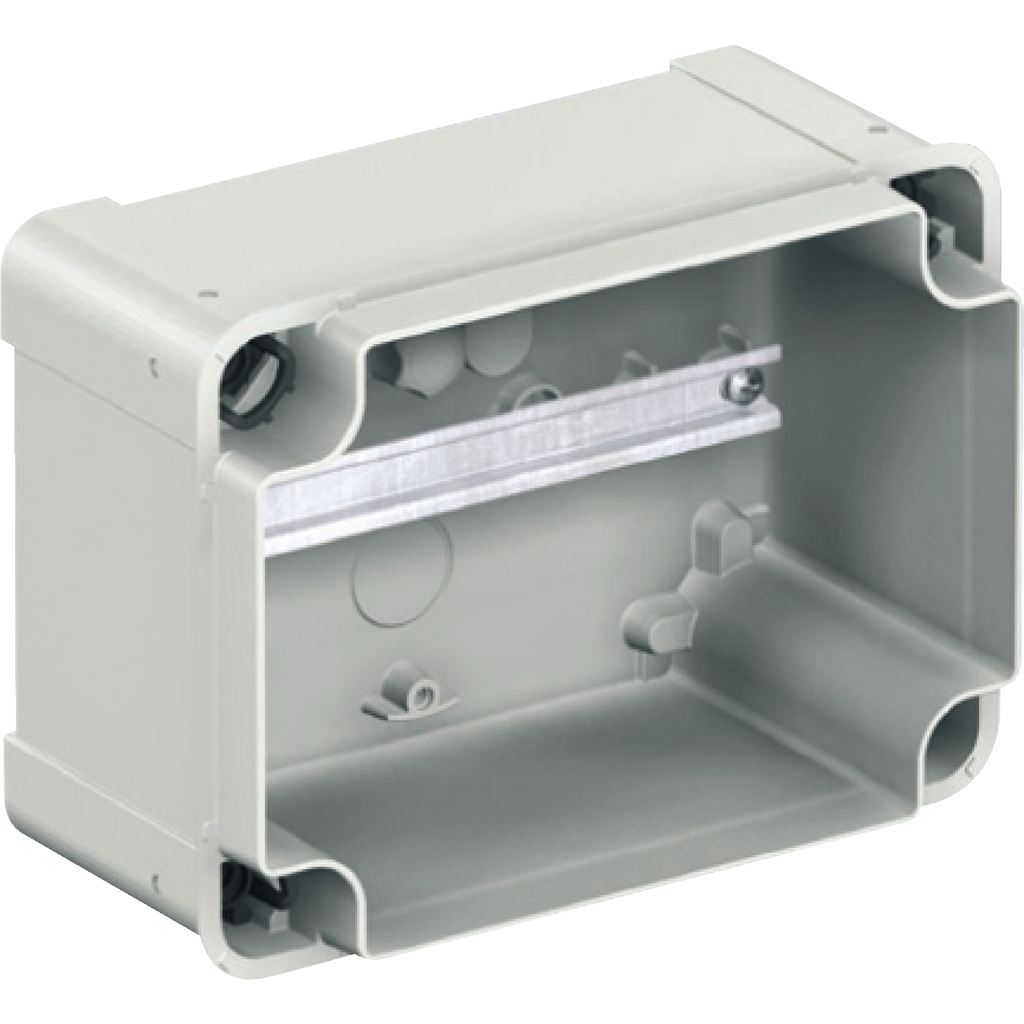

Set of 10 symmetrical DIN rails for boxes to be used in PanelSeT TBS and PanelSeT TBP enclosures. The rail is made from zinc coated 1mm steel and is widely used for mounting circuit breakers and industrial control. The width is 7.5mm and height is 35mm. The product real length is 214mm and internal box height or width is 225mm. The rail is used to maintain complex control circuits in applications such as energy management, power supplies and lighting controllers. Supplied without screws. Net weight is 0.072kg.
QTY
  • Product Description
  • Features
  • Specifications
Set of 10 symmetrical DIN rails for boxes to be used in PanelSeT TBS and PanelSeT TBP enclosures. The rail is made from zinc coated 1mm steel and is widely used for mounting circuit breakers and industrial control. The width is 7.5mm and height is 35mm. The product real length is 214mm and internal box height or width is 225mm. The rail is used to maintain complex control circuits in applications such as energy management, power supplies and lighting controllers. Supplied without screws. Net weight is 0.072kg.
