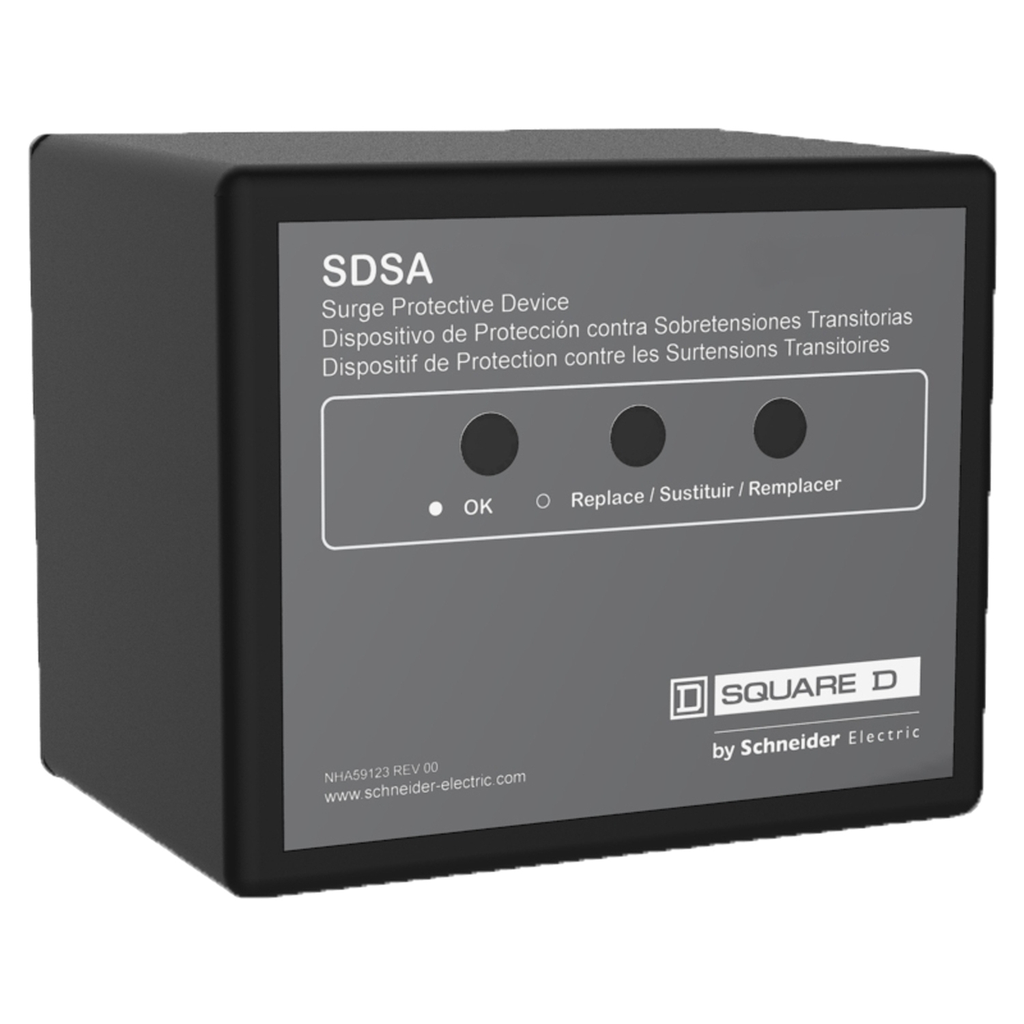

Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. Equipped with LED status signal light for convenient use. SPD are three phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 4 wire 600Y/377VAC three phase systems. Securing up to 50kA surge current per phase. This surge protection device is UL Listed.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cable Length : 24 in
• Complementary Attributes
• Uc Maximum Continuous Operating Voltage : 510 V
• Ue Rated Operational Voltage : 600Y/347 V AC
• Important Information Attributes
• Persona Type Ids : EU, EUA, LC, OM, SC
• Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
• Certificate Agency : UL 1449:ed. 4: type I, NEC 285: type I, CSA C22.2 No 8
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• H And D Domain : Safety
• H And D Subrange : SPD NEMA
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : SPD
• H And D Enrichment Class 3 : Surge protection devices
• H And D Enrichment Class 4 : SPD Type 1
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 10 year(s)
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2534
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Enclosure Material : Black Plastic
• Energy Efficiency Optimized : False
• Local Signalling : status LED green normal operation
• Nominal Discharge Current : 10 kA
• Phase : 3 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Returnability : Yes
• Short Circuit Protection : 200 kA
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Wiring Configuration : 4-wire
• Warranty In Months : 18
• Offer Owner Code : 190788
• Pn : 1

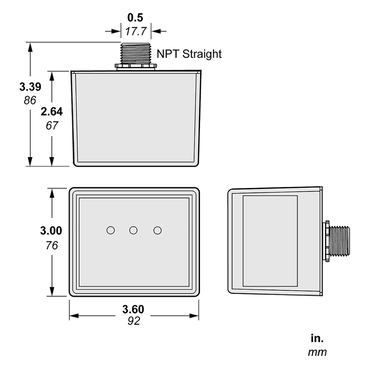

• Height Nominal : 3 in
• Width Nominal : 3.6 in
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 65-65 °C
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : NEMA 4X
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Phase : 3 phase
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• ETIM
• ETIM 8 : EC000941
• ETIM 9 : EC000941
• Surge Protection And Filtering Attributes
• Surge Current : 40 kA per phase
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France, Mexico, United States, ZZ
• Depth : 3.4 in
