Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 2 wire 120VAC single phase systems. Securing up to 36kA surge current per phase. This surge protection device is UL Listed.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cable Length : 24 in
• Conformance Attributes
• Standards : CSA C22.2 No 8, UL 1449:ed. 4
• Complementary Attributes
• Uc Maximum Continuous Operating Voltage : 150 V
• Ue Rated Operational Voltage : 120 V AC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer
• Carbon Footprint Of The Distribution Phase A4 : 0.14070892111218014, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.7 kg CO2 eq., 0.6526401964752823
• Carbon Footprint Of The Installation Phase A5 : 0.003614091363935201, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 2.205158340025761
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 236 kg CO2 eq., 235.6685386818315
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• H And D Domain : Safety
• H And D Subrange : SPD NEMA
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : SPD
• H And D Enrichment Class 3 : Surge protection devices
• H And D Enrichment Class 4 : SPD Type 1
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 10 year(s)
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2510004EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2531
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Enclosure Material : Black Plastic
• Energy Efficiency Optimized : False
• Local Signalling : status LED
• Nominal Discharge Current : 10 kA
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Returnability : Yes
• Short Circuit Protection : 25 kA
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 239 kg CO2 eq.
• Wiring Configuration : 3-wire
• Connections Terminals : wire
• Warranty In Months : 18
• Pep Code : ENVPEP2510004EN
• Database Version : 2024-01
• Pep Verification Date : 2025-10-27
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Product Weight In G2 : 294.835
• Reference Lifetime In Y2 : 20
• Energy Consumption On Product Lifetime In Kwh : 525.6
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Mexico, MX
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Recyclability Potential In 2 : 9
• Offer Owner Code : 190788

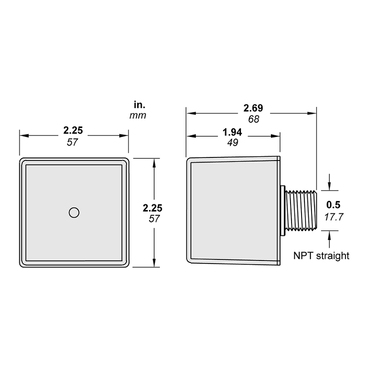

• Height Nominal : 2.25 in
• Width Nominal : 2.25 in
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 238.67066023080866
• Circularity Profile : ENVEOLI2510004EN
• Environmental Disclosure : ENVPEP2510004EN
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : NEMA 4X
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2510004EN
• Pep Verification Date : 2025-10-27
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Phase : 1 phase
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Surge Protection And Filtering Attributes
• Surge Current : 36 kA
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico, United States
• Depth : 1.935 in
